Запчасти Case IH 55 (H-05) - ROD WEEDER MAIN DRIVE

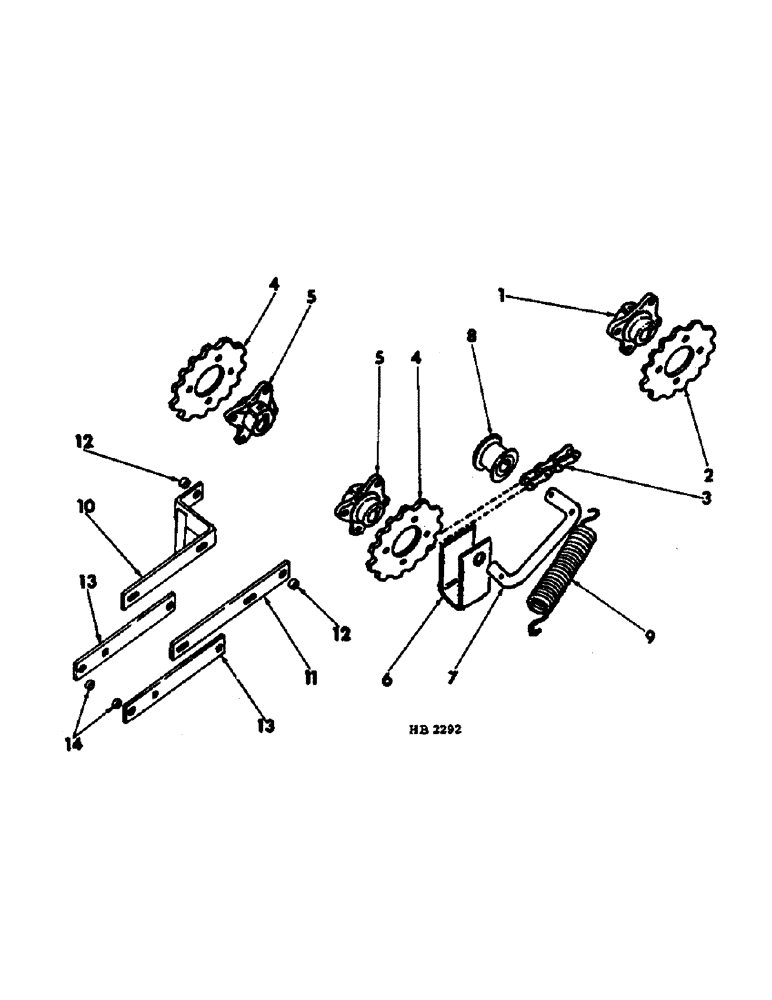

Схема запчастей Case IH 55 - (H-05) - ROD WEEDER MAIN DRIVE

Артикул

Название

Примечание

Количество

1

594722R1

HUB, sprocket

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 sq x 2-1/8 parallel

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

1шт.

2

605197R1

SPROCKET ASSY.

SPROCKET, main driven 13T

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

3

CHAIN ASSY, main drive, for service order 2-569089R91, 10 foot lengths of 1-1/4 pitch agricultural chain, reduce to 113 links, add 1-456929R91, offset link and 1-456980R91, connecting link

1шт.

4

605197R1

SPROCKET ASSY.

SPROCKET, ground drive

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

8шт.

271501

SOCKET

NUT, 7/16-14 hex

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

5

594722R1

HUB, ground drive sprocket

2шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

1/4 sq x 2-1/8 parallel

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

2шт.

6

812056C1

CHANNEL, main drive chain tightener, August, 1970 season and since

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2-13 x 1-3/4 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

812053C1

ROD, chain tightener, August, 1970 season and since

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

178374R1

WASHER

.531 x 1.250 x .054

4шт.

8

603118R1

ROLLER

chain tightener, August, 1970 season and since

1шт.

9

4A

SPRING

chain tightener, August, 1970 season and since

1шт.

10

594724R11

SUPPORT ASSY, main drive chain LH

1шт.

11

594726R1

BAR, main drive chain RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/8-11 x 2-1/2 carriage

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21782R1

WASHER

.656 x 1.500 x .054

2шт.

12

596622R1

SPACER, support

2шт.

13

594727R1

BAR, adjustable inner chain

2шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

607895R1

WASHER

.531 x 1.000 x .105

3шт.

14

597216R1

SPACER, inner bar

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Выбрано товаров: 40
