Запчасти Case IH 55 (H-04) - ROD WEEDER DRIVE WHEEL AND MOUNTING

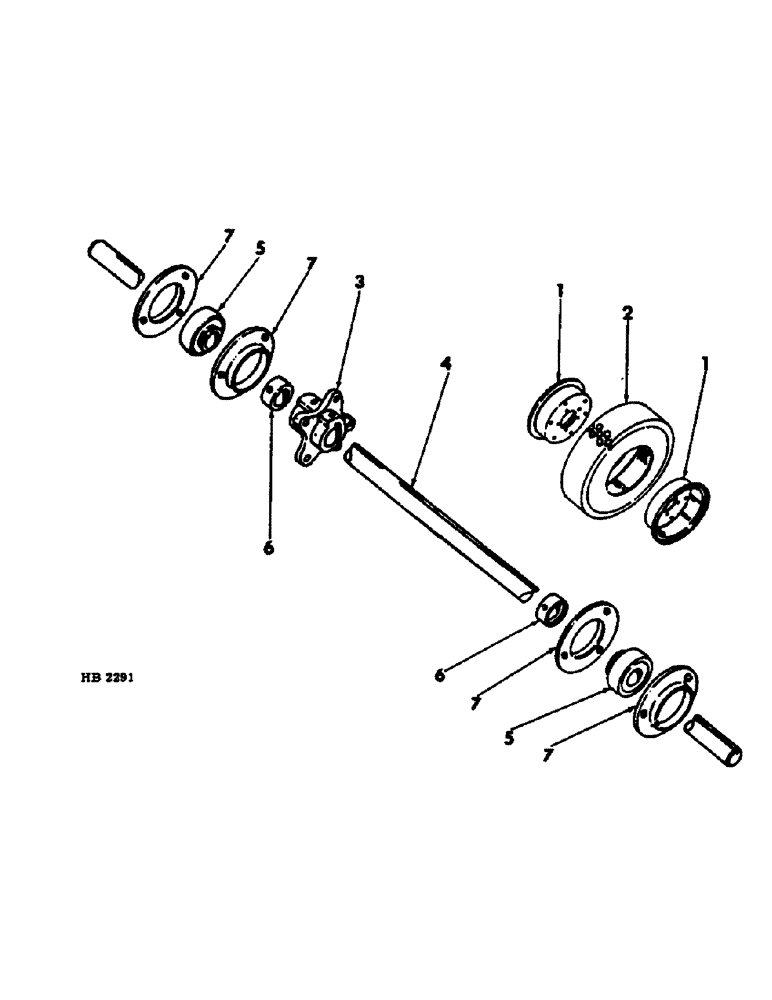

Схема запчастей Case IH 55 - (H-04) - ROD WEEDER DRIVE WHEEL AND MOUNTING

Артикул

Название

Примечание

Количество

1

465234R1

WHEEL

drive half

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, wheel halves together

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd, wheel halves to hub

5шт.

120377

NUT,3/8" - 16, Gr 5

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

2

TIRE & TUBE, 4.80/4.00-8 2 ply power tread industrial tire

1шт.

3

594721R1

HUB, drive wheel

1шт.

T14185

KEY, 1/4 sq x 2-3/4 parallel 1/4" Sq x 2 3/4", Par

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

2шт.

4

594720R1

AXLE, drive wheel

1шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

drive wheel axle

2шт.

6

455102R21

COLLAR

ASSY, bearing locking, includes 1-102592, screw

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 pln c/pt hdl/hs set

2шт.

7

462360R1

FLANGED BEARING

TTE, bearing

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

Выбрано товаров: 17
