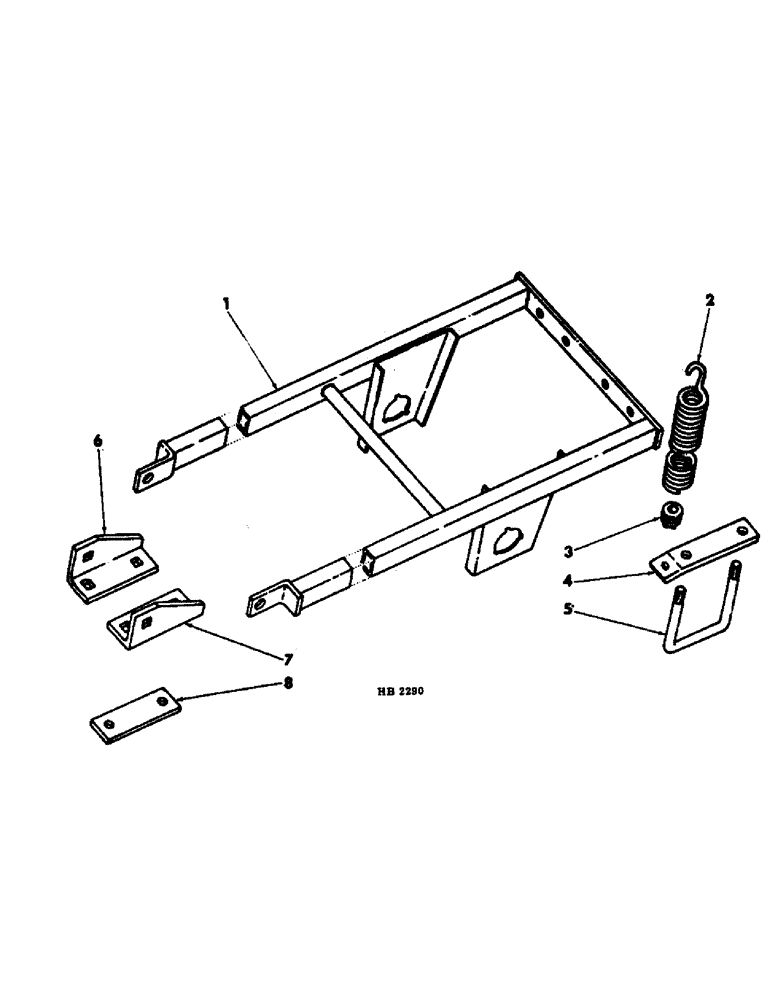

Запчасти Case IH 55 (H-03) - ROD WEEDER DRIVE WHEEL FRAME

1

594709R91

FRAME ASSY, drive wheel support

1шт.

2

612435R2

SPRING

front tension

2шт.

3

PO2315

PLUG

front tension spring

2шт.

Q990

BOLT, 1/2-13 x 3-1/2 special

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 hex jam

2шт.

4

594716R1

SUPPORT, front tension spring

2шт.

5

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

support clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

594717R1

ANGLE, rear pivot support LH

1шт.

7

594718R1

ANGLE, rear pivot support RH

1шт.

18728R1

BOLT, 5/8-11 x 6 crg Short NK, 5/8"-11 x 6", G2

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

594719R1

BAR, support angle clamping

2шт.
