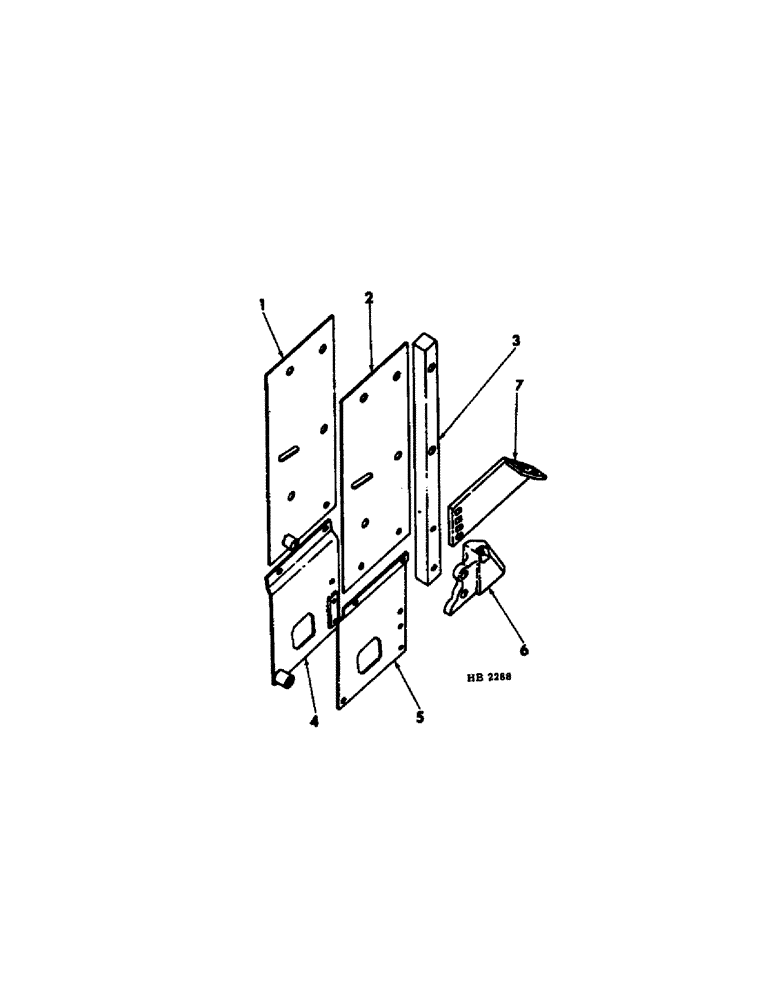

Запчасти Case IH 55 (H-02) - ROD WEEDER BOOT FRAME

1

594737R21

PLATE ASSY, boot upper LH

1шт.

2

594737R2

BAR, upper side RH

1шт.

3

608630R1

BAR

boot

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

812045C1

PLATE ASSY, boot lower side LH

1шт.

5

812046C1

PLATE ASSY, boot lower side RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

6шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16-14 x 1-1/4 hex-hd

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 external tooth lock

1шт.

6

812052C1

NOSE, boot

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16-14 x 1-1/2 hex-hd

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 external tooth lock

2шт.

7

594739R91

BRACE ASSY, boot connecting

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2-13 x 2 carriage

1шт.

19064R1

BOLT,1/2"-13 x 2 1/2", G2

1/2-13 x 2-1/2 no. 3 plow

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.
