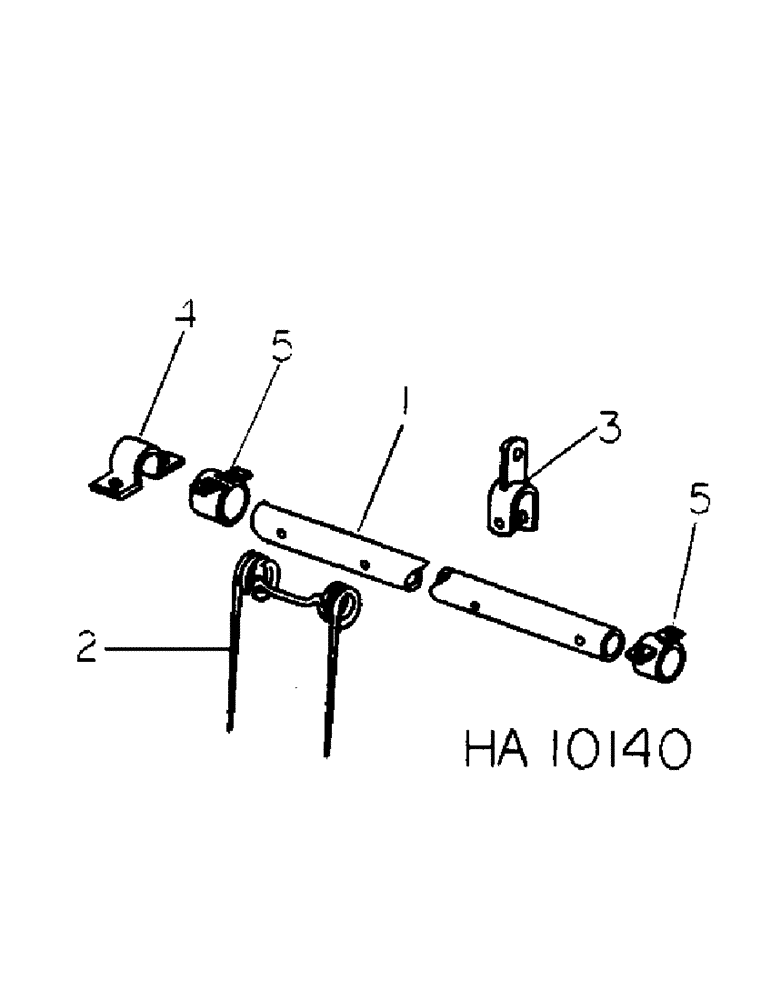

Запчасти Case IH 55 (G-06[A]) - MULCHER OPTIONAL
№
Артикул
Название
Примечание
Количество
1
485604R1
TUBE
BAR, 2nd tooth, machine w/4 ft 9 in mulcher
1шт.
1
485605R1
TUBE
BAR, 2nd tooth, machine w/6 ft mulcher
1шт.
1
490552R1
TUBE
BAR, 2nd tooth, machine w/7 ft 3 in mulcher
1шт.
1
813030C1
TUBE,1.66" OD, 113.875" Length
2nd tooth bar, machine w/9 ft 9 in mulcher
1шт.
1
813031C1
TUBE, 2nd tooth bar, machine w/12 ft 3 in mulcher 1.66" OD, 143.875" Length
1шт.
1
813032C1
TUBE,1.66" OD, 173.875" Length
2nd tooth bar, machine w/14 ft 9 in mulcher
1шт.
2
72901C1
TOOTH
machine w/4 ft 9 in mulcher
4шт.
2
72901C1
TOOTH
machine w/6 ft mulcher
5шт.
2
72901C1
TOOTH
machine w/7 ft 3 in mulcher
6шт.
2
72901C1
TOOTH
machine w/9 ft 9 in mulcher
8шт.
2
72901C1
TOOTH
machine w/12 ft 3 in mulcher
10шт.
2
72901C1
TOOTH
mulcher spring, machine w/14 ft 9 in mulcher
12шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
3/8-16 x 2-3/4 hex-hd spl, 2 bolts used per tooth
1шт.
472144R1
NUT
3/8-16 hex-lock, 1 nut used per bolt
1шт.
3
485601R1
ARM
front post, machine w/4 ft 9 in, 6 ft, 7 ft 3 in, 9 ft 9 in mulchers
1шт.
3
485601R1
ARM
front post, machine w/12 ft 3 in, 14 ft 9 in mulchers
1шт.
Q3542
HEADED PIN,11.1mm OD x 38.1mm L
PIN, 7/16 x 1.500 pln hd type 1, 1 per arm
1шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), , 1 per arm 5/32" x 1"
1шт.
113-351
BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5
7/16 x 2-3/4 type 5, 1 per arm
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 hex lock, 1 per arm
1шт.
4
813036C1
CLAMP
tooth bar tube, machine w/9 ft 9 in, 12 ft 3 in, 14 ft 9 in mulchers
4шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8-16 x 1 hex-hd
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
5
485603R1
BUSHING
ASSY, centre bar, machine w/4 ft 9 in, 6 ft, 7 foot 3 inch mulchers
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8-16 x 1 hex-hd mach
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 30
