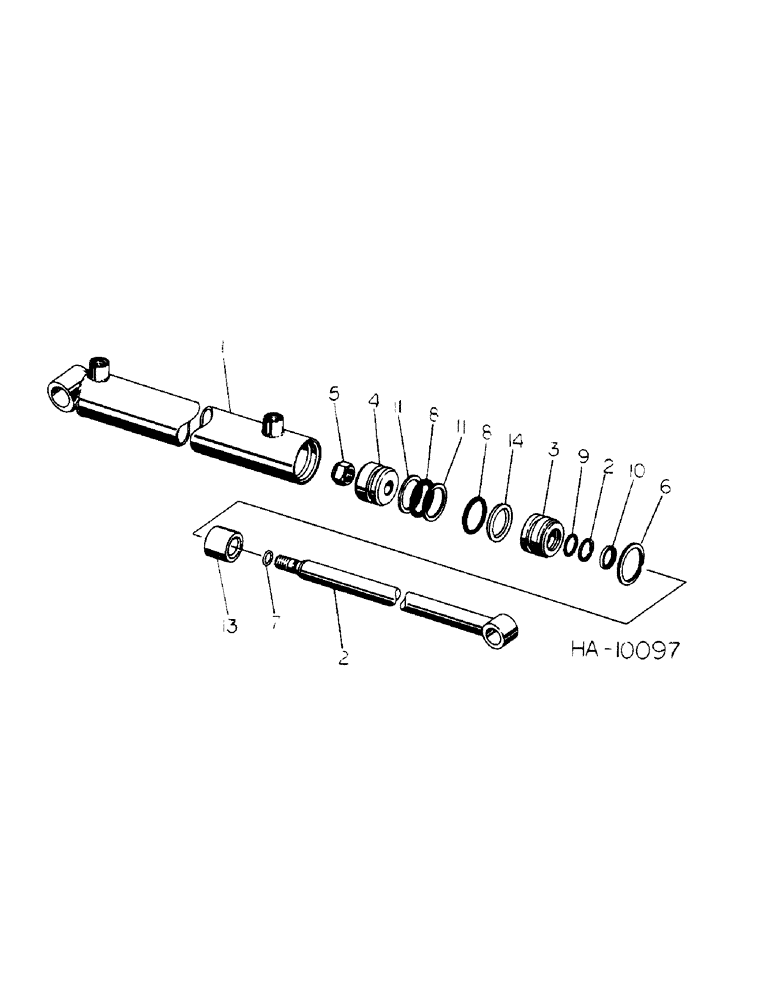

Запчасти Case IH 55 (F-34) - WING LIFT HYDRAULIC CYLINDER, MACHINES BUILT SEPTEMBER, 1974 SEASON

811888C91

CYLINDER

ASSY, wing lift hydraulic, order 1-834474R94, cylinder

1шт.

1

811846C1

BODY, cylinder

1шт.

2

811847C1

ROD

ASSY, piston

1шт.

3

811848C1

HEAD

cylinder

1шт.

4

811849C1

PISTON

1шт.

5

811850C1

NUT

piston 7/8-14 UNF

1шт.

6

25729R1

SNAP RING,#250, 2.653", Int, Spiral

RING, head retaining

1шт.

7

574069R1

O-RING,0.750" ID x .062"

.750 x .875 x .063

1шт.

8

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2.125 x 2.500 x .188

2шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1.250 x 1.500 x .125

1шт.

10

606749R91

OIL SEAL

oil

1шт.

11

RING, back-up, not serviced separately, for service order 1-811855C1, seal service kit

2шт.

12

RING, back-up, not serviced separately, for service order 1-811855C1, seal service kit

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

NOT USED THIS APPLICATION

1шт.

811855C1

SEAL KIT

hydraulic cylinder seal service, consists of ref nos 7 thru 12

1шт.
