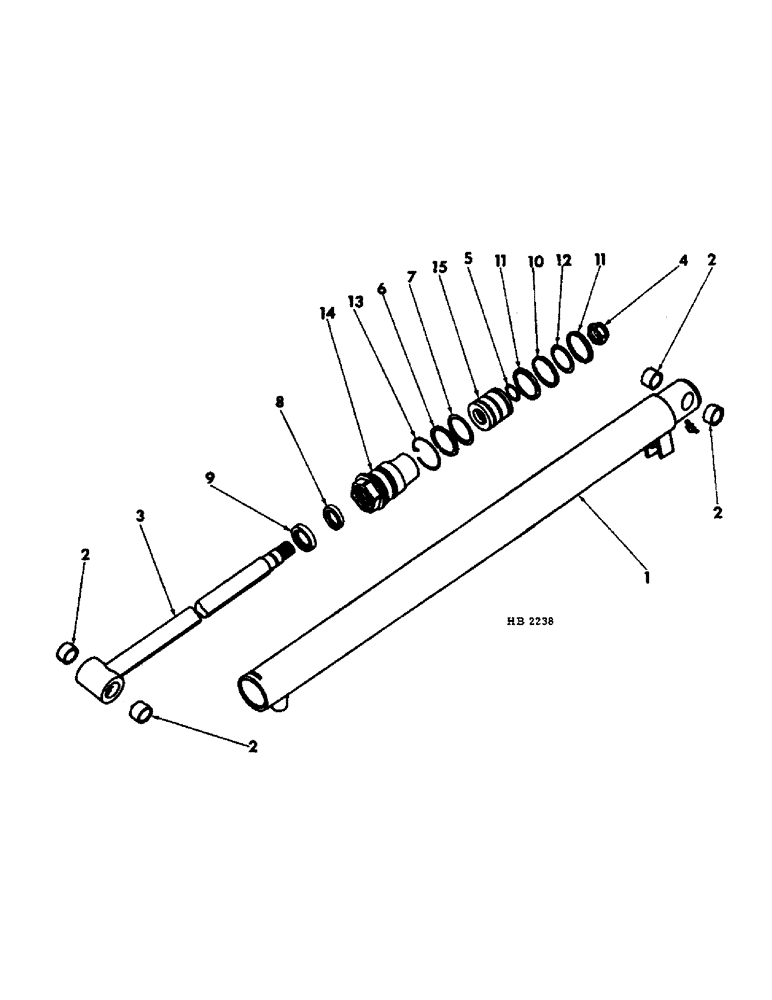

Запчасти Case IH 55 (F-33) - WING LIFT HYDRAULIC CYLINDER, PRIOR TO SEPTEMBER, 1974 SEASON, NOVEMBER, 1975 SEASON AND SINCE

384474R94

CYLINDER ASSY.

CYLINDER ASSY, wing lift hydraulic, 2.5 x 33.75 double acting

2шт.

1

384476R22

BODY

PIPE ASSY, cylinder, includes 2-378478R1, bushing

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive lub

1шт.

2

378478R1

BUSHING,28.85mm ID x 34.98mm OD x 18.92mm L

4шт.

3

384127R11

ROD

ASSY, piston, includes 2-378478R1, bushing

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 str drive lub

1шт.

4

9416471

NUT

1-14 hex lock

1шт.

5

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

piston rod static

1шт.

6

378733R1

BACK-UP RING

WASHER, back up

1шт.

7

21255R1

O-RING,2.1" ID x 2.52" OD x 0.21"

2.125 x 2.500 x .188 piston

1шт.

8

119203C1

SEAL

SEAL, piston rod

1шт.

9

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

WIPER, rod

1шт.

10

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, piston

1шт.

11

379960R1

SEALING RING

BEARING, piston

2шт.

12

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

13

385133R1

RETAINING WIRE

RING, retaining

1шт.

14

378536R2

GUIDE

HEAD, front

1шт.

15

384129R1

PISTON ASSY.

PISTON

1шт.

63578C91

SEAL PACKAGE

KIT, hydraulic cylinder service, consists of ref nos. 5 thru 13

1шт.
