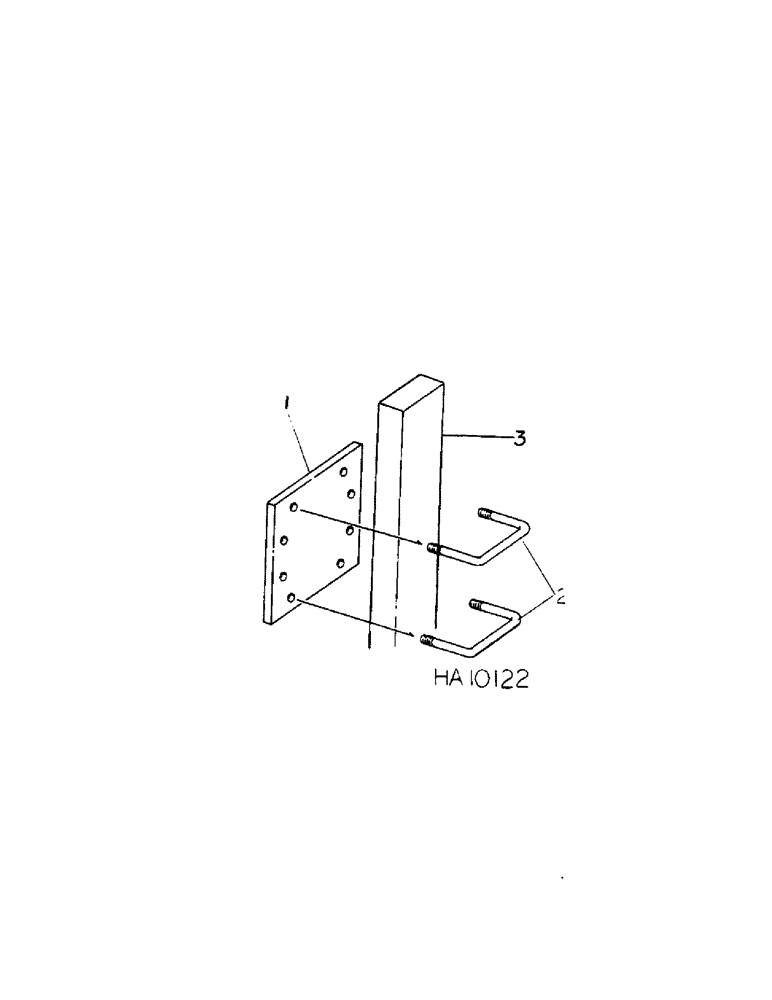

Запчасти Case IH 55 (B-06[A]) - 7 FOOT AND 11 FOOT TWO RANK, 7 FOOT AND 13 FOOT THREE RANK MODEL WITH END FRAME MOUNTING

1

609872R1

BAR, gauge wheel axle mounting mach built prior to 1972 season

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

5/8-11 x 4 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

1

811064C1

BAR

gauge wheel axle mounting mach built 1972 season & since

2шт.

811627C1

BOLT

U-BOLT, mounting bar

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

609871R1

BOLT,Wheel, 5/8" - 11 x 3 3/8", Class 2

U-BOLT, gauge wheel axle mounting

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

3

812163C1

AXLE

ASSY, gauge wheel

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 type 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.
