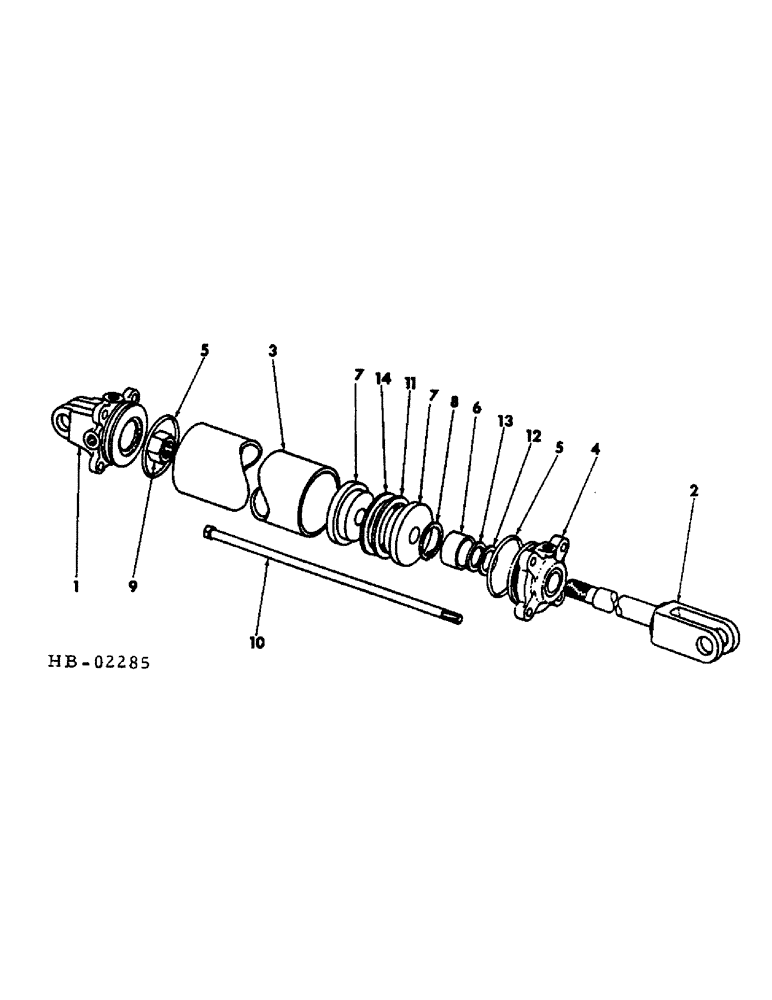

Запчасти Case IH 55 (F-31) - REMOTE CONTROL HYDRAULIC CYLINDER, 25 FOOT AND 31 FOOT MACHINE

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16 inch hydraulic

1шт.

1

959958R2

HEAD, hyd cyl anchor end

1шт.

2

959937R91

ROD

ASSY, piston

1шт.

3

959934R1

CYLINDER

BODY, hydraulic cylinder

1шт.

4

959939R1

HEAD

rod end hyd cyl

1шт.

5

296967R1

O-RING,-425, 70 Duro, 4.475" ID x .210" Thk

4.475 x 5.025 x .275

2шт.

6

959929R1

BEARING LINER,1.757" ID x 2.5" OD

piston rod

1шт.

7

959933R1

HEAD

piston

2шт.

8

959928R1

SNAP RING,2.50", Int, #250

Ring, Snap, , piston rod brg 2.50", Int, #250

1шт.

9

18489R1

LOCK NUT,1 1/4"-12, GB

NUT, 1-1/4-12 hex lock

1шт.

10

959930R2

BOLT,Hex, 5/8" - 11 x 24mm

5/8-11 x 24

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

959924R1

SEAL

SEAL, piston

4шт.

12

959926R1

SEAL

dirt and oil

2шт.

13

959927R1

OIL SEAL

piston rod oil

3шт.

14

959925R1

SEAL

flat bottom piston

2шт.

964134R91

SEAL KIT

PACKAGE, hyd cyl seal service, consists of ref nos 5, 11 thru 14

1шт.
