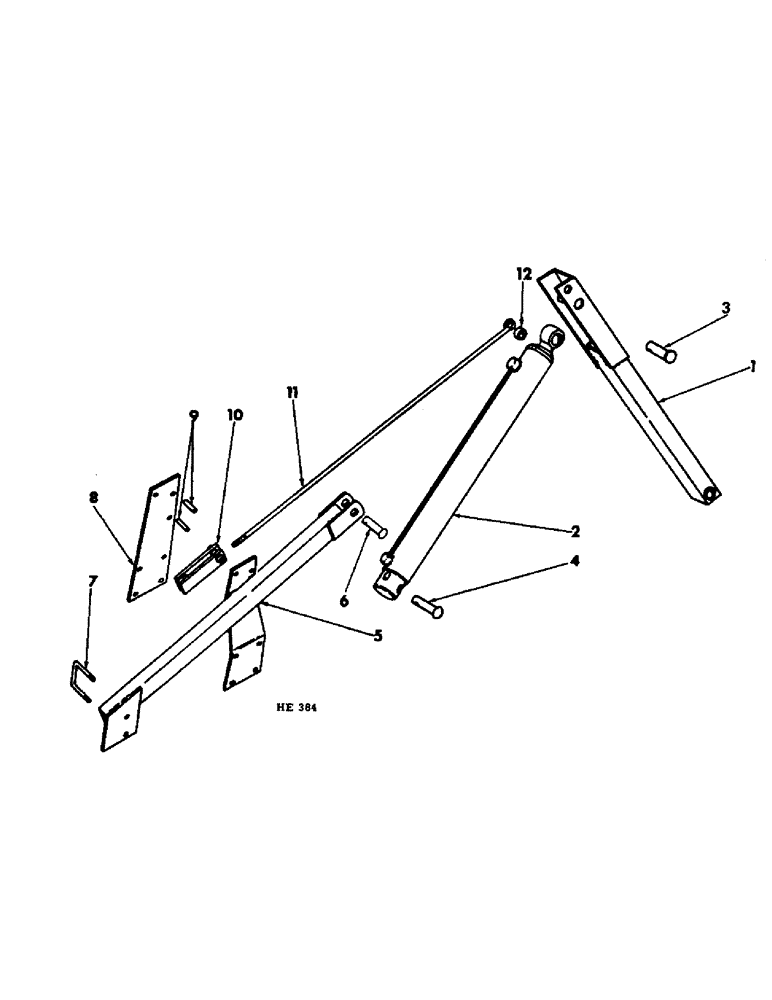

Запчасти Case IH 55 (F-20) - HYDRAULIC WING LIFT

1

597369R1

ARM ASSY, wing lift control

2шт.

24003R1

HEADED PIN

PIN, 1 x 4-1/4 std-hd-dld

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

2

384474R94

CYLINDER ASSY.

CYLINDER ASSY, wing lift hydraulic, for use on 22 foot machine, for use on 25 foot and 31 foot machine built prior to the September, 1974 season and from November, 1975 season and since

2шт.

2

811888C91

CYLINDER

ASSY, wing lift hydraulic, for use on 25 foot and 31 foot machines built September 1974 season to November 1975 season, for service of the complete hyd cyl order 1-384474R94, cylinder, for component parts refer to wing hydraulic cylinder

2шт.

3

936587R91

PIN

ASSY, lift cylinder upper

2шт.

478258R1

WASHER

1.156 x 1.750 x .105

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

594608R1

PIN

lift cylinder lower

2шт.

119202

PIN

3/8 x 2-1/4 cotter

2шт.

478258R1

WASHER

1.156 x 1.750 x .105

4шт.

5

597372R1

ARM ASSY, wing lift outer control

2шт.

6

597054R1

PIN

ASSY, outer control arm

2шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

2шт.

7

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

outer control arm clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

597377R1

BAR, outer control arm support

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 x 5-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

9

663365R1

SPACER,1/2" Pipe x 2 1/4"

outer control arm

4шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2-13 x 3-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

597379R1

HOLDER

ASSY, wing lift

2шт.

11

597382R1

ROD, wing lift

2шт.

280954

NUT,3/4"-10, G5

4шт.

21211R1

WASHER

.781 x 1.500 x .164

2шт.

12

604577R1

SPACER

BUSHING, wing lift rod

2шт.

18731R1

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 2

BOLT, 3/4 x 2 type 1 crg

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

569875R1

SQ HOLE WASHER

.781 sq x 1.750 x .054

2шт.

21753R1

WASHER

.781 x 1.500 x .054

2шт.
