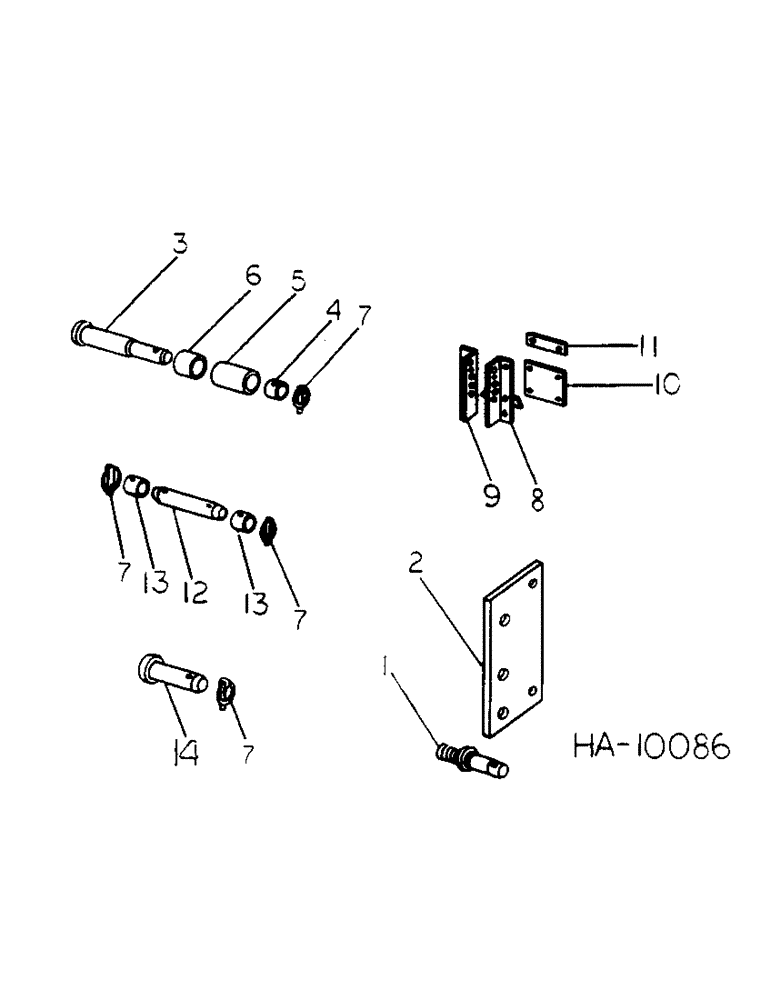

Запчасти Case IH 55 (B-05) - TRACTOR HITCH, THREE RANK MODEL

1

472790R1

STUD

PIN, hitch outer, 7 foot model

2шт.

427359

NUT,1 1/8"-12, G5

1-1/8-12 hex

2шт.

131049

HYD CONNECTOR

1-1/8 lock

2шт.

478258R1

WASHER

1.156 x 1.750 x .105

4шт.

2

812031C1

BAR

hitch center pin, for 7 ft. w/category 2 quick coupler, for 13 ft. w/category 2 or 3 quick coupler

2шт.

18371R1

BOLT, 3/4-10 x 2 type 1 crg

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

599799R1

PIN

hitch outer, 13 foot model

2шт.

4

599800R1

BUSHING

hitch pin, 13 foot model

2шт.

5

599801R1

SPACER

pin inner, 13 foot model

2шт.

6

599802R1

SPACER

pin outer, 13 foot model

2шт.

7

392181R91

PIN

ASSY, locking 1 used 7 & 13 ft cat. 3 hitch, 2 used 7 ft cat 2 & 13 ft cat 2 or 3 quick coupler, 2 used 7 & 13 ft cat 2 hitch

1шт.

8

812002C1

ANGLE

ASSY, hitch center LH

1шт.

9

812011C1

ANGLE

hitch center RH

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4-10 x 6 hex-hd

4шт.

280954

NUT,3/4"-10, G5

4шт.

10

812007C1

BAR

hitch center angle support

1шт.

11

812024C1

BAR

truss rod and hitch tie

1шт.

12

599803R1

PIN

hitch center, for 7 and 13 ft. w/category 2 hitch

1шт.

12

812032C1

PIN

hitch center, for 7 ft with three point hitch w/category 2 quick coupler, for 13 ft w/category 2 or 3 quick coupler

1шт.

13

599804R1

BUSHING

pin, used w/pin 599803R1

2шт.

14

392211R2

PIN

hitch center, for 7 and 13 ft. w/category 3 hitch

1шт.
