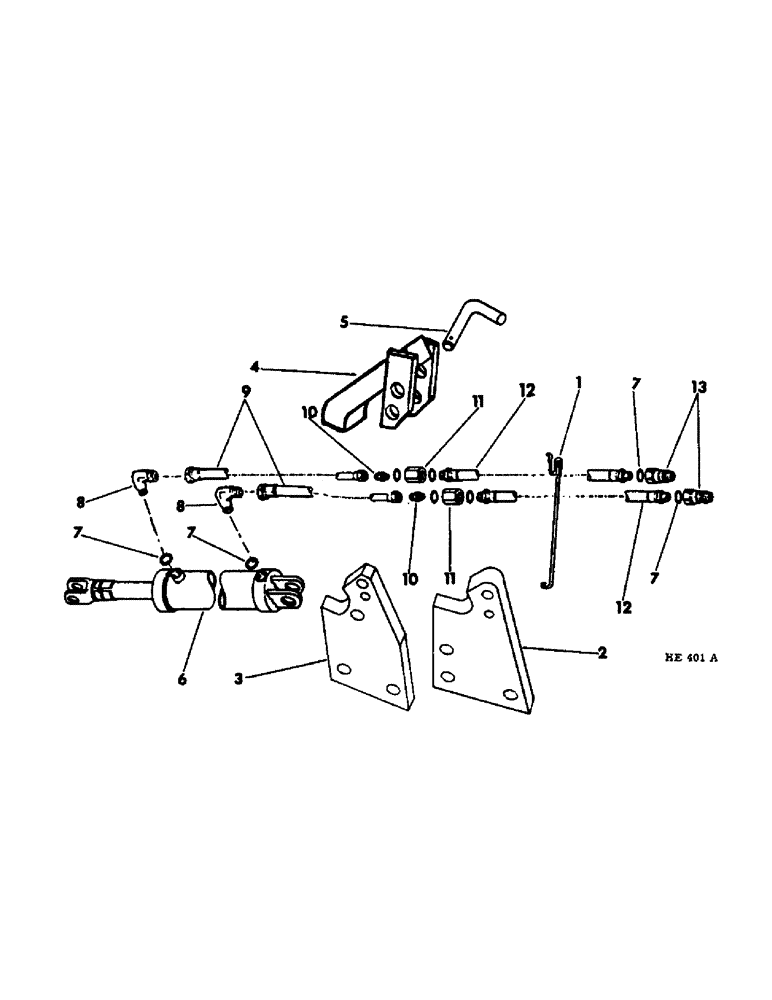

Запчасти Case IH 55 (F-19) - REMOTE CONTROL HYDRAULIC CYLINDER LIFT PARTS, 22 FOOT BUILT PRIOR TO AUGUST, 1973

1

651793R2

SUPPORT

hydraulic hose

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

2

597337R1

BRACKET ASSY, cylinder mounting, 25 foot & 31 foot machines

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 hex-hd

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

597336R1

BRACKET ASSY, cylinder mounting, 22 foot machine built prior to August, 1973 season

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

280954

NUT,3/4"-10, G5

3шт.

21757R1

WASHER

.781 x 1.250 x .027

4шт.

4

811032C1

RETAINER

ASSY, hydraulic cylinder, replaces 526263R1

1шт.

3490B

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2-1/4 std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

5

602801R1

PIN

ROD, retainer locking

1шт.

591107R1

COTTER PIN

quick-attachable cotter

1шт.

6

388688R95

CYLINDER

4 x 8 DA hyd, 22 ft machine

1шт.

6

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, machine, Reman for New PN 388688R95

1шт.

6

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

6

387351R93

CYLINDER

3.5 x 16 DA hyd, 25 & 31 ft machines, tractor w/high pressure dual valve

1шт.

6

1272149C92R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, tractor w/high pressure dual valve, Reman for New PN 387351R93

1шт.

6

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

6

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16 DA hyd, 25 & 31 ft machines, tractor w/low pressure dual valve, recommended hydraulic parts for components refer to remote control hydraulic cylinder

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic, 6 for low & 8 for high pressure system

1шт.

8

281077C1

ELBOW UNION,90 Degree, 7/8"-14, 37 Degree x 3/4"-14, NPTF

ELBOW, 90 deg reducing hyd hose, for use 2/959947R91, hyd cyl

2шт.

9

324539R91

HOSE ASSY.

HOSE ASSY, 1/2 inch x 112 inch long, for use w/959947R91, hyd cyl

2шт.

9

372437R91

HOSE

ASSY, 1/2 inch x 112 inch long, for use w/388688R95, or 387651R93 hyd cyl

1шт.

10

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

CONNECTOR, hydraulic hose, for use w/959947R91, hyd cyl

2шт.

11

584802R1

CONNECTOR, ELEC

UNION, hyd cyl adapter

2шт.

12

372437R91

HOSE

ASSY, hyd cyl front 1/2 x 112, 25 foot & 31 foot machines

2шт.

12

407093R91

HOSE

ASSY, hyd cyl front 1/2 x 72, 22 foot machine

2шт.

13

395149R1

QUICK MALE COUPLING

COUPLER, tractor hose male, opt to use 544787R91, coupler

2шт.

13

544787R91

COUPLING, BREAK AWAY

COUPLER, tractor hose male, opt to use 395149R1, coupler

2шт.
