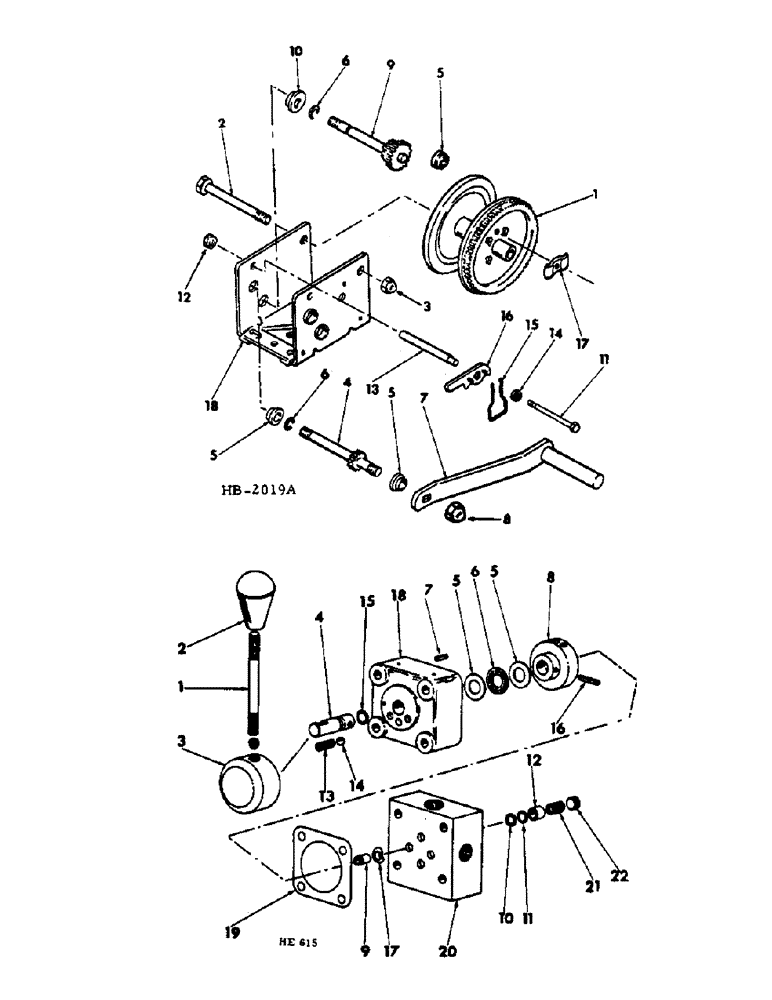

Запчасти Case IH 55 (F-18[A]) - HYDRAULIC DIVERTER VALVE, FOR MACHINES BUILT 1968 SEASON AND SINCE, TRACTORS W/ SINGLE VALVE CONTROL

1

598779R1

STUD, handle

1шт.

2

598780R1

KNOB, handle

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-cup-pt

1шт.

3

598781R1

CAP

handle

1шт.

4

598782R1

SHAFT, diverter valve

1шт.

5

598783R1

RACE, thrust bearing

2шт.

6

159688R91

THRUST BEARING

BEARING, thrust

1шт.

7

19961R1

PIN

3/16 x 5/8 dowel

2шт.

8

598784R1

ROTOR ASSY, diverter valve

1шт.

9

598785R1

SEAT, valve

4шт.

10

598786R1

RING, back-up 5/16 x 7/16 O.D.

4шт.

11

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

4шт.

12

598787R1

RETAINER, valve seat

4шт.

13

598788R1

SPRING, release

1шт.

14

17009R1

BALL

9/32 chrome steel grade 25

1шт.

15

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16

1шт.

16

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

17

598789R1

WASHER, 21/64 x 1/2 x .008 spring

8шт.

18

598790R1

CAP, valve

1шт.

19

598791R1

GASKET

1шт.

20

598792R1

BODY, valve

1шт.

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

5/16-18 x 3-1/2 hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

21

598793R1

SPRING, compression

4шт.

22

444691

PLUG

1/4-18 NPT hex soc pipe

4шт.

812271C91

WINCH

ASSY, hand

1шт.
