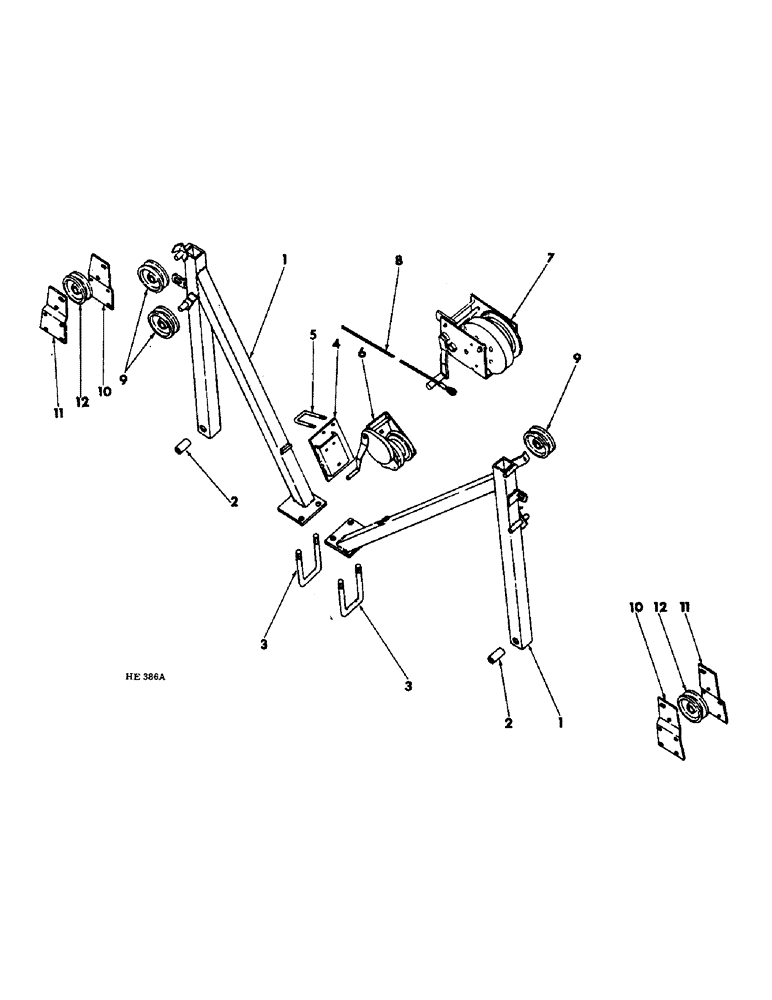

Запчасти Case IH 55 (F-16) - HAND WINCH WING LIFT, MACHINES BUILT PRIOR TO MAY, 1974

1

597625R1

FRAME ASSY, wing lift

2шт.

2

597632R1

SPACER, wing lift frame bolt

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8-11 x 4-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga

4шт.

3

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

lift frame clamping

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

597633R1

BRACKET, hand winch

1шт.

5

591609R1

BOLT

U-BOLT, winch bracket clamping

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

WINCH ASSY, hand, prior to May, 1973 season, order 1-812271C91, winch assy

1шт.

7

812271C91

WINCH

ASSY, wing hand lift, for components refer to hand winch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

8

597638R1

CABLE

hand winch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

467750R1

WASHER

.781 x 1.500 x .105

1шт.

9

605885R1

PULLEY

wing lift frame cable

3шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

3шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

6шт.

10

597639R1

SUPPORT, cable pulley LH

2шт.

11

597640R1

SUPPORT, cable pulley RH

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2-13 x 5-1/2 hex-hd

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

518505R1

HEADED PIN,3/4" x 3"

PIN, 3/4 x 3 std-hd-dld spcl

2шт.

467750R1

WASHER

.781 x 1.500 x .105

2шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

2шт.

12

608885R1

PULLEY, wing lift outer

2шт.
