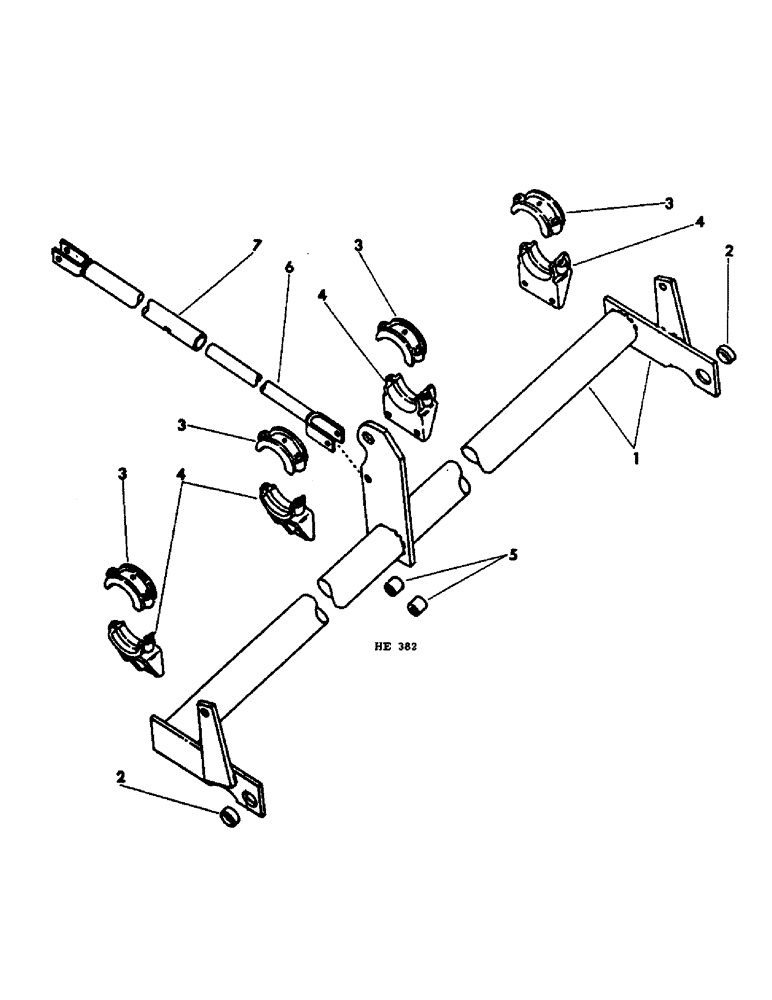

Запчасти Case IH 55 (F-14) - ROCKSHAFT UNIT, 25 FOOT AND 31 FOOT MACHINES BUILT WITH IDENTIFICATION PLATES C1111 OR C1121

1

597333R2

ROCKSHAFT ASSY, 11 foot, includes 2-591525R1, bushing

1шт.

2

591525R1

BUSHING

main wheel lift bar

2шт.

3

605664R1

CAP

rockshaft bearing

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

4

605663R2

BRACKET

BEARING, rockshaft

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

6шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

8шт.

5

615944R1

SPACER,3/4" X-Strng Pipe x 1 1/4"

centre bearing

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

6

597341R1

ROD ASSY, rockshaft transport lock

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd-dld

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

597344R1

TUBE ASSY, rockshaft transport lock 29.62" Length

1шт.

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 std-hd-dld

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.
