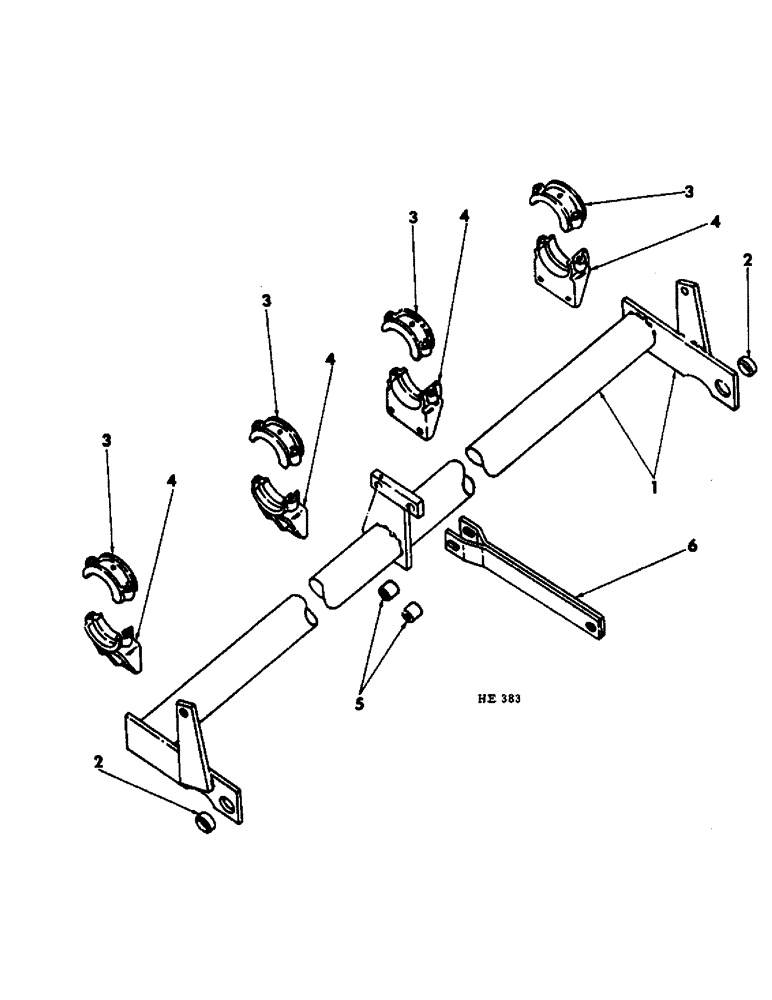

Запчасти Case IH 55 (F-13) - ROCKSHAFT UNIT, 22 FOOT BUILT PRIOR TO AUGUST, 1973

1

597327R1

ROCKSHAFT ASSY, 8 foot, includes 2-591525R1, bushing

1шт.

2

591525R1

BUSHING

main wheel lift bar

2шт.

3

605664R1

CAP

rockshaft bearing

4шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

4

605663R2

BRACKET

BEARING, rockshaft

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

6шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11

8шт.

5

615944R1

SPACER,3/4" X-Strng Pipe x 1 1/4"

centre bearing

2шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 x 3-1/2 hex-hd

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

6

597339R1

YOKE ASSY, rockshaft transport lock

1шт.

389103R1

PIN

1 x 2-3/4 std-hd-dld

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

PIN, 1/4 x 1-1/4 cotter

1шт.

599744R1

AXLE PIN

PIN, quick-attachable cotter

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

4шт.
