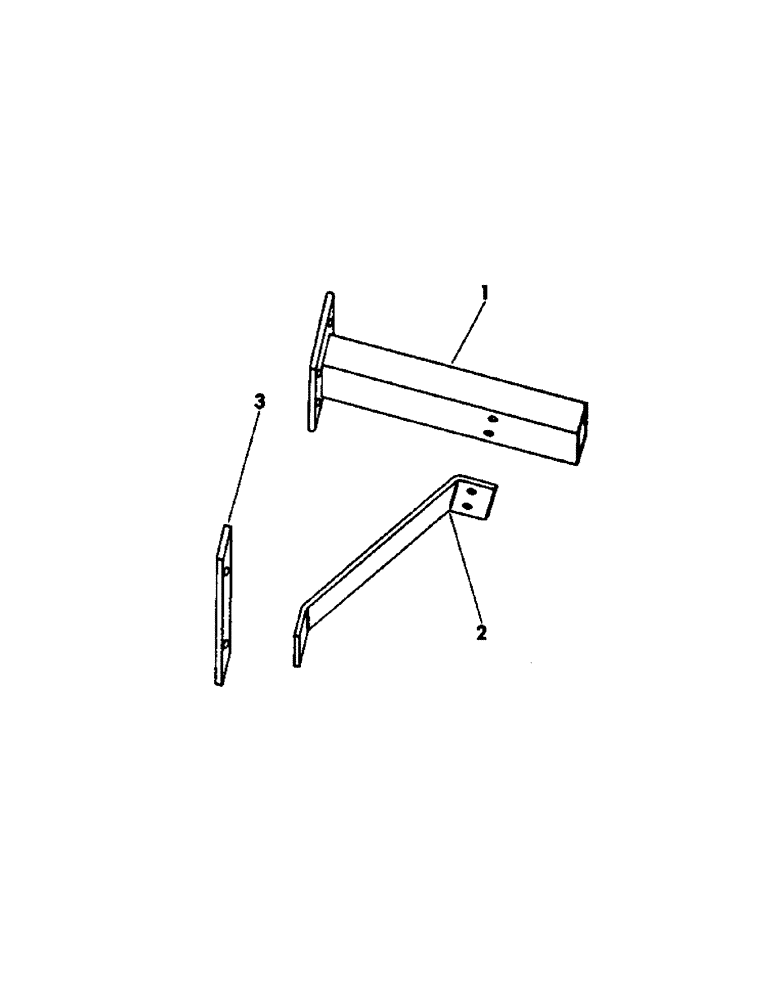

Запчасти Case IH 55 (F-12) - FORWARD SHANK MOUNTING BRACKET, 22 FOOT BUILT PRIOR TO AUGUST, 1973

1

597655R1

BRACKET ASSY, forward shank mounting

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

5/8-11 x 5 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

2

597657R1

BRACE, shank mounting bracket

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 x 5 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

597658R1

BAR, brace U-bolt clamping

1шт.
