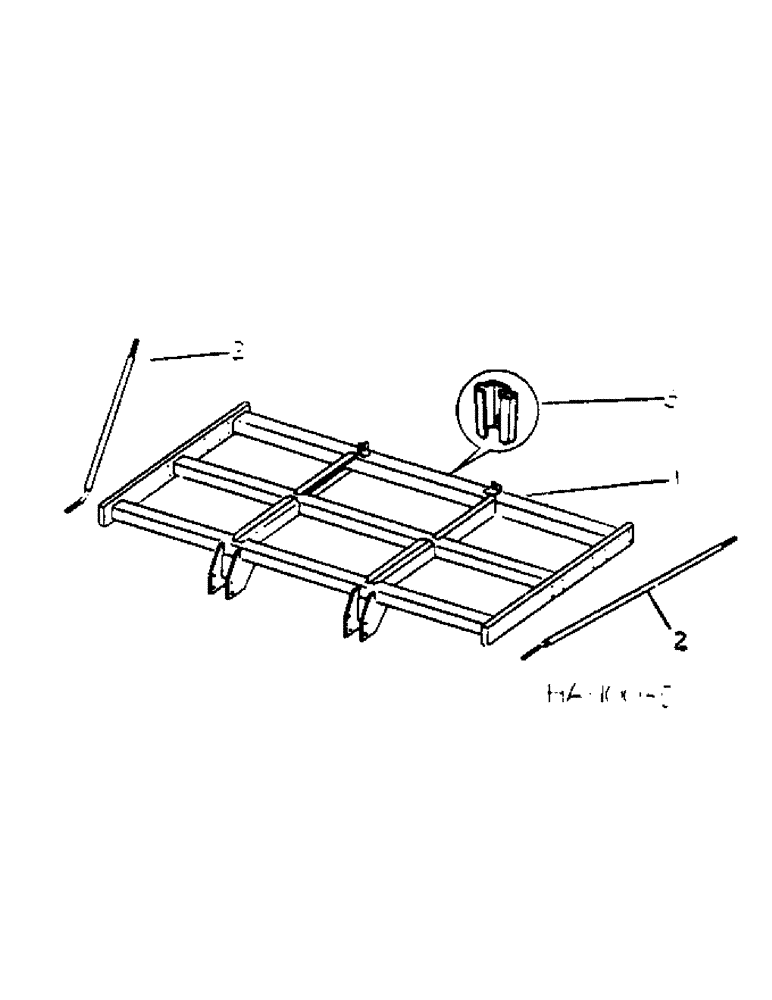

Запчасти Case IH 55 (B-04) - FRAME AND TRUSS ROD, THREE RANK MODEL

1

811429C91

FRAME

ASSY, 7 foot model, replaces 812022C1

1шт.

1

811421C91

FRAME

ASSY, 13 foot model, replaces 812001C4, includes 1-61907C1 prod graphic

1шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution general warning

1шт.

2

812015C1

ROD

ASSY, truss

2шт.

9849633

NUT,1"-8, G5

8шт.

3

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
