Запчасти Case IH 530C (75.200.07) - MAIN FRAME SHANK POINTS (09) - CHASSIS/ATTACHMENTS

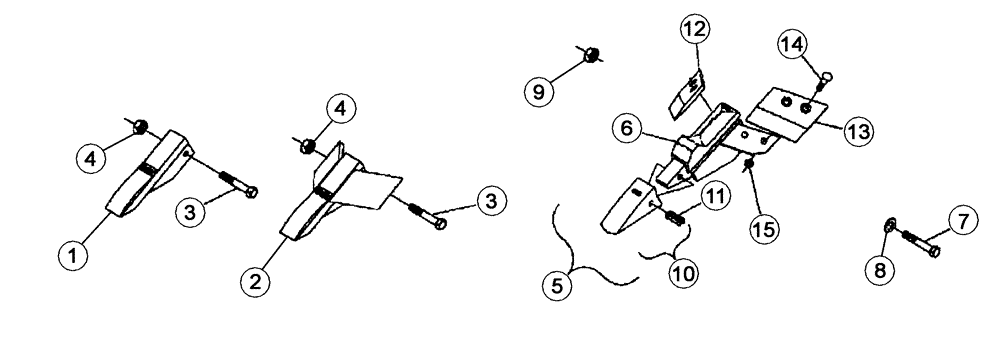

Схема запчастей Case IH 530C - (75.200.07) - MAIN FRAME SHANK POINTS (09) - CHASSIS/ATTACHMENTS
4
3
13
10
14
11
3
4
7
2
1
9
6
8
5
12
15

Артикул

Название

Примечание

Количество

1

87460071

POINT RIPPER SHANK

2 x 1.5, Straight (Does Not Include Hardware)

1шт.

2

87460074

POINT RIPPER SHANK

7 x 1.5, Tiger (Does Not Include Hardware)

1шт.

2

87460072

POINT RIPPER SHANK

10 x 1.5, Tiger (Does Not Include Hardware)

1шт.

3

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NC

1шт.

5

87460159

POINT RIPPER SHANK

10 x 1.5, Tiger, Replacable Tip (Does Not Include Hardware)

1шт.

6

87460073

POINT RIPPER SHANK

Replacable Base (Does Not Include Hardware)

1шт.

7

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

8

495-21056

WASHER,1/2"

Standard

1шт.

9

425-168

NUT,1/2"-13, G5, Hvy

Hex.

1шт.

10

87412311

TIP

Replacable, Includes Ref. 11

1шт.

11

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

12

09907002

FRAME

RH, Wing, Includes. 14 & 15

1шт.

13

09907003

FRAME

LH, Wing, Includes. 14 & 15

1шт.

14

16208065

PLOW BOLT

1/2 x 1-1/2, NC

4шт.

15

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.
