Запчасти Case IH 530C (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

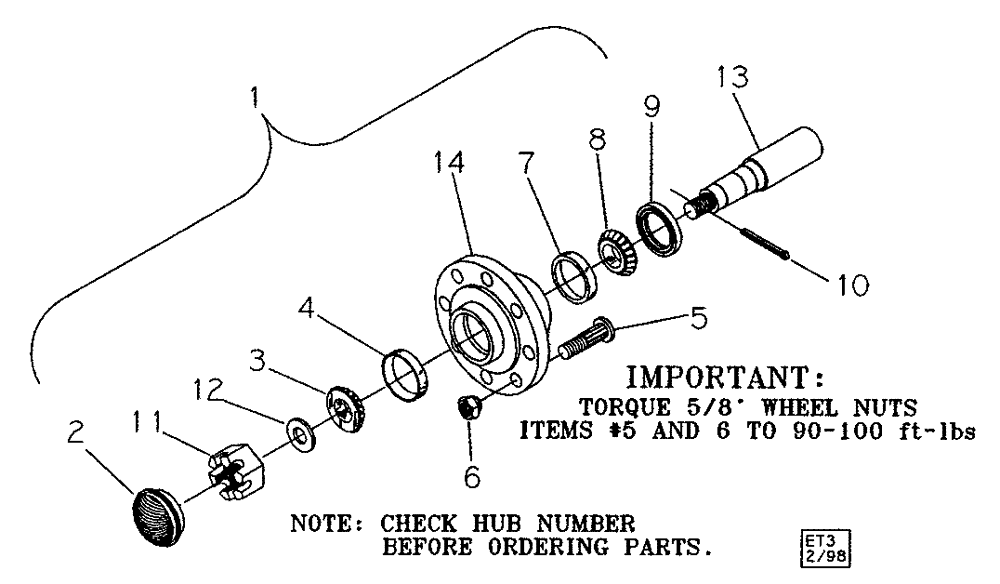

Схема запчастей Case IH 530C - (44.100.01) - HUB AND SPINDLE ASSEMBLIES (09) - CHASSIS/ATTACHMENTS
5
12
8
2
10
14
3
11
1
9
4
6
7
13

Артикул

Название

Примечание

Количество

1

28660800

HUB ASSY.

60-8, 8-Bolt, Includes 2 - 9, 5 Shank Transport

1шт.

1

28560803

HUB ASSY.

With Spindle, 5 Shank

1шт.

1

87330629

STUB AXLE/STEERING S

80-8, 7 Shank

1шт.

2

28460800

DUST CAP

5 & 7 Shank, Transport

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62, Bore, Timken LM501349, 5 & 7 Shank Transport

1шт.

4

663558R1

BEARING CUP

2.89, OD, Timken LM501310, 5 & 7 Shank Transport

1шт.

5

87343929

BOLT

5/8-18 x 2.5, 80-8, 7 Shank

8шт.

5

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8 x 2-1/4, NF, Wheel, 5 Shank Transport

8шт.

6

554480R1

WHEEL NUT

5/8, NF, Wheel, 5 & 7 Shank Transport

8шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

3.54, OD, Timken JLM506810, 5 & 7 Shank Transport

1шт.

8

3216619R91

TAPERED BEARING,55mm ID x 26mm W

2.165, Bore, Timken JLM506848, 5 Shank Transport

1шт.

9

21932750

SEAL

2.75, ID x 3.75, OD, CR531108, 5 & 7 Shank Transport

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

5 & 7 Shank Transport

1шт.

11

425-1316

NUT,1"-14, G5

5 & 7 Shank Transport

1шт.

12

17916100

WASHER

1, Dia, Special, Heavy, 5 & 7 Shank Transport

1шт.

13

87330631

STUB AXLE/STEERING S

7 Shank Transport

1шт.

13

28860803

SPINDLE

5 Shank

1шт.

14

28760800

HUB ASSY.

60-8, With Cups, 5 Shank Transport

1шт.

14

87330630

HUB ASSY.

80-8, With Cups, Includes 4 -5, 7, & 19, 7 Shank

1шт.

Выбрано товаров: 19
