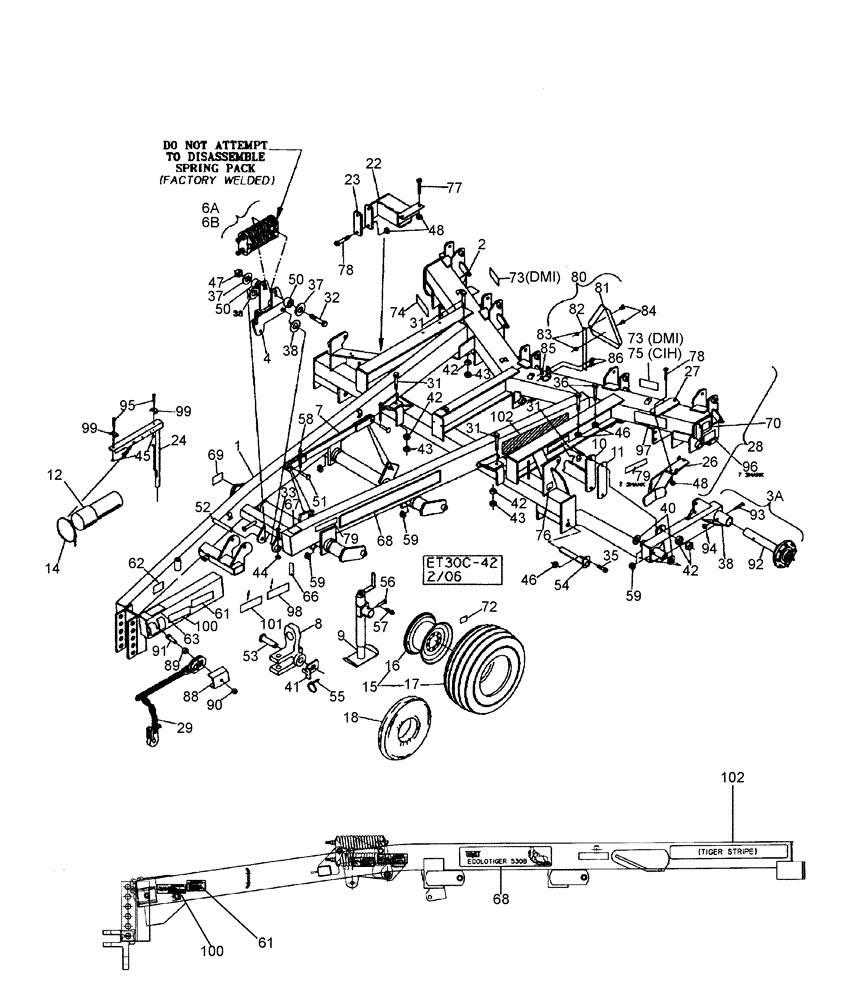

Запчасти Case IH 530C (39.100.01) - MAIN FRAME ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

87330856

FRAME ASSY

Pull, 5 Shank, Blue

1шт.

1

87386365

FRAME ASSY

Pull, 7 Shank, Blue

1шт.

2

87328449

FRAME ASSY

Main Frame, 5 Shank, Blue

1шт.

2

87327326

FRAME ASSY

Main Frame, 7 Shank , Blue

1шт.

3a

09984530

BAR ASSY.

Spindle Arm With Hub, RH, 530C

1шт.

3a

09984510

BAR ASSY.

Spindle Arm With Hub, LH, 530C

1шт.

3a

87330822

HUB ASSY.

Spindle Arm With Hub, LH, 730C

1шт.

3a

87330821

HUB ASSY.

Spindle Arm With Hub, RH, 730C

1шт.

3b

09984512

BAR ASSY.

Spindle Arm Without Hub, LH, 530C

1шт.

3b

09984531

BAR ASSY.

Spindle Arm Without Hub, RH, 530C

1шт.

3b

87330823

ARM ASSY.

Spindle Arm Without Hub, RH, 730C

1шт.

3b

87330834

ARM ASSY.

Spindle Arm Without Hub, LH. 730C

1шт.

4

09983951

BAR ASSY.

Cylinder Link

1шт.

6a

87443458

CASTING

Relief Assembly, 7 Shank (Does Not Diassemble)

1шт.

6b

09900085

SPRING BOX

Relief Assembly, 5 Shank (Does Not Diassemble)

1шт.

7

84401366

LINKAGE

Lift

1шт.

8

20092310

CLEVIS

Combo

1шт.

9

32230000

JACK

5000 lb

1шт.

10

09984470

TUBE,96.75" Length

Torque Tube

1шт.

11

09967141

WEDGE

Torque Tube

1шт.

12

30026030

TUBE

Manual Canister

1шт.

14

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

15

NSS

NOT SOLD SEPARAT

16.5 x 16.1, 14 Ply, Tubeless Assembly, 5 Shank, White, Wheel Land

2шт.

15

NSS

NOT SOLD SEPARAT

16.5 x 16.1, 14 Ply, Tube Assembly, 5 Shank, White, Wheel Land

2шт.

15

NSS

NOT SOLD SEPARAT

16.5 x 16.1, FI (LR"E"), Tubeless Assembly, 7 Shank, White

2шт.

15

NSS

NOT SOLD SEPARAT

16.5 x 16.1, (FI (LR"E"), Tube Assembly, 7 Shank, White

2шт.

15

NSS

NOT SOLD SEPARAT

14 x 16.1, 7 Shank

2шт.

15

10016222

LAND WHEEL

425/65R x 22.5 Tire Assembly, Option, White

2шт.

16

10114169

LAND WHEEL

14 x 16.1, 8 Hole, White, 5 Shank, Not Used On 730C

2шт.

16

10113222

LAND WHEEL

13.00 x 22.5, 8 Bolt, White, Option

2шт.

17

NSS

NOT SOLD SEPARAT

16.5L x 16.1, 14 Ply Tire, 5 Shank

2шт.

17

NSS

NOT SOLD SEPARAT

16.5L x 16.1, FI (LR"E") Tire, 7 Shank

2шт.

17

NSS

NOT SOLD SEPARAT

425/65R x 22.5 Tire, Option

2шт.

18

NSS

NOT SOLD SEPARAT

16.5 x 16.1 Tube

2шт.

22

87461258

MOUNTING PARTS

Lead Shank, RH

1шт.

22

87461257

MOUNTING PARTS

Lead Shank, LH

1шт.

23

09576610

LINKAGE

Flat

2шт.

24

05302150

STAND

Hose

1шт.

26

87515015

SCRAPER BLADE

Mud Scraper, LH

1шт.

26

87515016

SCRAPER BLADE

Mud Scraper, RH

1шт.

27

09983240

BRACKET

Mounting Flat

2шт.

29

87393082

CHAIN

20,200 lb. ASE Safety

1шт.

29

87389757

CHAIN

30,400 lb, ASE Safety

1шт.

31

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

NC

10шт.

32

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex.

2шт.

33

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

NC

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

2шт.

35

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

2шт.

36

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

NC

4шт.

37

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

4шт.

38

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machine

1шт.

40

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 x 14 ga

4шт.

41

09967531

BRACKET

Klik Pin

1шт.

42

425-1014

NUT,7/8"-9, G5

NC, Hex.

14шт.

43

425-1414

JAM NUT,Jam, 7/8"-9, G5

NC, Hex.

6шт.

44

86992214

LOCK NUT

7/16, NC, Stover

1шт.

45

425-106

NUT,3/8"-16, Cl 5

NC, Hex.

4шт.

46

425-1010

NUT,5/8"-11, G5

NC, Hex.

6шт.

47

85700693

NUT,5/8" - 11, Gr C

Stover

2шт.

48

425-1012

NUT,3/4"-10, G5

NC, Hex.

12шт.

50

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

5/8, Special, H.T.

4шт.

51

14816201

SMALL PIN

1 Dia x 2-3/32, EL

2шт.

52

14892066

PIN

1-1/4 Dia x 8-1/2

1шт.

53

14820520

HITCH PIN

1-5/8

1шт.

54

09983475

BAR ASSY.

Pin

2шт.

55

D33805

PIN

Klik

1шт.

56

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 Dia x 3-1/8, Clevis

1шт.

57

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

1шт.

58

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

2шт.

59

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Straight

9шт.

61

18534228

DECAL

Caution

1шт.

62

18534262

DECAL

Level Frame

1шт.

63

18534140

WARNING DECAL

1шт.

66

18534240

DECAL

Red/Green

1шт.

67

18534241

DECAL

Information

1шт.

68

87380871

DECAL

LH, Blue, 5 Shank, Serial Range: -JFH0033978

1шт.

68

87380872

DECAL

RH, Blue, 5 Shank, Serial Range: -JFH0033978

1шт.

68

87380873

DECAL

7 Shank, LH, Blue, Serial Range: -JFH0033978

1шт.

68

87380874

DECAL

7 Shank, RH, Blue, Serial Range: -JFH0033978

1шт.

69

18534258

DECAL

Depth Indicator

1шт.

70

87354390

DECAL

Bolt Torque & Tire Inflation, 5 Shank

1шт.

70

87354401

DECAL

Bolt Torque & Tire Inflation, 7 Shank

1шт.

72

18534164

DECAL

Tire Inflation, 425/65R Tire, Option

2шт.

73

18534259

DECAL

DMI Logo

1шт.

74

18534307

DECAL

Helping Plants Thrive

1шт.

76

87444766

PLATE

Serial

1шт.

77

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC

4шт.

78

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

NC

8шт.

79

311864A1

REFLECTOR

Yellow

4шт.

80

18581004

PRODUCT GRAPHIC

SMV, Includes Ref. 81 - 86

1шт.

81

311860A1

EMBLEM

SMV

1шт.

82

09983415

BRACKET

SMV

1шт.

83

86992211

NUT

1/4, NC, Hex.

2шт.

84

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

85

86992213

NUT

3/8, NC, Hex.

2шт.

86

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

2шт.

87

NSS

NOT SOLD SEPARAT

Touch Up, Blue

1шт.

88

04681210

BRACKET

1шт.

89

04681211

BUSHING

1шт.

90

86992219

LOCK NUT

1, NC, Stover

1шт.

91

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

1шт.

92

28560803

HUB ASSY.

60-8, 7 Shank

2шт.

92

87330629

STUB AXLE/STEERING S

80-8, 7 Shank

2шт.

93

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

NC, ZP

2шт.

94

86992215

LOCK NUT,1/2"-13, GC

NC, Stover

2шт.

95

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

NC

1шт.

95

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

NC

1шт.

96

18534227

DANGER DECAL

Danger

2шт.

97

18534343

DECAL

Yeild-Till

1шт.

98

18534333

DANGER DECAL

1шт.

99

06200125

HOSE CLAMP

1шт.

100

18534347

WARNING DECAL

Warning, Towing

1шт.

101

18534277

DECAL

Warning

2шт.

102

18532035

DECAL

Tiger

2шт.
