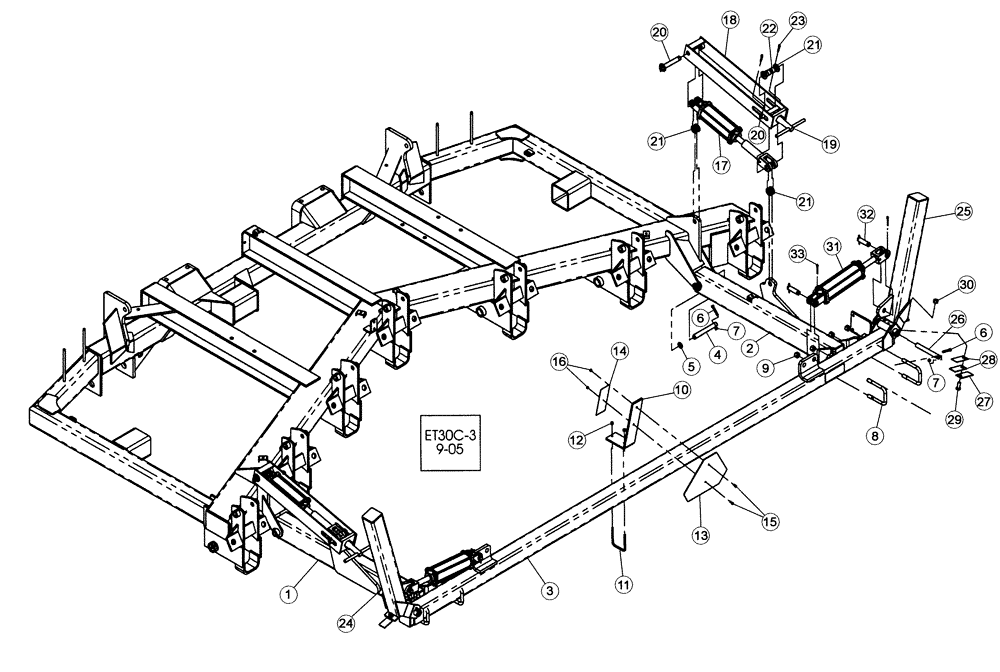

Запчасти Case IH 530C (75.200.11) - HYDRAULIC LEVELER BAR (09) - CHASSIS/ATTACHMENTS

1

87331553

ARM ASSY.

Pivot Weldment, Lh, Serial Range: -JFH0033978

1шт.

1

87541339

PIVOTING ARM

Pivot Weldment, Lh, Start Serial: JFH0033979

1шт.

2

87332115

ARM ASSY.

Pivot Weldment, Rh, Serial Range: -JFH0033978

1шт.

2

87541340

PIVOTING ARM

Pivot Weldment, Rh, Start Serial: JFH0033979

1шт.

3

87332645

SUPPORT TUBE

Rear Leveler, 7 Shank

1шт.

3

87355968

HYD TUBE

Rear Leveler, 5 Shank

1шт.

4

14891665

HITCH PIN

1 Painted, Serial Range: -JFH0033978

2шт.

4

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

, Start Serial: JFH0033979

2шт.

5

17616020

WASHER

1 ID, 14 Ga

4шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

87427185

U-BOLT

3/4 x 4, Square

4шт.

9

280375

NUT,3/4"-10, GC

8шт.

10

09102570

PRODUCT GRAPHIC

SMV Bracket

1шт.

11

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8 x 4 x 4, Square

1шт.

12

86992213

NUT

3/8

2шт.

13

311860A1

EMBLEM

SMV, ASAE, With Steel Plate

1шт.

14

09102450

INDICATOR

Depth Leveler

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

86992211

NUT

1/4

2шт.

17

25330083

CYLINDER ASSY.

3 x 8 With Stop

2шт.

18

87332498

STOP

Cylinder Depth Adjust, Serial Range: -JFH0033978

2шт.

18

87550891

STOP

Cylinder Depth Adjust, Start Serial: JFH0033979

2шт.

19

429723A1

SCREW

2шт.

20

429719A1

PIN

1 Cylinder

4шт.

21

495-11106

WASHER,1", SAE

16шт.

22

09102904

SPACER

1 x 3/4

4шт.

23

432-1624

COTTER PIN,1/4" x 1 1/2"

6шт.

24

87331911

LEVELLING DEVICE

Wing, Lh

1шт.

25

87331913

LEVELLING DEVICE

Wing, Rh

1шт.

26

14891661

SPECIAL PIN,25.4mm OD x 204.7mm L

1

2шт.

27

09661455

SHIM

2шт.

28

09661456

SHIM

4шт.

29

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

30

231-42410

LOCK NUT,5/8"-11, GB

2шт.

31

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10

2шт.

31

25330101R

REMAN-HYD CYLINDER

530C 3000 PSI, Wing Lift, 730C, Both CASE IH ECOLO-TIGER®

2шт.

31

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

32

25890100

KIT

1, Cylinder

4шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

8шт.

34

86992219

LOCK NUT

1 Stover, Gd C, ZP

2шт.
