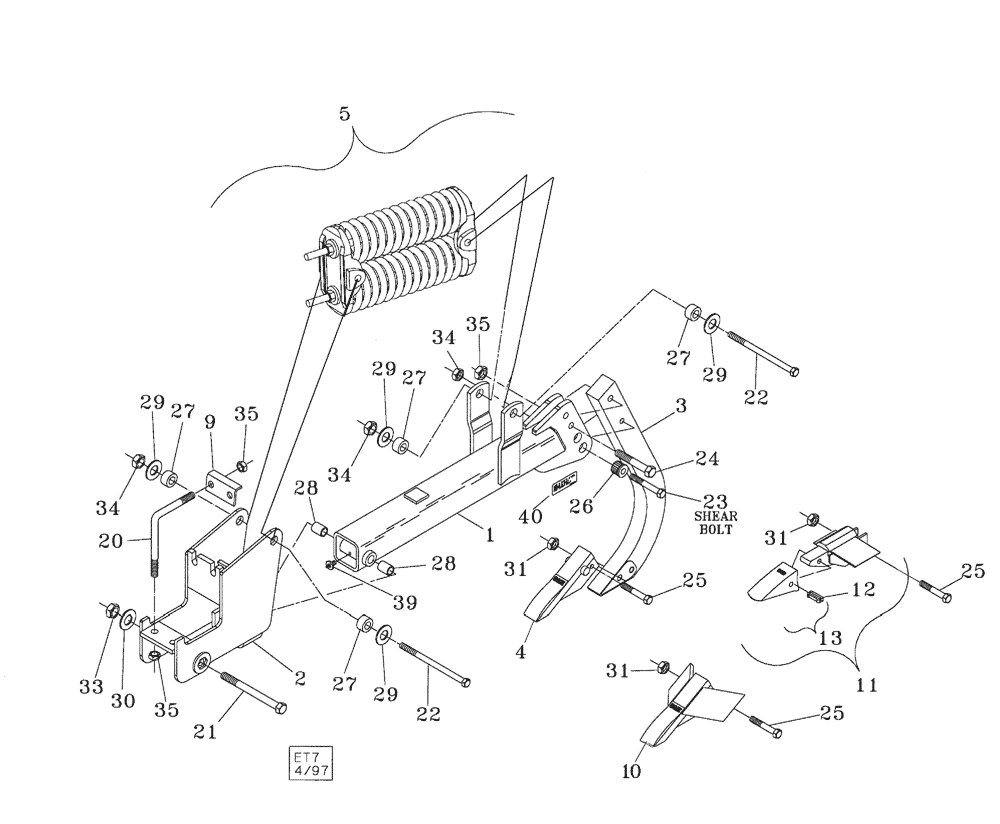

Запчасти Case IH 530C (75.200.10) - LEAD SHANK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

09984810

BAR ASSY.

Lead Shank, Beam

1шт.

2

09984820

SHANK

Mount

1шт.

3

33010010

SHANK

Heat Treated

1шт.

4

87460075

POINT RIPPER SHANK

1шт.

5

09984815

SPRING

Assembly

1шт.

9

09561200

PLATE

1шт.

10

87460070

POINT RIPPER SHANK

7 x 1.25" Tiger

1шт.

11

87460158

POINT RIPPER SHANK

7, Replacable Tip Tiger

1шт.

Does Not Include Hardware

1шт.

12

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

13

87412311

TIP

Replacable

1шт.

14

09900012

SHANK

Complete Lead, Less Point

1шт.

20

87427193

SPECIAL BOLT

3/4, NC x 7-9/16, Square

2шт.

21

16901435

BOLT

7/8 x 7-3/4, NC, Hex, gd 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex, gd 5

2шт.

23

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

Shear

1шт.

24

16901215

BOLT

3/4 x 3-3/4, NC, A325

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

26

44006511

BUSHING

5/8, Serrated, Painted

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T., Painted

2шт.

28

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

7/8, ID, Hardened

2шт.

29

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard

4шт.

30

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8, ID

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

1шт.

33

85700693

NUT,5/8" - 11, Gr C

1шт.

34

425-1010

NUT,5/8"-11, G5

3шт.

35

425-1012

NUT,3/4"-10, G5

5шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

Self-Tapping

1шт.

40

18534233

DECAL

Shear Bolt , Obsolete

1шт.
