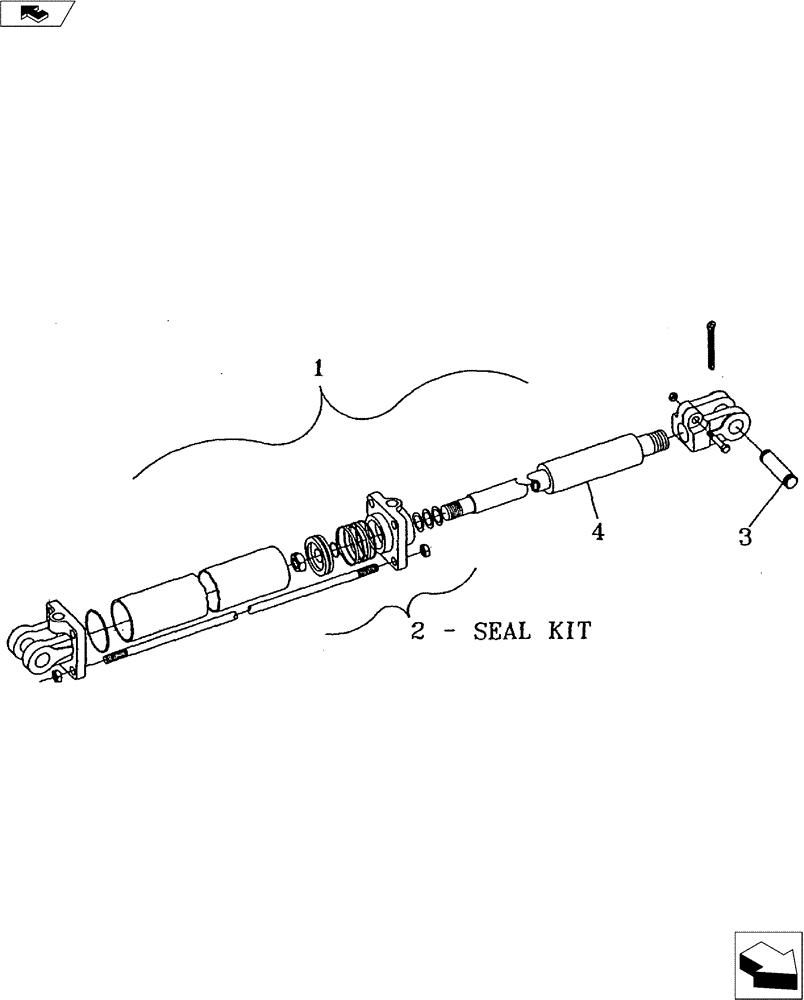

Запчасти Case IH 530B (35.100.04) - HYDRAULIC CYLINDERS - DISC LEVELER (35) - HYDRAULIC SYSTEMS

1

25330083

CYLINDER ASSY.

3" X 8" Hydraulic - SAE Ports (20-1/4" Closed) - 3,000, P.S.I.

1шт.

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" - SAE Ports (20-1/4" Closed) - 3,000, P.S.I.

1шт.

1

25330101R

REMAN-HYD CYLINDER

530B, 730B, Both DMI ECOLO-TIGER® - DISC LEVELER, 530B, 730B, Both DMI ECOLO-TIGER®, All SAE Ports (20-1/4" Closed), 3,000, P.S.I.

1шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

1-1/4" Dia. Rod - 3"

1шт.

3

25890100

KIT

1" Dia. Clevis Pin Bag Of Parts

1шт.

4

09102959

HYD TUBE,1.27" ID, 2" OD, 6.5" Length

Stroke Control Tube - For Main Lift Cylinder Only

1шт.
