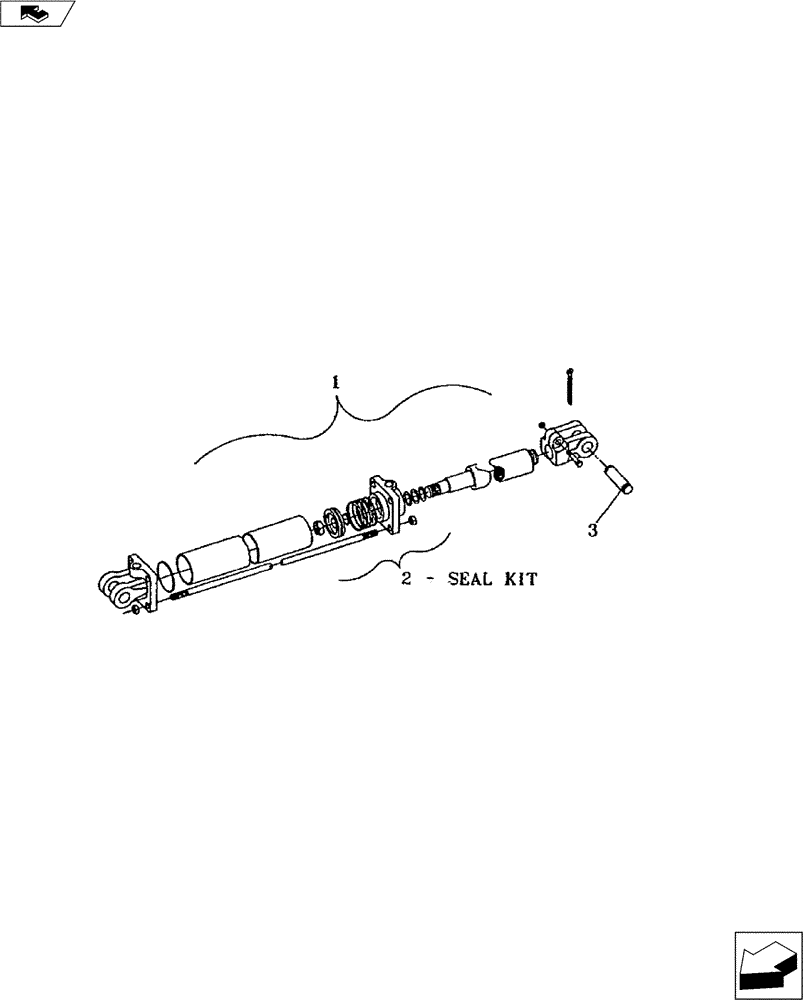

Запчасти Case IH 530B (35.100.03) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16", 20-1/4" Closed, 3000 PSI, SAE Ports

1шт.

1

25330160R

REMAN-HYD CYLINDER

530B, 730B, Both DMI ECOLO-TIGER®, 3" x 16", 20-1/4" Closed, 3000 PSI, SAE Ports

1шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

1шт.

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8", 20-1/4" Closed, 3000 PSI, SAE Ports

1шт.

1

25330121

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke

3" x 12", 22-1/4" Closed, 3000 PSI, SAE Ports

1шт.

1

25335120

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3-1/2" x 12", 22-1/4" Closed, 3000 PSI, SAE Ports

1шт.

25335120R

REMAN-HYD CYLINDER

530B,730B

1шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

1-1/4" Dia. Rod-3"

1шт.

2

25833527

SEAL KIT

Kit - 1-1/2" Dia. Rod-3-1/2"

1шт.

3

25890100

KIT

1" Clevis Pin Bag Of Parts

1шт.
