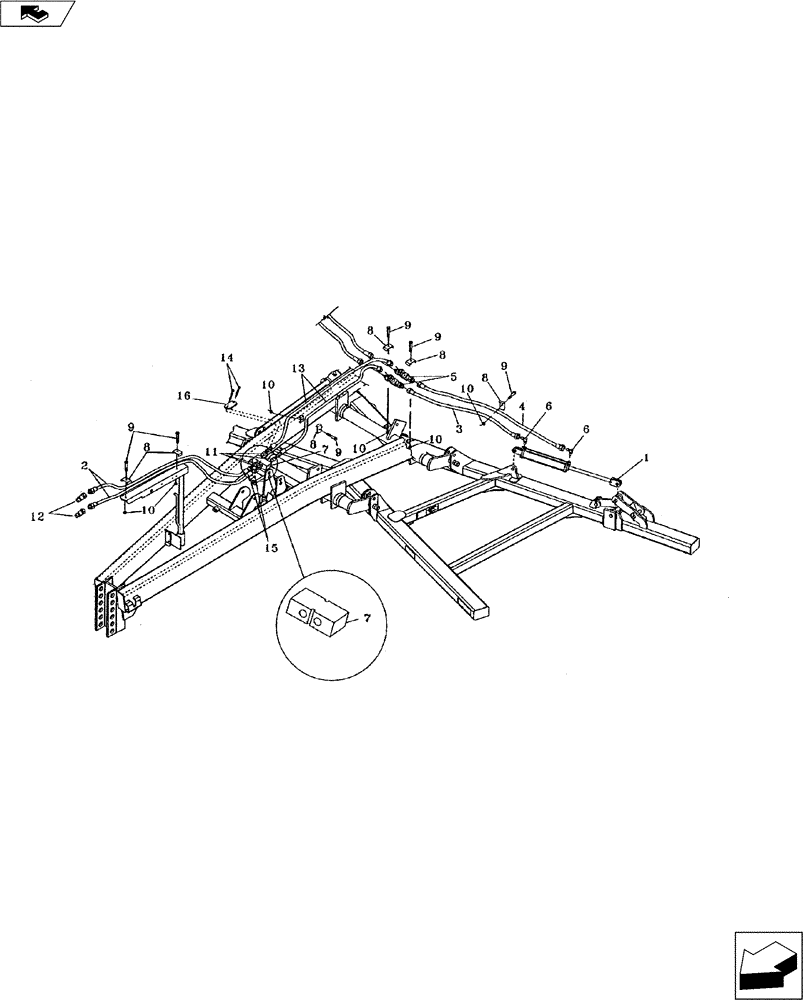

Запчасти Case IH 530B (35.100.02) - DISC ATTACHMENT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25330160

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

3" x 16" 3,000 p.s.i.

2шт.

1

25330160R

REMAN-HYD CYLINDER

530B, 730B, Both DMI ECOLO-TIGER®, 3" x 16", 3000 p.s.i, Serial Range: -JFH0033978

2шт.

1

25330160C

CORE-HYD CYLINDER

Return Number

2шт.

2

25610716

HYDRAULIC HOSE

3/8" x 144" Long

2шт.

3

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

2шт.

4

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

2шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

7

298624A1

VALVE

1шт.

8

06200125

HOSE CLAMP

6шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

4шт.

12

25705041

COUPLING

Male ISO-3/4" SAEF Hydraulic

2шт.

13

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

2шт.

14

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

15

86992211

NUT

1/4" NC Stover

2шт.

16

09987521

PLATE

Top

1шт.
