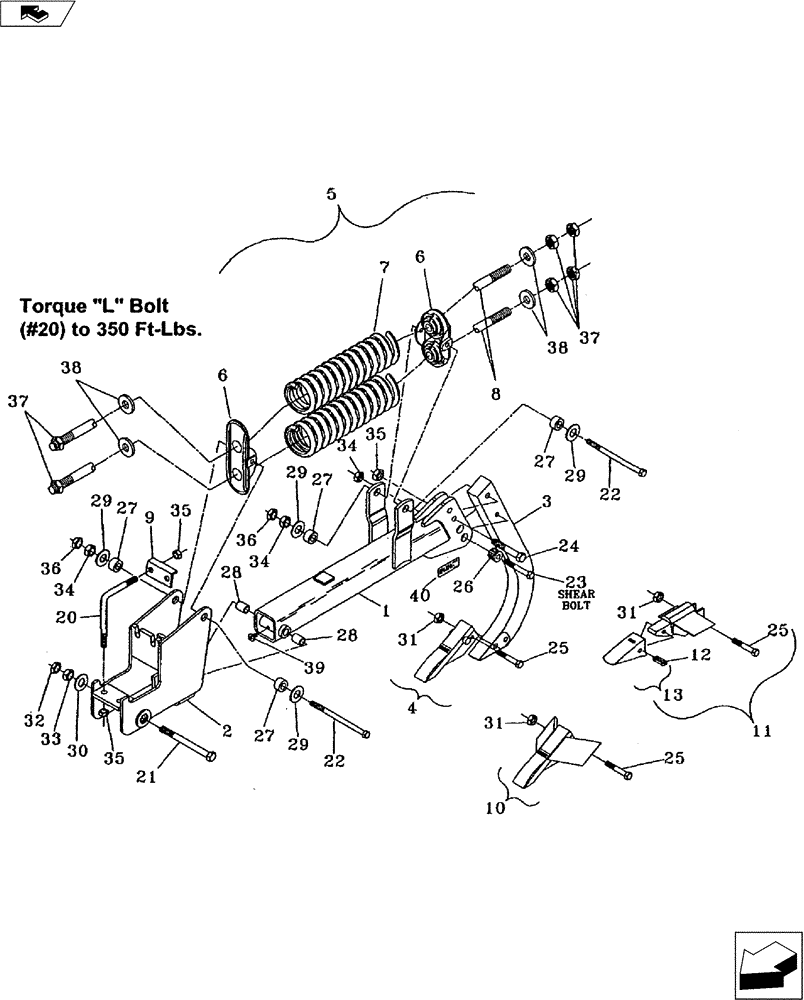

Запчасти Case IH 530B (75.200.07) - LEAD SHANK ASSEMBLY (75) - SOIL PREPARATION

1

09984810

BAR ASSY.

Lead Shank Beam

1шт.

2

09984820

SHANK

Lead Mount

1шт.

3

33010010

SHANK

Lead - Heat Traeted

1шт.

4

09729000

POINT

2" Parabolic Assembly

1шт.

5

09984815

SPRING

Assembly

1шт.

6

20090133

HINGE

Doulbe Spring Casting

2шт.

7

24162506

SPRING

Compression

2шт.

8

16510720

ROD

5/8" Threaded

2шт.

9

09561200

PLATE

1шт.

10

09729001

POINT

5" Tiger

1шт.

10

09729002

POINT

7" Tiger

1шт.

11

87460158

POINT RIPPER SHANK

7" Replaceable Tiger Point

1шт.

12

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8" Flex Pin

1шт.

13

09907015

TIP

Replaceable Point

1шт.

14

09900012

SHANK

Complete Lead Assembly Less Point(Not Shown)

1шт.

20

16512480

SPECIAL BOLT

3/4" NC x 7-9/16" Square L-Bolt

2шт.

21

16901435

BOLT

7/8" x 7-3/4" NC Hex., Gd. 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2" NC Hex. Bolt, Gd. 5

2шт.

23

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

24

16901215

BOLT

3/4" x 3-3/4" NC A325

1шт.

25

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

26

44006511

BUSHING

5/8" Serrated - Painted

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T. - Painted

2шт.

28

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

7/8" I.D. Hardened

2шт.

29

495-21069

WASHER,5/8"

4шт.

30

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" I.D.

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

1шт.

32

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

33

425-1014

NUT,7/8"-9, G5

1шт.

34

425-1010

NUT,5/8"-11, G5

3шт.

35

425-1012

NUT,3/4"-10, G5

5шт.

36

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

37

25-1010

NUT,5/8"-11, G5

6шт.

38

17411012

WASHER

5/8" x 1/4" Thick

4шт.

39

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

40

18534233

DECAL

Shear Bolt

1шт.
