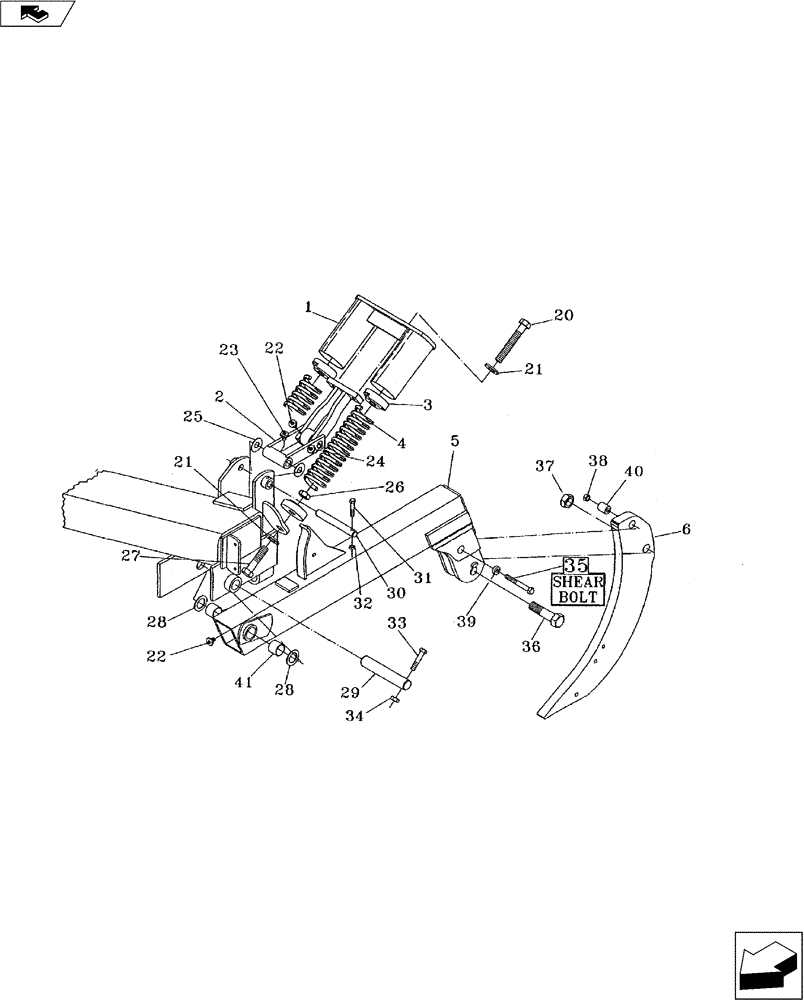

Запчасти Case IH 530B (75.200.01) - AUTO-RESET ASSEMBLY (75) - SOIL PREPARATION

1

09984675

SPRING BOX

A/R Canister

1шт.

2

09984650

LINK/SHACKLE

A/R Assy.

1шт.

3

20090090

SPRING BOX

Casting

4шт.

4

24162501

COIL SPRING

Compression

2шт.

5

09984645

BEAM ASSY.

Auto-Reset, Includes Ref. 39 & 41

1шт.

6

09983476

SHANK

Hard Surfaced, Includes Ref. 40

1шт.

20

16901225

CAPSCREW,Hex, 3/4" - 10 x 6 1/2", Gr 5

3/4" x 6 -1/2" NC Hex., Gd. 5

2шт.

21

NSS

NOT SOLD SEPARAT

3/4" Standard Washer

4шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

24

NSS

NOT SOLD SEPARAT

1/4" x 45' Self-Tapping Zerk

1шт.

25

17616020

WASHER

1" Dia. Machine Bushing - 14 Ga.

2шт.

26

425-1012

NUT,3/4"-10, G5

1шт.

27

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

28

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" Dia. - 14 gauge

2шт.

29

14892671

SPECIAL PIN,41.27mm OD x 230.12mm L

1-5/8" Dia. - H.T.

1шт.

30

14891665

HITCH PIN

1" Dia.

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

32

231-4246

LOCK NUT,3/8"-16, GB

1шт.

33

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

34

86992215

LOCK NUT,1/2"-13, GC

1шт.

35

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

36

16902016

BOLT

1-1/4" x 4" NC Hex., Gd. 5

1шт.

37

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

38

425-1010

NUT,5/8"-11, G5

1шт.

39

44006520

BUSHING

1-5/16"

2шт.

40

44006530

BUSHING

1-1/2"

1шт.

41

44016250

SPACER

1-5/8" Bushing

2шт.
