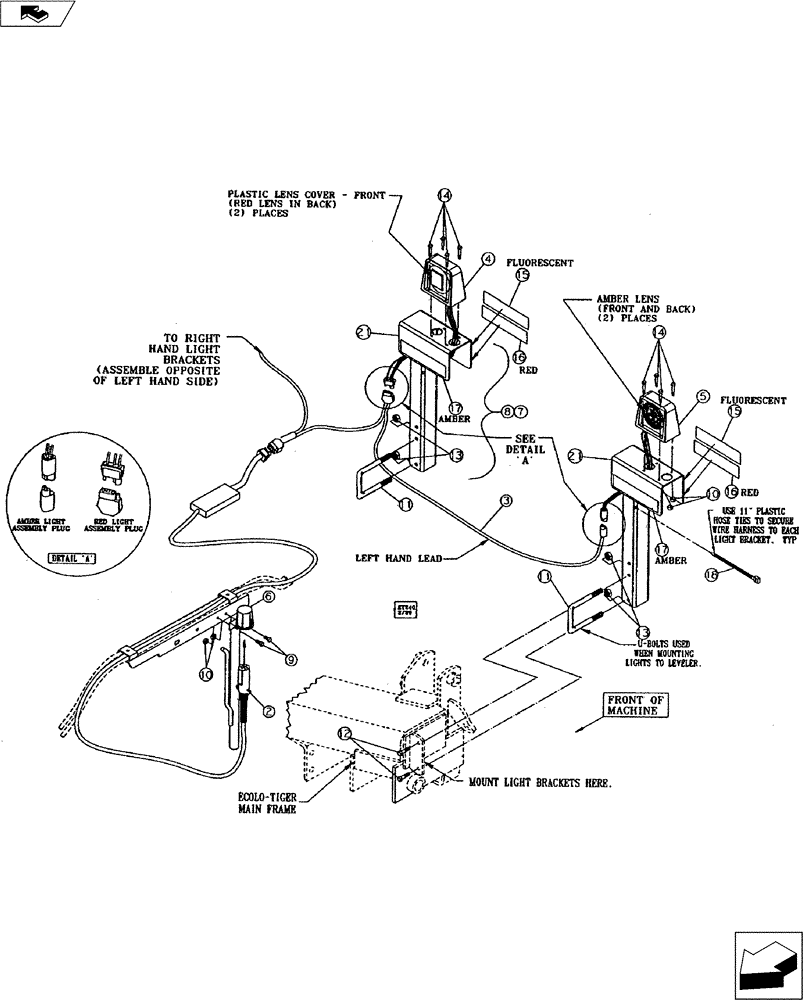

Запчасти Case IH 530B (55.404.01) - WARNING AND TAILLIGHT KIT (FOR ECOLO-TIGER MODEL 530B) (55) - ELECTRICAL SYSTEMS

2

27602311

WIRE HARNESS

Front

1шт.

3

27602221

WIRE HARNESS

Rear (530B)

1шт.

4

27602202

LIGHT ASSY.

Red

2шт.

5

27602201

LIGHT ASSY.

Amber

2шт.

6

27601214

HOLDER

Plug Storage

1шт.

7

27602410

BRACKET

Light Assy. LH, lncludes Ref. 15, 16, 17, & 21

2шт.

8

27602415

BRACKET

Light Assy. RH, lncludes Ref. 15, 16, 17, & 21

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

10

86992211

NUT

1/4" NC Hex.

18шт.

11

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4" (Used With Leveler Attachments)

4шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

231-4246

LOCK NUT,3/8"-16, GB

8шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

15

311865A1

REFLECTOR

Fluorescent Strip

4шт.

16

311863A1

REFLECTOR

Red

4шт.

17

311864A1

REFLECTOR

Amber

4шт.

18

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

1шт.

19

27601215

LENS

Replacement - Amber

1шт.

20

27601216

LENS

Replacement - Red

1шт.

21

27602400

SUPPORT

Light Bracket, Short

4шт.
