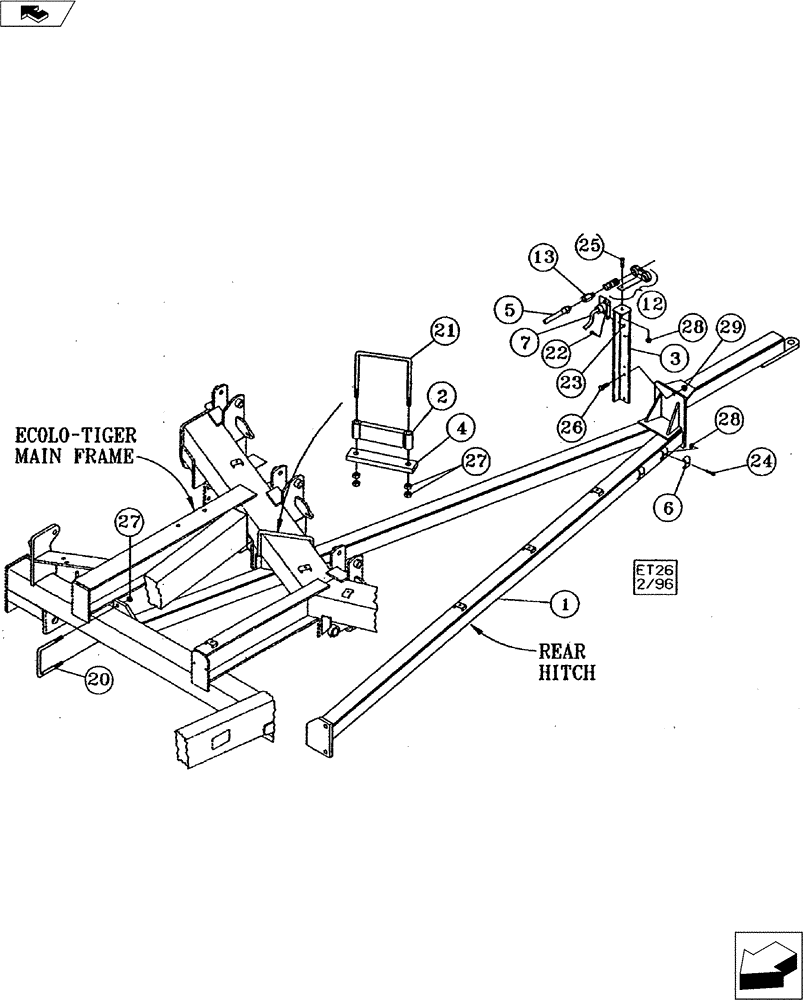

Запчасти Case IH 530B (39.110.02) - REAR HITCH (39) - FRAMES AND BALLASTING

1

09986350

ANGLE

Rear Hitch

1шт.

P0530130

FIELD ATTACHMENT

Rear Hitch, Includes Ref. 1 - 29

1шт.

2

09986315

SPACER

2шт.

3

09986325

STAND

Hose

1шт.

4

09986313

BRACKET

Strap

2шт.

5

25600428

HYDRAULIC HOSE,0.25" ID x 425.00", SAE 100R17

Long

2шт.

6

06200125

HOSE CLAMP

7шт.

7

27601226

WIRE HARNESS

Light

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP (Not Shown)

1шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (Not Shown)

1шт.

10

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (Not Shown)

1шт.

12

25705020

COUPLING, QUICK, FEM

Assy. (Includes Female Coupler and Bracket)

1шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

4шт.

20

16311338

U-BOLT

3/4" x 6" x 8.25"

2шт.

21

16311608

U-BOLT

3/4" Special, Gd. 7

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

86992211

NUT

1/4" NC Hex.

2шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

25

424-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 2

1шт.

26

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

27

86992217

NUT

3/4" NC Stover, Gd.

16шт.

28

231-4246

LOCK NUT,3/8"-16, GB

8шт.

29

86992215

LOCK NUT,1/2"-13, GC

2шт.
