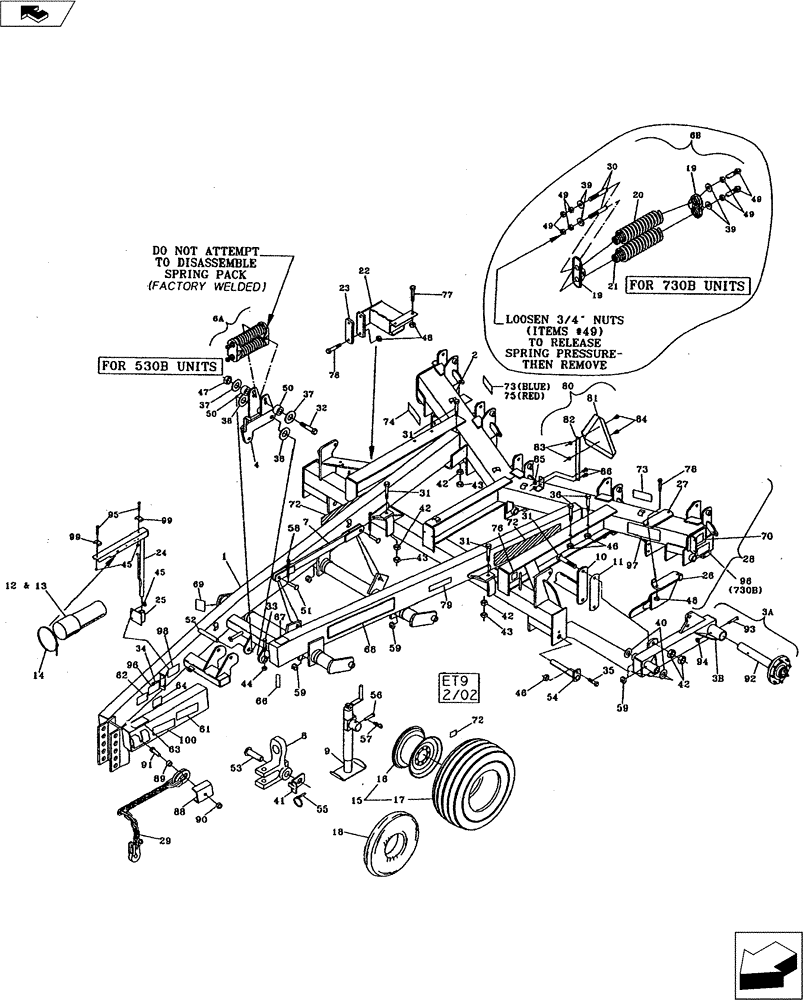

Запчасти Case IH 530B (39.100.01) - FRAME ASSEMBLY (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
09983640B
BAR ASSY.
Pull Frame (530B) - Blue
1шт.
1
09983650B
BAR ASSY.
Pull Frame (730B) - Blue
1шт.
2
09983420B
BAR ASSY.
Main Frame (530B) - Blue
1шт.
2
09983400B
BAR ASSY.
Main Frame (730B) - Blue
1шт.
3a
09984590
BAR ASSY.
Spindle Arm With Hub, L.H. (530B)
1шт.
3a
09984595
BAR ASSY.
Spindle Arm With Hub. R.H. (530B)
1шт.
3a
09984510
BAR ASSY.
Spindle Arm With Hub, L.H. (730B)
1шт.
3a
09984530
BAR ASSY.
Spindle Arm With Hub. R.H. (730B)
1шт.
3b
09984593
BAR ASSY.
Spindle Arm W/O Hub, L.H. (530B)
1шт.
3b
09984597
BAR ASSY.
Spindle Arm W/O Hub, R.H. (530B)
1шт.
3b
09984512
BAR ASSY.
Spindle Arm W/O Hub, L.H. (730B)
1шт.
3b
09984531
BAR ASSY.
Spindle Arm W/O Hub, R.H. (730B)
1шт.
4
09983951
BAR ASSY.
Cylinder Link
1шт.
6a
09900084
SPRING BOX
Relief Assy. (530B)
1шт.
Does not disassemble
1шт.
6b
09900085
SPRING BOX
Relief Assy. (730B)
1шт.
7
84401369
LINKAGE
Lift Link
1шт.
8
20092310
CLEVIS
Combo
1шт.
9
32230000
JACK
5000 lb
1шт.
10
09984470
TUBE,96.75" Length
Torque Tube
1шт.
11
09967141
WEDGE
Shim, Torque Tube
1шт.
12
30026030
TUBE
Operator's Manual Canister
1шт.
14
214-1452
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
Worm Gear
1шт.
15
10014172
LAND WHEEL
16.5 x 16.1 (10-Ply) Tubeless Assy. (530B) White Rim
2шт.
15
10014171
LAND WHEEL
16.5 x 16.1 (10-Ply) Tube Type Assy. (530B) White Rim
2шт.
15
10014170
LAND WHEEL
16.5 x 16.1 (14-Ply) Tubeless Assy. (730B) White Rim
2шт.
15
10014169
LAND WHEEL
16.5 x 16.1 (14-Ply) Tube Type Assy. (730B) White Rim
2шт.
15
10016222
LAND WHEEL
425/65R x 22.5 Tire Assy. (Option) White Rim
2шт.
16
10114169
LAND WHEEL
14 x 16.1 8-Hole, White
2шт.
16
10113222
LAND WHEEL
13.00 x 22.5 8-Bolt, White (Option)
2шт.
17
NSS
NOT SOLD SEPARAT
16.5L x 16.1 10-Ply Tire
2шт.
17
NSS
NOT SOLD SEPARAT
16.5L x 16.1 14-Ply Tire
2шт.
17
NSS
NOT SOLD SEPARAT
425/65R x 22.5 Tire
2шт.
18
NSS
NOT SOLD SEPARAT
16.5 x 16.1 Tube
2шт.
19
20090133
HINGE
Double Spring Casting (730B Only)
2шт.
21
24143816
SPRING
Compression (730B Only)
2шт.
22
09984360
BEAM ASSY.
Lead Shank Tube. R.H.
1шт.
22
09984370
BEAM ASSY.
Lead Shank Tube. L.H.
1шт.
23
09576610
LINKAGE
Flat
2шт.
25
09983458
BAR ASSY.
Mount Weldment
1шт.
26
09983290
BRACKET
Mud Scraper. L.H.
1шт.
26
09983295
BRACKET
Mud Scraper. R.H.
1шт.
27
09983240
BRACKET
Mounting Flat
2шт.
28
09900111
BAR ASSY.
Mud Scraper Kit
1шт.
29
1032162
CHAIN
30,400 lb ASE Safety
1шт.
30
16510820
THREADED ROD
(730B Only)
2шт.
31
413-1448
BOLT,Hex, 7/8" - 9 x 3", Gr 5
NC
10шт.
32
16901025
CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5
5/8" x 7-1/2" NC Hex. Bolt
2шт.
33
413-740
BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5
NC
1шт.
34
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
NC
2шт.
35
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
NC
2шт.
36
413-1080
BOLT,Hex, 5/8" - 11 x 5", Gr 5
NC
4шт.
37
495-21069
WASHER,5/8"
Standard
4шт.
38
17620020
BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L
1-1/4" Machine
1шт.
39
17411012
WASHER
(730B Only)
4шт.
40
17627010
WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk
1-5/8" x 14 Ga. Washer
4шт.
41
09967531
BRACKET
Klik Pin Protector
1шт.
42
425-1014
NUT,7/8"-9, G5
NC Hex.
14шт.
43
425-1414
JAM NUT,Jam, 7/8"-9, G5
NC Hex.
6шт.
44
86992214
LOCK NUT
7/16" NC Stover
1шт.
45
425-106
NUT,3/8"-16, Cl 5
NC Hex.
4шт.
46
425-1010
NUT,5/8"-11, G5
NC Hex.
6шт.
47
86992216
NUT
5/8" NC Stover
2шт.
48
425-1012
NUT,3/4"-10, G5
NC Hex.
12шт.
49
25-1010
NUT,5/8"-11, G5
NC Hex., Black (730B Only)
8шт.
50
44006200
BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L
5/8" Special - H.T.
4шт.
51
14816201
SMALL PIN
1" Dia. x 2-3/32" EL
2шт.
52
14892066
PIN
1-1/4" Dia. x 8-1/2"
1шт.
53
14820520
HITCH PIN
1-5/8"
1шт.
54
09983475
BAR ASSY.
Pin
2шт.
55
D33805
PIN
Klik
1шт.
56
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8" Dia. x 3-1/8" Clevis
1шт.
57
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin
1шт.
58
432-1624
COTTER PIN,1/4" x 1 1/2"
2шт.
59
219-86
LUBE NIPPLE,1/8" NPTF
NPT Straight Zerk
9шт.
61
18534228
DECAL
Caution Sign
1шт.
62
18534262
DECAL
Level Frame
1шт.
63
18534140
WARNING DECAL
Sign
1шт.
64
18534107
DECAL
Patent
1шт.
66
18534240
DECAL
RedlGreen
1шт.
67
18534241
DECAL
Information
1шт.
68
18532031
DECAL
ecolo-tiger 530B Left Side - Biue
1шт.
68
18532032
DECAL
ecolo-tiger 530B Right Side - Blue
1шт.
68
18532033
DECAL
ecolo-tiger 730B Left Side - Blue
1шт.
68
18532034
DECAL
ecolo-tiger 730B Right Side - Blue
1шт.
69
18534258
DECAL
Depth Indicator
1шт.
70
18534113
DECAL
Bolt Torque & Tire Infl. (530B Unit)
1шт.
70
18534120
DECAL
Bolt Torque & Tire Infl. (730B Unit)
1шт.
71
18532035
DECAL
Tiger Stripe - 530B Units Only - Blue
2шт.
72
18534162
DECAL
Tire Inflation 16.5 x 16/1 10 Ply Tire
2шт.
72
18534161
DECAL
Tire lnflation 16.5 x 16.1 14 Ply Tire
2шт.
72
18534164
DECAL
Tire lnflation 425/65R Tire (Option)
2шт.
73
18534259
DECAL
DMI Logo
1шт.
74
18534307
DECAL
Helping Plants Thrive
1шт.
76
NSS
NOT SOLD SEPARAT
Serial Plate
1шт.
77
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
NC
4шт.
78
413-12136
BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5
NC
8шт.
79
311864A1
REFLECTOR
Yellow (530B Only)
2шт.
80
18581004
PRODUCT GRAPHIC
SMV Kit, Indudes Ref. 81-86
1шт.
81
311860A1
EMBLEM
SMV Sign
1шт.
82
09983415
BRACKET
SMV
1шт.
83
86992211
NUT
1/4" NC Hex.
2шт.
84
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
NC
2шт.
86
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
NC
2шт.
87
12000900
PAINT
Touch-Up Kit - Blue
1шт.
88
04681210
BRACKET
1шт.
89
04681211
BUSHING
Spacer
1шт.
90
86992219
LOCK NUT
1" NC Stover
1шт.
91
413-1648
BOLT,Hex, 1" - 8 x 3", Gr 5
NC
1шт.
92
28050891
HUB ASSY.
50-8 And Spindle (530B)
2шт.
92
28560803
HUB ASSY.
60-8B And Spindle (730B)
2шт.
93
413-880
BOLT,Hex, 1/2" - 13 x 5", Gr 5
NC, ZP
2шт.
95
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
NC
1шт.
95
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
NC
1шт.
96
18534227
DANGER DECAL
Sign
2шт.
97
18534343
DECAL
Yield-Till
1шт.
98
18534333
DANGER DECAL
Sign
1шт.
99
06200125
HOSE CLAMP
Clip
1шт.
100
18534347
WARNING DECAL
Sign, Towing
1шт.
Выбрано товаров: 123
