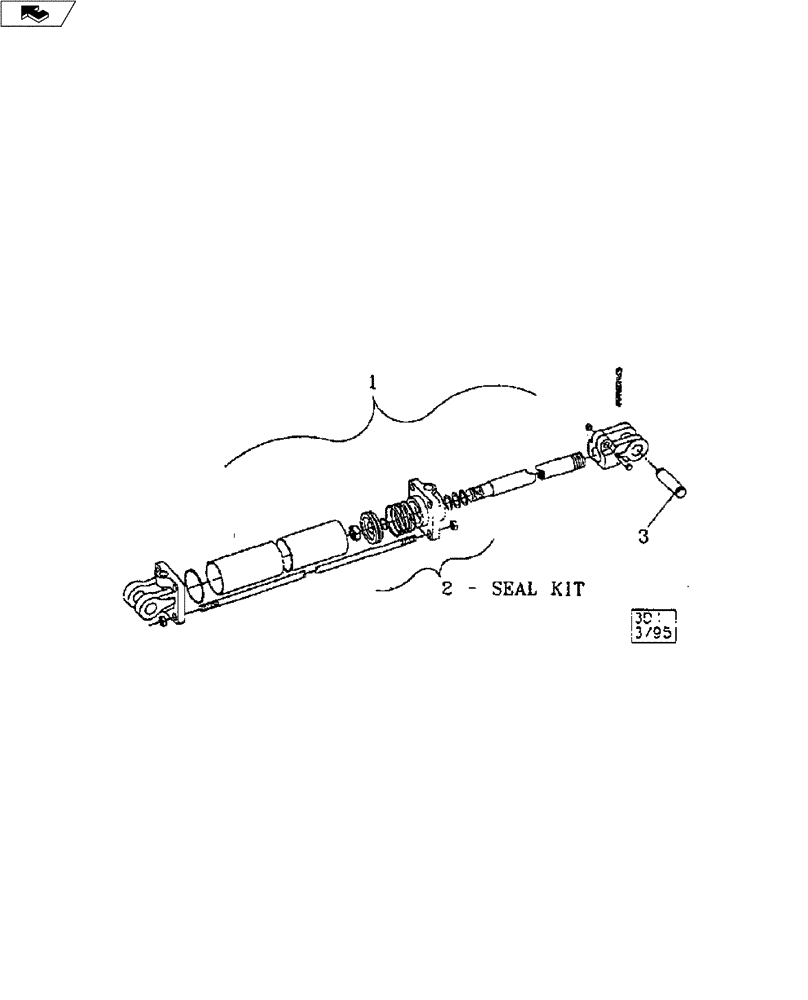

Запчасти Case IH 530 (35.100.02) - HYDRAULIC CYLINDER ASSEMBLY (3,000 PSI) (35) - HYDRAULIC SYSTEMS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" Bore x 8" Stroke - 3000 p.s.i. SAE Ports (20-1/4" Closed), Start Serial: 522399

1шт.

1

25330121

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 304.8mm Stroke

3" Bore x 12" Stroke Hyd. - 3000 p.s.i. SAE Ports (22-1/4" Closed), Start Serial: 522399

1шт.

1

25335121

CYLINDER

3-1/2" Bore x 12" Stroke - 3000 p.s.i. SAE Ports (22-1/4 Closed), Start Serial: 522399

1шт.

25335120R

REMAN-HYD CYLINDER

530;730 , Start Serial : 522399 , Reman For New P/N 25335121

1шт.

25335120C

CORE-HYD CYLINDER

Return Number

1шт.

2

25833007

SEAL KIT

1-1/4" Dia. Rod - 3"

1шт.

2

25833526

SEAL KIT

Seal - 1-1/2" Dia. Rod - 3-1/2"

1шт.

3

25890100

KIT

Clevis Pins, 1" x 3", Set of 2

1шт.
