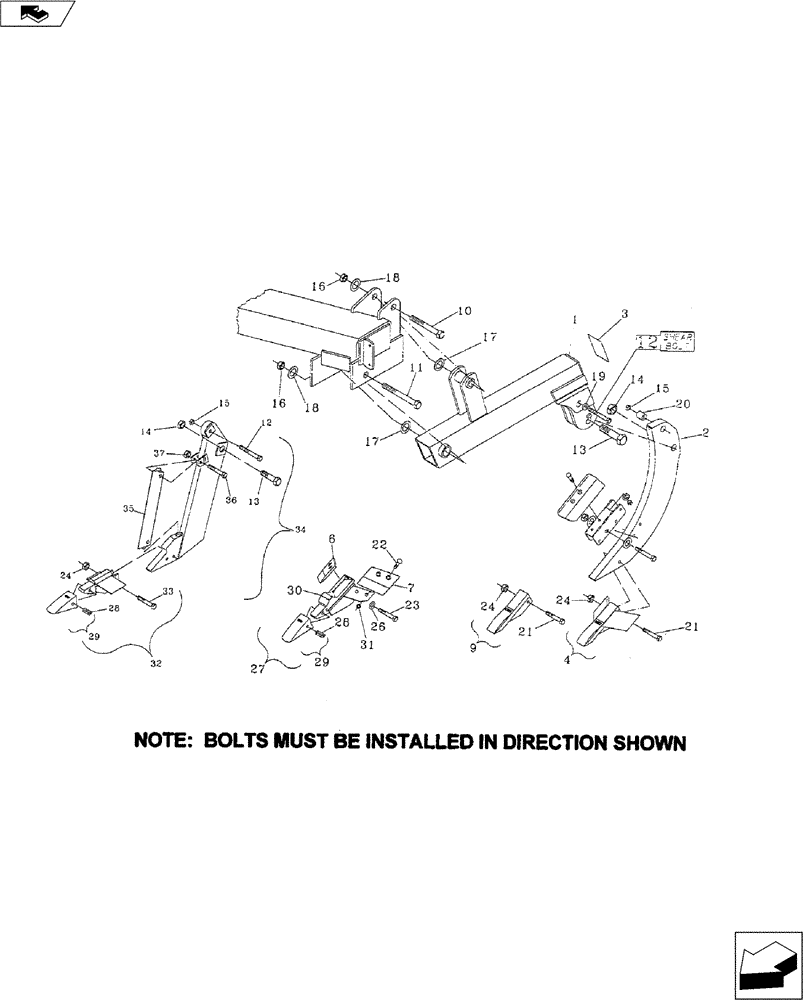

Запчасти Case IH 530 (75.200.08) - SHEAR BOLT ASSEMBLY (75) - SOIL PREPARATION

1

09984720

BEAM ASSY.

Shear Bolt

1шт.

2

09983476

SHANK

Hard Surfaced, Includes Ref. 20

1шт.

3

18534244

REFLECTOR

Red (Outside Shanks Only)

1шт.

4

09907000

POINT

10" Non-Replaceable Tip Tiger Assembly

1шт.

6

09907002

FRAME

R.H. Wing, Includes Ref. 22, 24

1шт.

7

09907003

FRAME

L.H. Wing , Includes Ref. 22, 24

1шт.

9

09832000

CHISEL

2" Straight Point Assy.

1шт.

10

16902045

CAPSCREW,Hex, 1 1/4" - 7 x 7", Gr 5

1-1/4" x 7" NC Hex. Bolt

1шт.

11

16902055

CAPSCREW,Hex, 1 1/4" - 7 x 7 3/4", Gr 5

1-1/4" x 7-3/4" NC Hex. Bolt

1шт.

12

16010205

BOLT

5/8" x 5" NC Hex., Gd. 5

2шт.

13

16020164

BOLT

1-1/4" x 4" NC Hex., Gd. 5

1шт.

14

NSS

NOT SOLD SEPARAT

1-1/4" NC Jam Nut

1шт.

15

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut, Gd. 2

1шт.

16

NSS

NOT SOLD SEPARAT

1-1/4" NC Hex. Nut, Gd. 2

2шт.

17

17620010

BUSHING

1-1/4" Machine

2шт.

18

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machine, 10 Gauge

2шт.

19

44006520

BUSHING

1-5/1 6"

2шт.

20

44006530

BUSHING

1-1/2"

1шт.

21

16008114

BOLT

1/2" x 2-3/4" Hex., Gd. 5

1шт.

22

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" NC Plow Bolt

4шт.

23

16008125

BOLT

1/2" X 3" NC Hex., Gd. 5

1шт.

24

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut, Gd. 2

1шт.

25

NSS

NOT SOLD SEPARAT

1/2" Standard Washer (Not Shown)

1шт.

26

NSS

NOT SOLD SEPARAT

1/2" Standard Washer

1шт.

27

09907010

POINT

10" Replaceable Tip Tiger

1шт.

28

14890625

CLEVIS PIN

3/8" Flex

1шт.

29

09907015

TIP

Replaceable, Includes Ref. 28

1шт.

30

09907011

TIP

Replaceable Pt. Base, Includes Ref. 23, 25-26

1шт.

31

14090801

NUT

1/2" Flange Lock

4шт.

32

09729001

POINT

5" Wing Tip Tiger Replaceable Tip Point Assembly

1шт.

32

09729004

FROG, SADDLE FROG

7" Wing Tip Tiger Replaceable Tip Point Assembly

1шт.

33

16008095

BOLT

1/2" x 2-1/4" NC Hex., Gd. 5

1шт.

34

09983485

SHANK

MRD Assembly, Includes Ref. 35-37

1шт.

35

09581761

BAR ASSY.

MRD Shin Wedge

1шт.

36

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" NC Hex. Bolt

1шт.

37

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Lock Nut

1шт.
