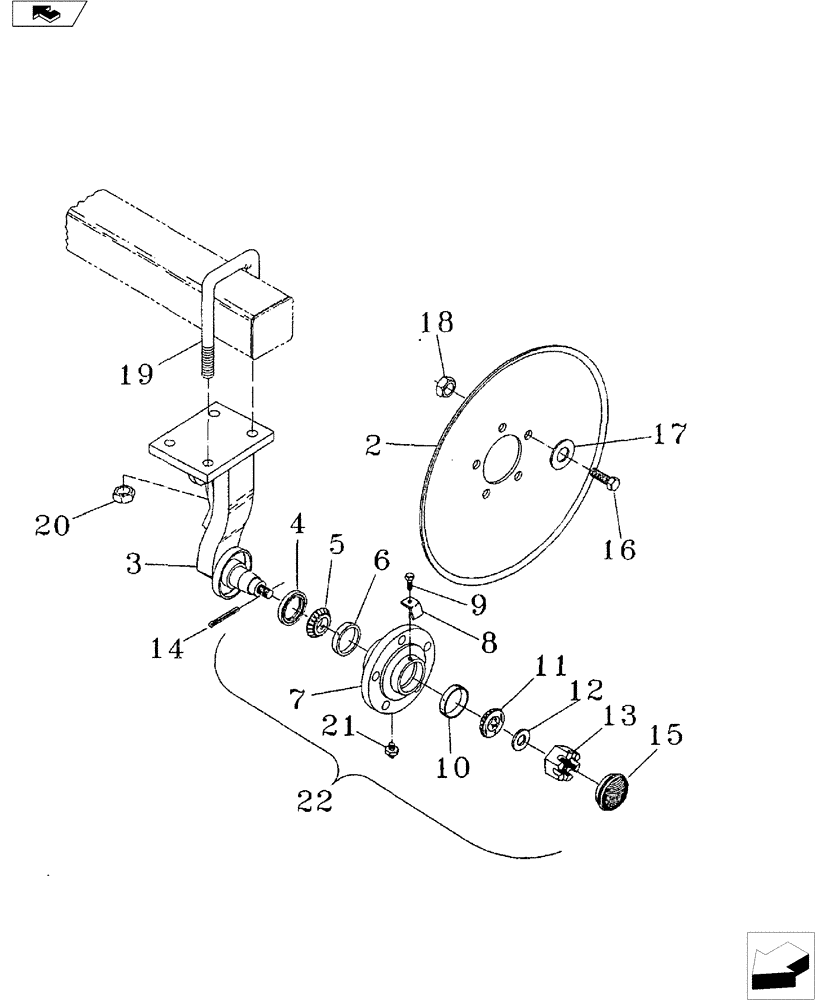

Запчасти Case IH 530 (75.200.07) - DISC MOUNT ASSEMBLY (75) - SOIL PREPARATION

1

09985200

BAR ASSY.

Center Disc Mount (Not Shown)

1шт.

1

09985260

SHANK

Disc Mount Assembly - R.H. (Not Shown)

1шт.

1

09985250

BAR ASSY.

Disc Mount Assembly - L.H. (Not Shown)

1шт.

2

33551860

PLOW DISC

18" Blade to 221 106

1шт.

2

33552055

DISK DRILL

20" Blade

1шт.

2

33592050

PLOW DISC

20" Notched Blade

1шт.

2

33552255

PLOW DISC

22" Blade

1шт.

3

09985210

BAR ASSY.

Center Disc Mount Less Hub

1шт.

3

09985280

BRACKET

Disc Mount Less Hub - R.H.

1шт.

3

09985270

BRACKET

Disc Mount Less Hub - L.H.

1шт.

4

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

3.00" O.D.- Carbox 115

1шт.

5

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1 .62" - Timken LM501349

1шт.

6

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D.- Timken LM501310

1шт.

7

28705005

HUB

Disc with Cups (Not Shown)

1шт.

8

09970770

RETAINER

Dust Cap

1шт.

9

16005025

BOLT

5/16" x 1/2" NC Hex., Gd. 5

1шт.

10

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D.- Timken LM67010 (Not Shown)

1шт.

11

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" - Timken LM67048

1шт.

12

17915000

WASHER

7/8" Hardened (Not Shown)

1шт.

13

14051403

NUT

7/8" NF Slotted Hex. (Not Shown)

1шт.

14

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

15

28490001

HUB CAP

Dust (Not Shown)

1шт.

16

16008088

BOLT

1/2" x 2" NC Hex., Gd. 8

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" I.D. x 1-3/8" O.D. Special

5шт.

18

14010805

NUT

1/2" NC Hex. Lock, Gd. 5

5шт.

19

16312240

U-BOLT

3/4" NC x 4" x 6" Square

2шт.

20

14001205

NUT

3/4" NC Hex., Gd. 5

4шт.

21

NSS

NOT SOLD SEPARAT

1/4"-28 Straight Zerk (Not Shown)

1шт.

22

28199901

KIT

Hub Assembly Complete (Not Shown)

1шт.
