(75.200.04) - LEAD SHANK ASSEMBLY

Запчасти Case IH 530 (75.200.04) - LEAD SHANK ASSEMBLY (75) - SOIL PREPARATION

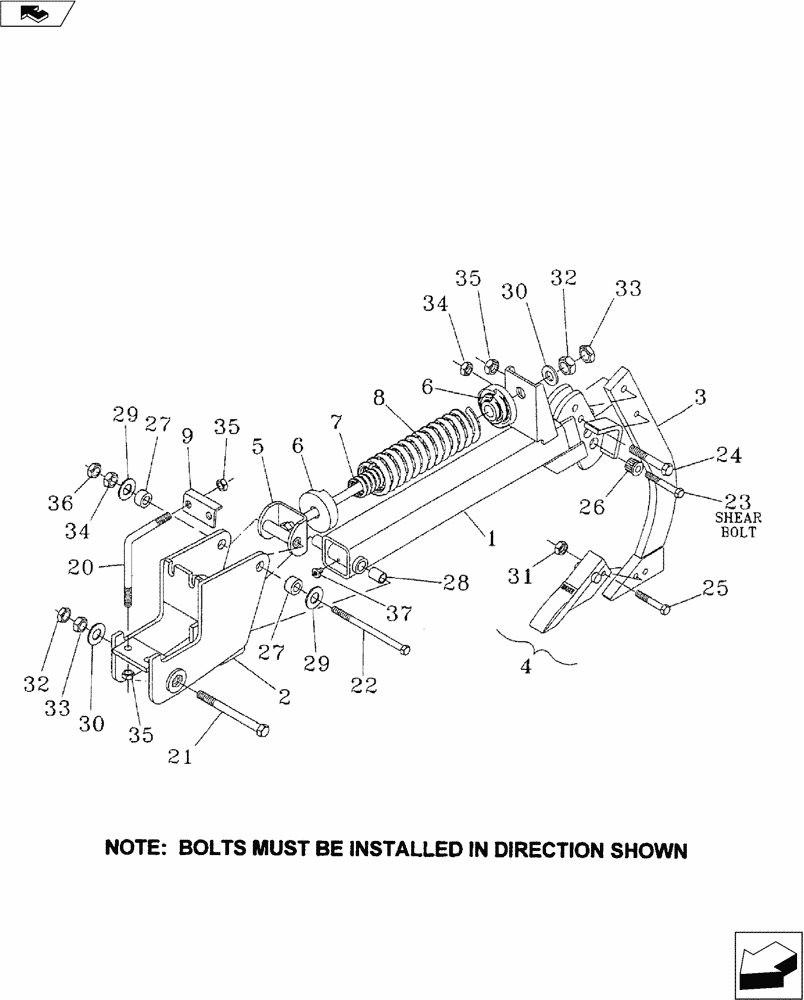

Схема запчастей Case IH 530 - (75.200.04) - LEAD SHANK ASSEMBLY (75) - SOIL PREPARATION
35
20
32
21
34
27
27
3
3
30
1
24
29
34
6
7
9
35
35
4
37
29
25
22
2
33
28
26
8
30
36
32
5
31
23
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09984318

BEAM ASSY.

Lead Shank Incl 37

1шт.

2

09984305

SHANK

Lead Mount

1шт.

3

09984341

SHANK

Lead - Heat Treated

1шт.

4

09729000

POINT

2" Parabolic Assy.

1шт.

5

09984335

SPECIAL BOLT

Pivot

1шт.

6

20090120

SPRING BOX

Double Casting

2шт.

7

24143815

SPRING

7/16" Wire Compression

1шт.

8

24162501

COIL SPRING

5/8" Wire Compression

1шт.

9

09561200

PLATE

1шт.

20

16512480

SPECIAL BOLT

3/4" NC x 7-9/16" Square

1шт.

21

16901430

BOLT

7/8" x 7-1/2" NC Hex., Gd. 5

1шт.

22

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2" NC Hex. Bolt, Gd. 5

1шт.

23

16010165

BOLT

5/8" x 4" NC Hex Bolt, Gd. 5 Shear Bolt

1шт.

24

16901215

BOLT

3/4" x 3-3/4" NC A325

1шт.

25

16008095

BOLT

1/2" x 2-1/4" NC Hex, Gd. 5

2шт.

26

44006511

BUSHING

5/8" Serrated - Painted

4шт.

27

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T. - Painted

2шт.

28

44008752

SPARE PART

7/8" I.D. Hardened

2шт.

29

495-21069

WASHER,5/8"

5/8" Standard Washer

2шт.

30

17614030

BUSHING

7/8" Machine, 10 Gauge

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

1/2" NC Hex., Nut, Gd. 2

2шт.

32

425-1414

JAM NUT,Jam, 7/8"-9, G5

7/8" NC Jam Nut

2шт.

33

425-1014

NUT,7/8"-9, G5

7/8" NC Hex., Nut, Gd. 2

2шт.

34

425-1010

NUT,5/8"-11, G5

5/8" NC Hex., Nut, Gd. 2

2шт.

35

14001205

NUT

3/4" - 10 NC Hex., Gd. 5

5шт.

36

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8" NC Hex., Jam Nut

1шт.

37

219-86

LUBE NIPPLE,1/8" NPTF

1/8" NPT Self-Tapping Zerk

1шт.
