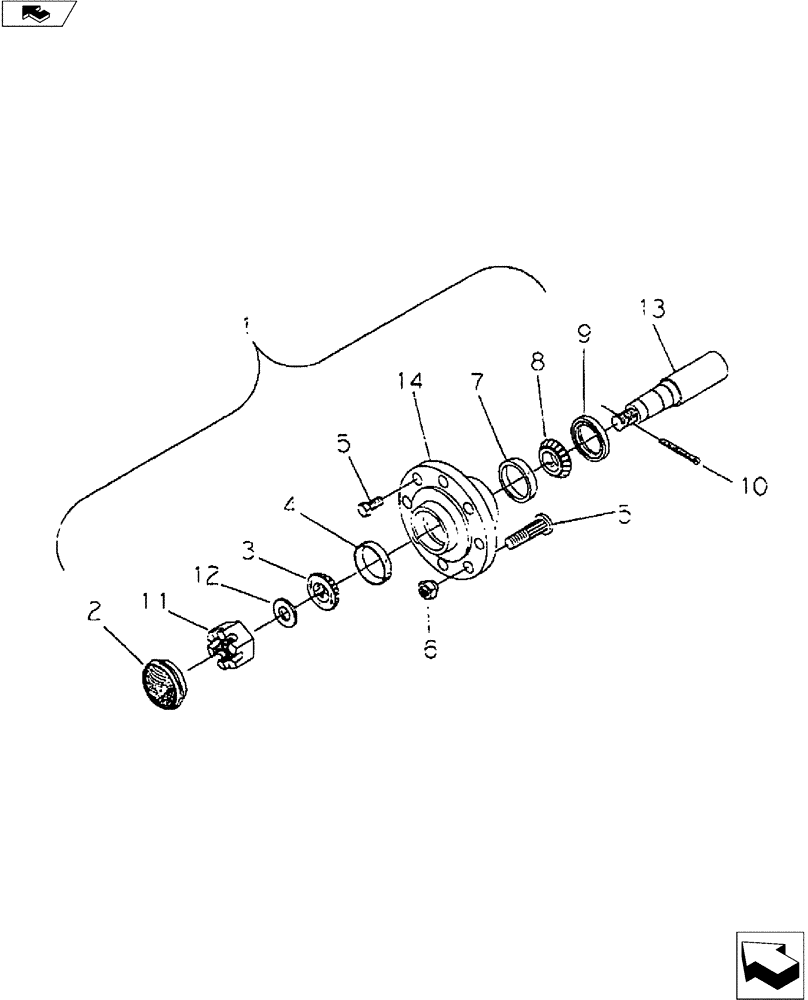

Запчасти Case IH 530 (44.100.01) - HUB & SPINDLE ASSEMBLIES (44) - WHEELS

1

28163310

HUB ASSY.

633 4-Bolt, Includes Ref. 2-9

1шт.

1

28150800

HUB ASSY.

50-8 8-Bolt, Includes Ref. 2-9

1шт.

1

28660800

HUB ASSY.

60-8B 8-Bolt, Includes Ref. 2-9

1шт.

2

28463300

HUB CAP

633

1шт.

2

28460800

DUST CAP

Hub, 50-8, 60-8B

1шт.

3

21870750

BEARING CONE

0.75" Bore - Timken LM11949, 633

1шт.

3

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.62" Bore - Timken LM501349, 50-8, 60-8B

1шт.

4

21881780

BEARING CUP

1.78" 0.D - Timken LM11910, 633

1шт.

4

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89" O.D. - Timken LM501310, 50-8, 60-8B

1шт.

5

S0000210

BOLT

1/2" x 1-1/4" NF Hex., Gd. 5, 633

4шт.

5

16410087

STUD

5/8" x 2-1/4" NF Wheel, 50-8, 60-8B

8шт.

6

14081003

WHEEL NUT

5/8" NF Wheel, 50-8, 60-8B

8шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. - Timken LM67010, 633

1шт.

7

21883265

ROLLER BEARING,2" ID x 3.22 mm OD x 0.8652 mm

3.22 " O.D. - Timken JLM104910, 50-8

1шт.

7

21883541

BEARING, CUP

3.54" O.D. - Timken JLM506810, 60-8B

1шт.

8

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore - Timken LM67048, 633

1шт.

8

21872005

ROLLER BEARING,50 mm ID

2.00" Bore - Timken LM104948, 50-8

1шт.

8

21872165

BEARING

2.165" Bore Cone - Timken JLM506848E, 60-8B

1шт.

9

21931501

SEAL ASSY.

1.50" I.D. x 2.33: O.D. - CR 14975, 633

1шт.

9

21932501

OIL SEAL

2.50" I.D. x 3.25" O.D. - CR 24904, 50-8

1шт.

9

21932750

SEAL

2.75" I.D. x 3.75" O.D. - CR 27394, 60-8B

1шт.

10

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin, 633

1шт.

10

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin, 50-8, 60-8B

1шт.

11

NSS

NOT SOLD SEPARAT

3/4" NF Slotted Nut, 633

1шт.

11

NSS

NOT SOLD SEPARAT

1 " NF Slotted Nut, 50-8, 60-8B

1шт.

12

NSS

NOT SOLD SEPARAT

3/4" SAE Washer, 633

1шт.

12

17916100

WASHER

1" Dia., 50-8, 60-8B

1шт.

13

28363311

AXLE

Spindle, 633

1шт.

13

28350801

SPINDLE

50-8

1шт.

13

28860801

SPINDLE

60-8B

1шт.

13

28860803

SPINDLE

Drilled, 60-8B

1шт.

14

28263340

HUB

633 With Cups

1шт.

14

28250800

HUB ASSY.

50-8 With Cups

1шт.

14

28760800

HUB ASSY.

60-8B With Cups

1шт.

15

28063321

HUB ASSY.

633 Spindle (Not Shown), Spindle O.A.L. 7-19/32"

1шт.

15

28050871

HUB ASSY.

50-8 (Not Shown)

1шт.

15

28560803

HUB ASSY.

60-8B Spindle (Not Shown)

1шт.
