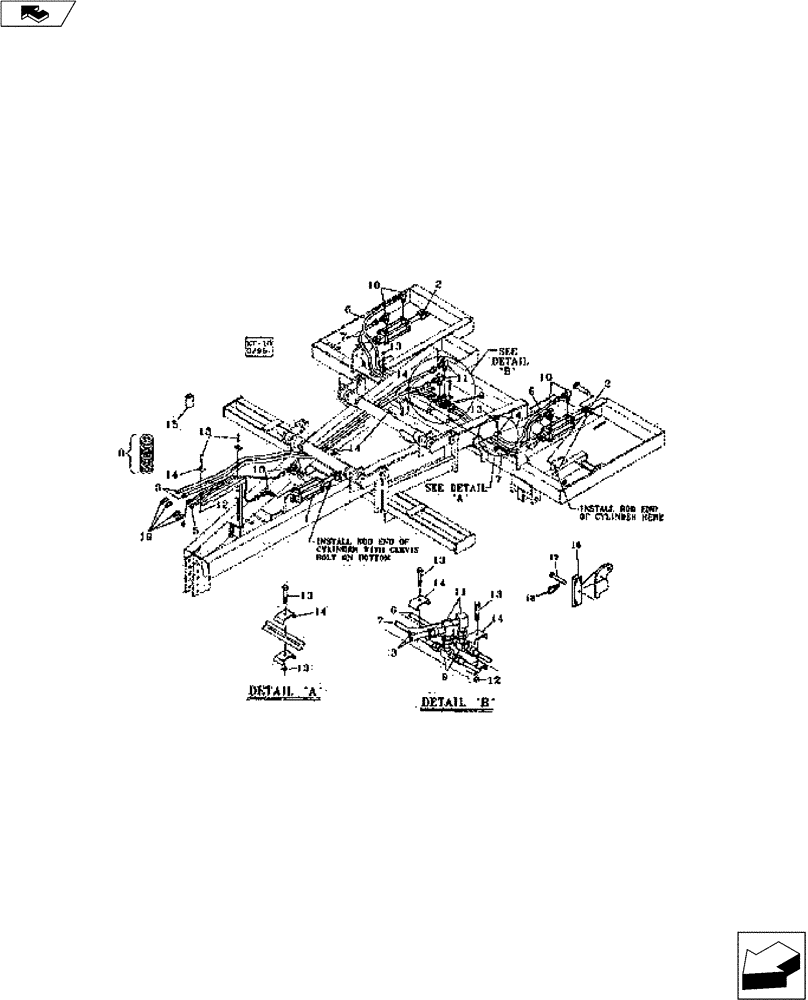

Запчасти Case IH 527B (35.100.01) - 527B HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" , 3000 Psi

1шт.

2

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10", 3000 Psi

2шт.

2

25330101R

REMAN-HYD CYLINDER

527B DMI ECOLO-TIGER®, 3000 Psi

2шт.

2

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

3

25610901

HYDRAULIC HOSE

1/2" x 196" Long

2шт.

4

25610712

HYDRAULIC HOSE

3/8" x 110" Long

1шт.

5

25610713

HYDRAULIC HOSE

3/8" x 118" Long

1шт.

6

25600651

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R17

Long

2шт.

7

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

Long

2шт.

8

25890100

KIT

Stroke - 1-1/4"

4шт.

9

218-594

TEE,3/4"-16, 37 Degree

JlCM

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JlCM x SAEM

6шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

JlCM x JlCF

2шт.

12

425-106

NUT,3/8"-16, Cl 5

NC Hex. Gd. 5

9шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

x 1- NC Gd. 5

6шт.

14

06200125

HOSE CLAMP

9шт.

15

09650207

STAY

Disc Cylinder Stop - Black

1шт.

16

04632700

STAY

Cylinder Stop

2шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" Clevis

3шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

3шт.

19

25705041

COUPLING

Male ISO-3/4" SAEF Hydraulic

4шт.
