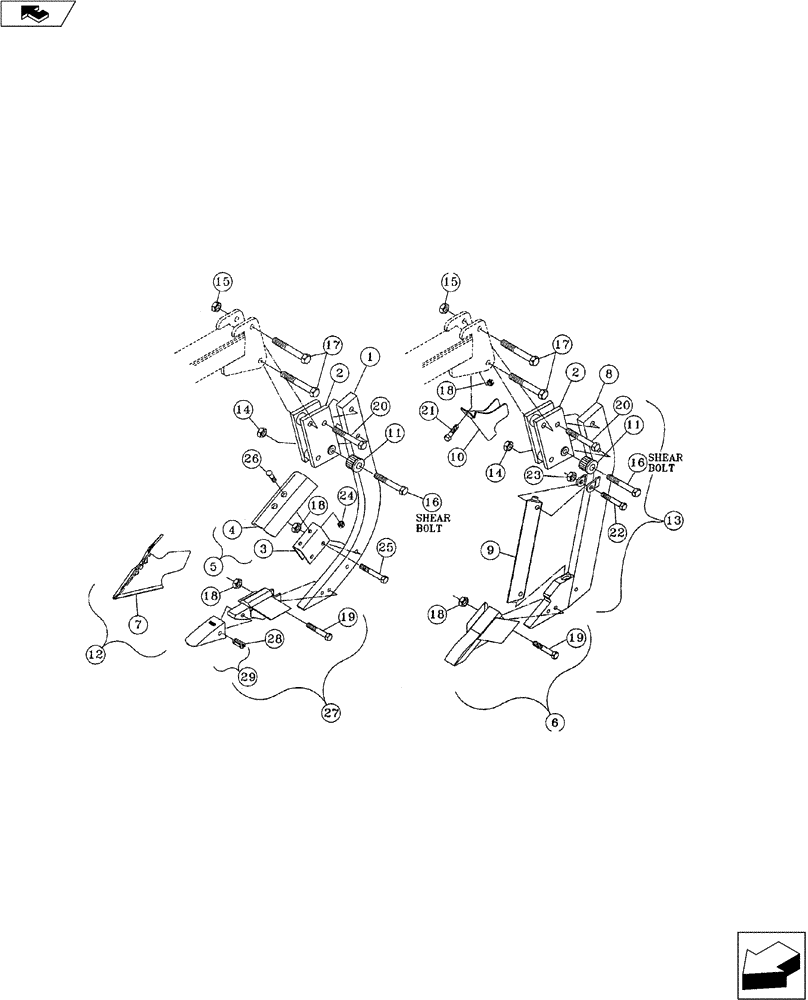

Запчасти Case IH 527B (75.200.02) - SHANKS (75) - SOIL PREPARATION

1

33020040

SHANK

Parabolic

1шт.

2

09651570

HOLDER

Shank, MRD & Parabolic

1шт.

3

09580750

HITCH BRACKET

Covering Attachment

1шт.

4

33310079

SHOVEL

4" Covering Point

1шт.

5

09580060

BRACKET

Parabolic Covering Attachment, Includes Ref. 6, 7 & Hardware

1шт.

6

09729000

POINT

2" Parabolic W/Hardware

1шт.

6

09729001

POINT

5" Parabolic Wing

1шт.

6

09729002

POINT

7" Q/P Tiger

1шт.

7

33310080

LANDSIDE

6" Wide Furrower Shovel

1шт.

8

09581750

SHANK

MRD

1шт.

9

09581760

WEDGE

MRD Shin

1шт.

10

09651575

BRACKET

MRD Stalk Guard

1шт.

11

44006510

BUSHING

5/8" Serrated

1шт.

12

09650060

PLOW

6" Covering Attachment, Includes Ref. 6, 10 & Hardware

1шт.

13

09581705

SHANK

MRD

1шт.

14

425-1010

NUT,5/8"-11, G5

NC Hex. Gd. 5

1шт.

15

425-1012

NUT,3/4"-10, G5

NC Hex. Gd. 5

3шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

NC ZP, Gd. 5

1шт.

17

16901205

BOLT

3/4" x 4-3/4" UNC A325

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

NC Hex. Gd. 5

1шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

NC Gd. 5

1шт.

20

16901215

BOLT

3/4" x 3-3/4" NC A325

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1" NC ZP, Gd. 5

1шт.

22

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

NC ZP, Gd. 5

1шт.

23

86992215

LOCK NUT,1/2"-13, GC

NC Gd. 5

1шт.

24

425-107

NUT,7/16"-14, G5

NC Hex.

2шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC ZP Gd. 5

2шт.

26

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

NC

2шт.

27

09729004

FROG, SADDLE FROG

7" Replaceable Tip Point Assembly

1шт.

28

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8" Flex Pin

1шт.

29

87412311

TIP

Replaceable, Includes Ref. 28

1шт.
