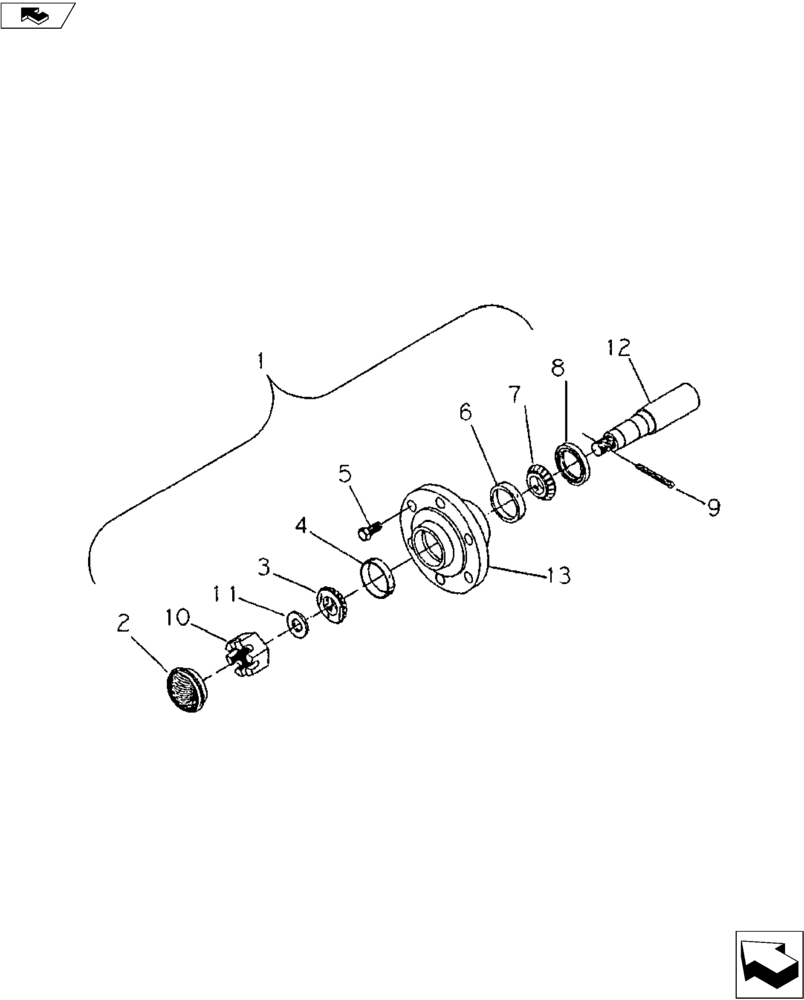

Запчасти Case IH 527B (44.100.01) - HUBS & SPINDLES (44) - WHEELS

1

28163311

HUB ASSY.

633-4 Bolt, 633 1.5 IN DIA Includes Ref. 2-8

1шт.

1

28178300

HUB ASSY.

783-6 Bolt, Includes Ref. 2-8

1шт.

2

28463300

HUB CAP

1шт.

2

28477700

HUB CAP

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

0.75" Bore - Timken #LM11949

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore - Timken #LM67048

1шт.

4

651814R1

BEARING CUP

1.78" O.D. - Timken #LM11910

1шт.

4

651817R1

BEARING CUP

2.33" O.D. - Timken #LM67010

1шт.

5

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF Gd. 5

4шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" x 1" NF Wheel Gd. 5

6шт.

6

651817R1

BEARING CUP

2.33" O.D. - Timken #LM67010

1шт.

6

663558R1

BEARING CUP

2.89" O.D. - Timken #LM501310

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore - Timken #LM67048

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62" Bore - Timken #LM501349

1шт.

8

126621C1

SEAL

1.50" I.D. x 2.33" O.D. CR #1497

1шт.

8

145769C91

OIL SEAL

3.00" O.D. x 1.875" I.D. CR #18823

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

NF

1шт.

11

17413001

WASHER

3/4" Special Heavy

1шт.

11

17915000

WASHER

7/8" Special Heavy

1шт.

12

28363331

SPINDLE

1шт.

12

28378305

SPINDLE

783 2 DIA STR. SPINDLE

1шт.

13

28263340

HUB

633 With Cups

1шт.

13

28278300

HUB

783 With Cups

1шт.

14

28063331

HUB ASSY.

633 Spindle Assembly (Not Shown)

1шт.

14

28078305

HUB ASSY.

634 Spindle Assembly (Not Shown)

1шт.
