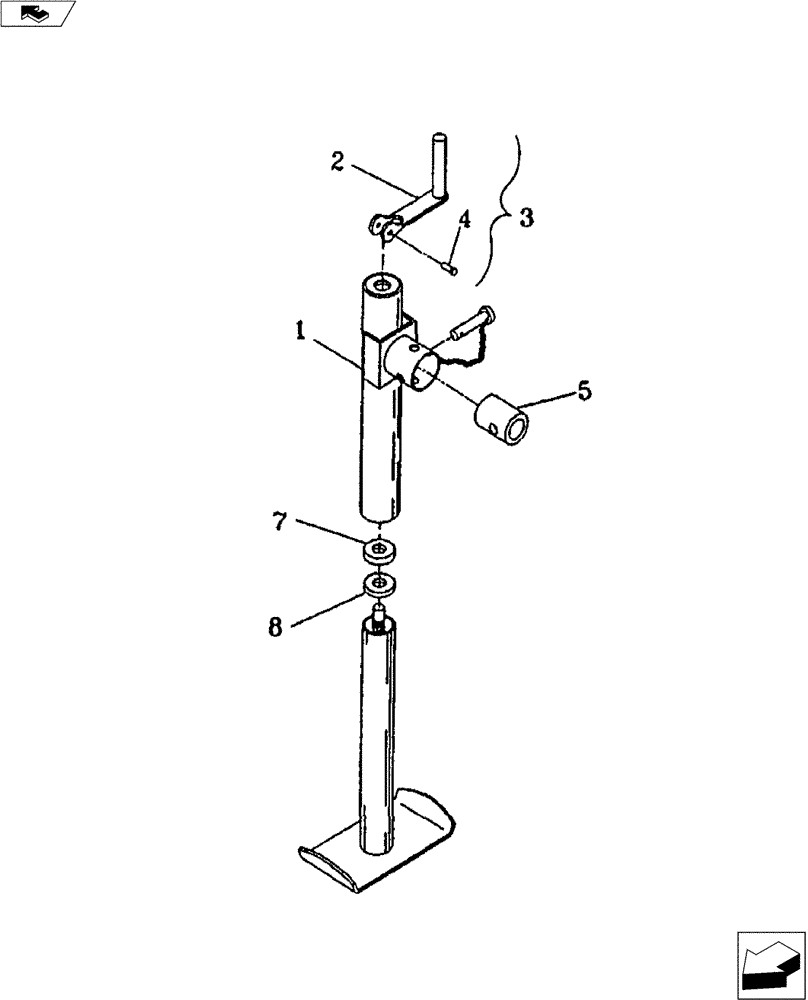

Запчасти Case IH 527B (39.110.01) - JACK (39) - FRAMES AND BALLASTING

1

32230000

JACK

5000 lb

1шт.

2

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

3

32230100

PACKAGE

Handle Replacement, Includes Ref. 2, 4, and 9)

1шт.

4

NSS

NOT SOLD SEPARAT

1/4" x 1" NC Std. Hex Bolt

1шт.

5

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket

1шт.

7

NSS

NOT SOLD SEPARAT

Thrust Bearing

1шт.

8

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

9

NSS

NOT SOLD SEPARAT

1/4" Lock Nut (Not Shown)

1шт.
