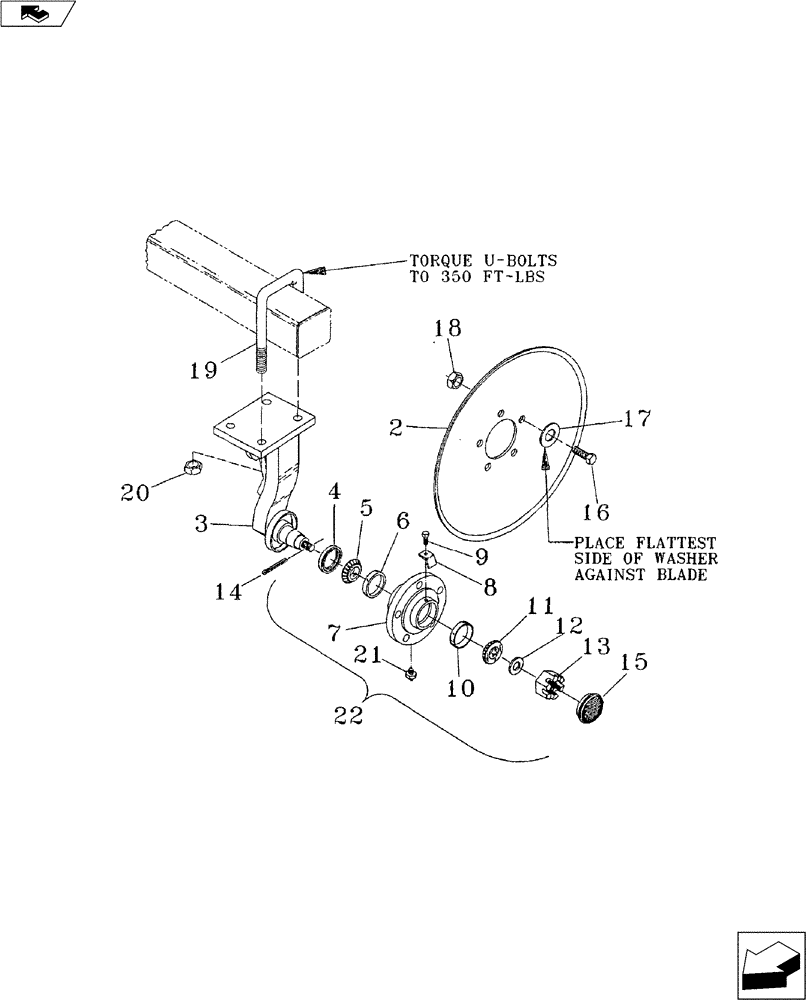

Запчасти Case IH 527B (39.100.02) - DISC MOUNT (39) - FRAMES AND BALLASTING

1

09971700

CENTRALIZER

Disc Mount (Not Shown)

1шт.

1

09971800

MOUNTING PARTS

Disc RH (Not Shown)

1шт.

1

09971900

MOUNTING PARTS

Disc LH (Not Shown)

1шт.

2

443631A1

PLOW DISC

20" Blade

1шт.

3

09970701

FURROW WHEEL

Spindle Arm Weld - Center

1шт.

3

09970801

FURROW WHEEL

Spindle Arm Weld - RH

1шт.

3

09970901

FURROW WHEEL

Spindle Arm Weld - LH

1шт.

4

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

3.00" O.D. - #CR538816*

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62" - Timken #LM501349

1шт.

6

663558R1

BEARING CUP

2.89" O.D. - Timken #LM501310

1шт.

7

28705012

HUB ASSY.

Disc W/Cups

1шт.

8

09970770

RETAINER

Dust Cap

1шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

NC Gd. 5

1шт.

10

651817R1

BEARING CUP

2.33" O.D. Timken #LM67010

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Timken #LM67048

1шт.

12

17915000

WASHER

7/8" Heavy

1шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

NF Hex.

1шт.

14

432-1032

COTTER PIN,5/32" x 2"

1шт.

15

28490001

HUB CAP

Dust

1шт.

16

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2" NC Gd. 8

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16"x1-3/8"x 0.179"

5шт.

18

86992215

LOCK NUT,1/2"-13, GC

NC Stover

5шт.

19

16312230

U-BOLT

BOLT "U" 3/4" x 4" Square Gd. 7

2шт.

20

425-1012

NUT,3/4"-10, G5

NC Hex. Gd. 5

4шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

28 NPT

1шт.

22

28199902

HUB ASSY.

Complete, Includes Ref. 4- 15

1шт.
