(35.100.01) - MAIN FRAME HYDRAULICS

Запчасти Case IH 527B (35.100.01) - MAIN FRAME HYDRAULICS (35) - HYDRAULIC SYSTEMS

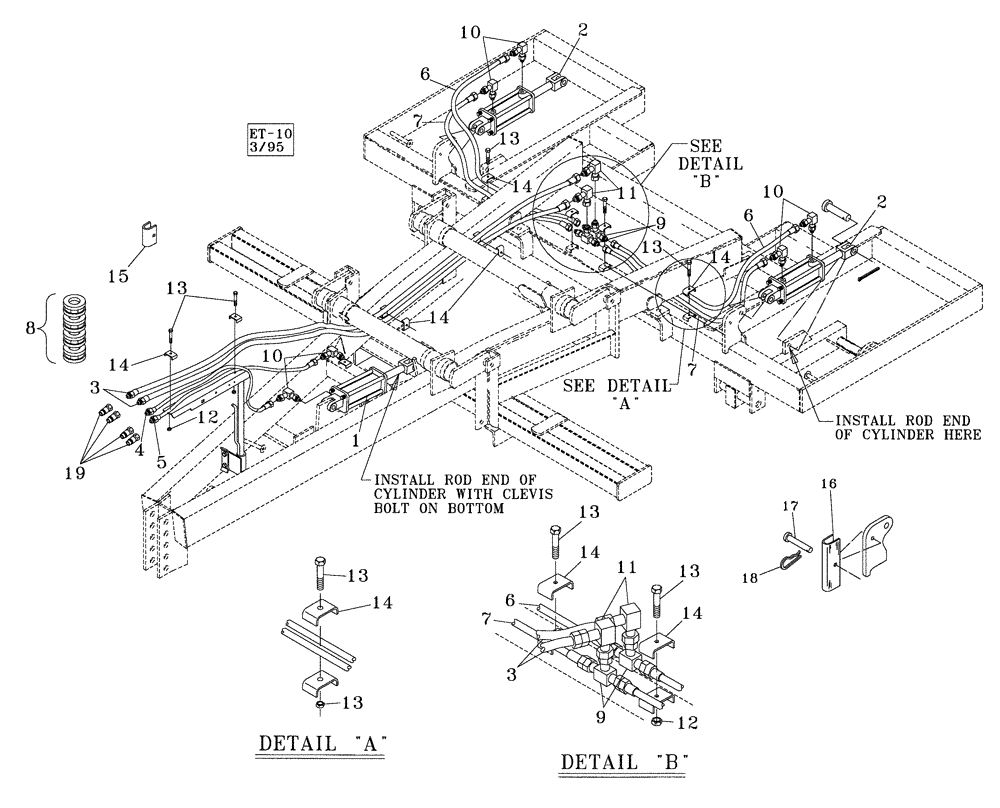

Схема запчастей Case IH 527B - (35.100.01) - MAIN FRAME HYDRAULICS (35) - HYDRAULIC SYSTEMS
12
14
13
5
13
17
16
18
6
3
4
11
3
13
14
14
14
13
10
15
9
13
10
7
7
1
9
2
11
6
14
10
6
8
14
2
13
7
19
14
12
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25330081

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3 x 8, 3000 PSI

1шт.

2

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, 3000 PSI

1шт.

2

25330101R

REMAN-HYD CYLINDER

527B CASE IH ECOLO-TIGER® MULCH CHISEL, 3000 PSI

1шт.

2

25330101C

CORE-HYD CYLINDER

Return Number

1шт.

3

25610901

HYDRAULIC HOSE

1/2 x 196

2шт.

4

25610712

HYDRAULIC HOSE

3/8 x 110

1шт.

5

25610713

HYDRAULIC HOSE

3/8 x 118

1шт.

6

25600651

HYDRAULIC HOSE,0.38" ID x 52.00", SAE 100R17

2шт.

7

25600635

HYDRAULIC HOSE,0.38" ID x 48.00", SAE 100R17

2шт.

8

25890100

KIT

Stroke Kit, 1-1/4"

4шт.

9

218-594

TEE,3/4"-16, 37 Degree

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

6шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

12

425-106

NUT,3/8"-16, Cl 5

9шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

14

06200125

HOSE CLAMP

9шт.

15

09650207

STAY

Disc Cylinder, Black

1шт.

16

04632700

STAY

Cylinder, 9-3/4

2шт.

17

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, Clevis

3шт.

18

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

3шт.

19

25705041

COUPLING

Male ISO, 3/4 SAEF, Hydraulic

4шт.
