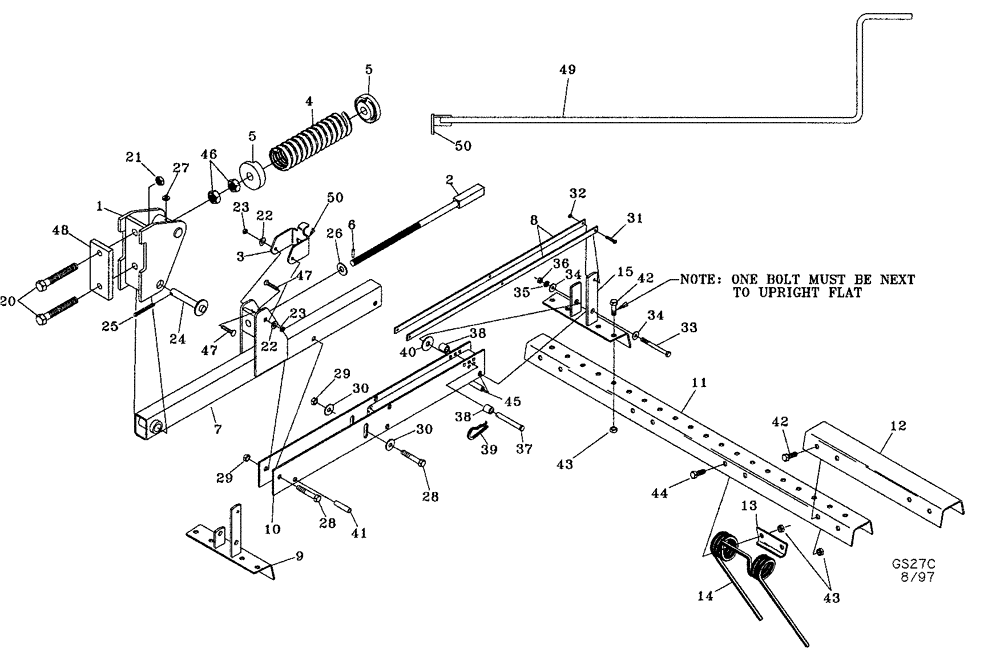

Запчасти Case IH 527B (75.200.08) - COIL TINE HARROW (75) - SOIL PREPARATION

1

06251376

BRACKET

Mounting

2шт.

2

06251351

THREADED ROD

7/8

2шт.

2

06250347

THREADED ROD

3/4, Used On Earlier Models

2шт.

3

06251316

LOCKING DEVICE

2шт.

4

24143902

COMPRESSION SPRING

2шт.

5

20090105

SPRING SEAT

Spring Holder

2шт.

6

38-1816

LOCK PIN,1/8" x 1", Slotted

2шт.

7

06251341

TUBE

2шт.

8

06250358

LINK

Tine

4шт.

9

06250150

CHANNEL

Mount

4шт.

10

06251331

LINKAGE

Pivot

2шт.

11

06250061

CHANNEL

6 Tine, 83 Inch

3шт.

12

06250180

CHANNEL

Splice

1шт.

13

06250200

CLAMP

1шт.

14

33404416

TINE

Coil

1шт.

15

06250155

CHANNEL

Rear, Mount

2шт.

20

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

21

280375

NUT,3/4"-10, GC

4шт.

22

80681

LOCK WASHER,5/16"

2шт.

23

86992212

NUT

5/16, NC, Stover

2шт.

24

14816331

CLEVIS PIN

1 x 4-1/8, EL

2шт.

25

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

2шт.

26

17614030

BUSHING

7/8, Machine

2шт.

27

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

28

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

30

495-21056

WASHER,1/2"

Flat

4шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

32

87039402

NUT,3/8"-16, GB

6шт.

33

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

6шт.

34

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

12шт.

37

14810290

HEADED PIN

5/8 x 4.4 EL, Clevis

2шт.

38

06250210

BUSHING

Stop

4шт.

39

14720411

COTTER PIN

1/8 x 2, Hair

2шт.

40

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

5/8, Flat

6шт.

41

06250170

SPACER

Pivot

4шт.

42

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

43

86992215

LOCK NUT,1/2"-13, GC

1шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

45

06250190

BUSHING

Pivot

2шт.

46

425-1014

NUT,7/8"-9, G5

4шт.

47

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

48

06250334

SPACER

2шт.

49

06251395

CRANK

Adjustment

1шт.

50

18534332

DECAL

Raise

2шт.
