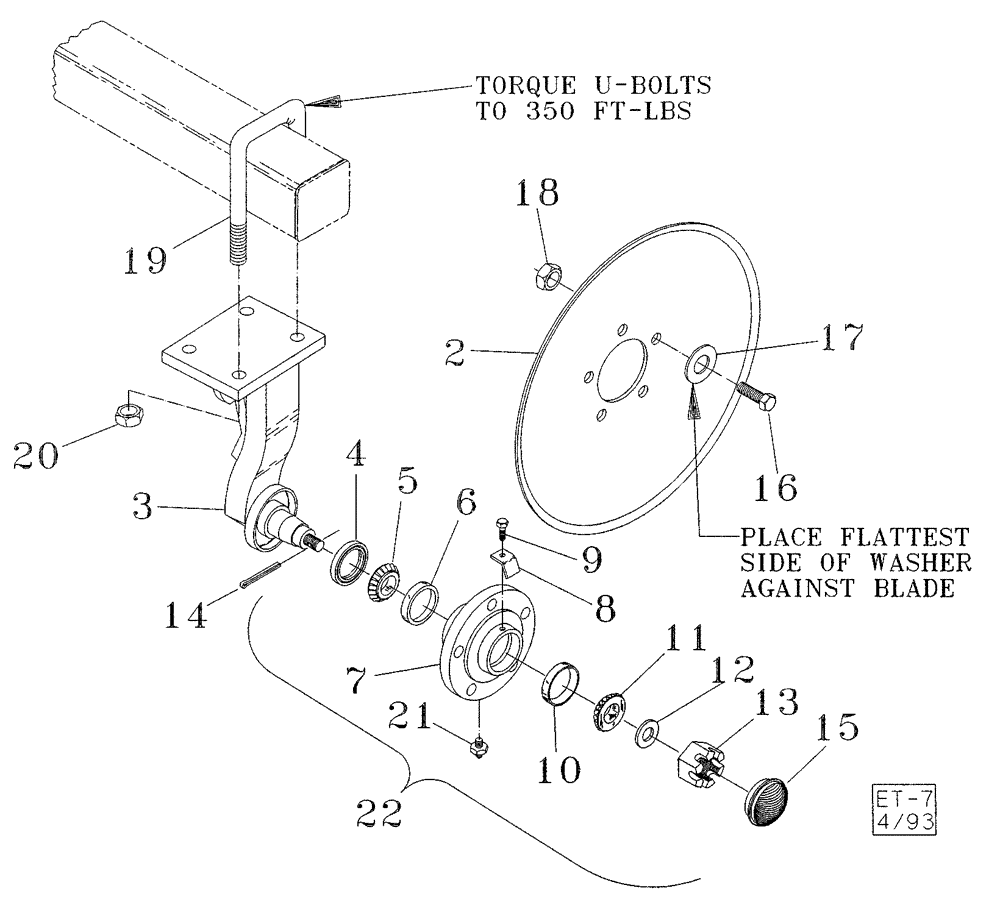

Запчасти Case IH 527B (75.200.03) - DISC MOUNT (75) - SOIL PREPARATION

1

09971700

CENTRALIZER

Disc Mount, Inc. 3 - 15, & 21

1шт.

1

09971800

MOUNTING PARTS

RH, Inc. 3 - 15, & 21

1шт.

1

09971900

MOUNTING PARTS

LH, Inc. 3 - 15 & 21

1шт.

2

87443007

PLOW DISC

Blade, 20"

1шт.

3

09970701

FURROW WHEEL

Spindle Arm, Center

1шт.

3

09970801

FURROW WHEEL

Spindle Arm, RH

1шт.

3

09970901

FURROW WHEEL

Spindle Arm, LH

1шт.

4

21932120

SEAL,53.98mm ID x 76.2mm OD x 6.35mm Thk

3.00" OD, CR538816

1шт.

In An Emergency Chicago Rawhide 18823 May Be Used

1шт.

5

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62", Timken LM501349

1шт.

6

663558R1

BEARING CUP

2.89" OD, Timken LM501310

1шт.

7

28705012

HUB ASSY.

Disc With Cups

1шт.

8

87541117

RETAINER,Dust Cap

1шт.

9

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

10

651817R1

BEARING CUP

2.33" OD, Timken LM67010

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25", Timken LM67048

1шт.

12

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

7/8", Heat Treated

2шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

14

432-1032

COTTER PIN,5/32" x 2"

1шт.

15

28490001

HUB CAP

1шт.

16

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

5шт.

17

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" x 1-3/8" x .179"

5шт.

18

86992215

LOCK NUT,1/2"-13, GC

Stover, NC

5шт.

19

87427185

U-BOLT

3/4" x 4", Square, Gd. 7

2шт.

20

425-1012

NUT,3/4"-10, G5

4шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

28199902

HUB ASSY.

Complete, Inc. 4 - 15

1шт.
