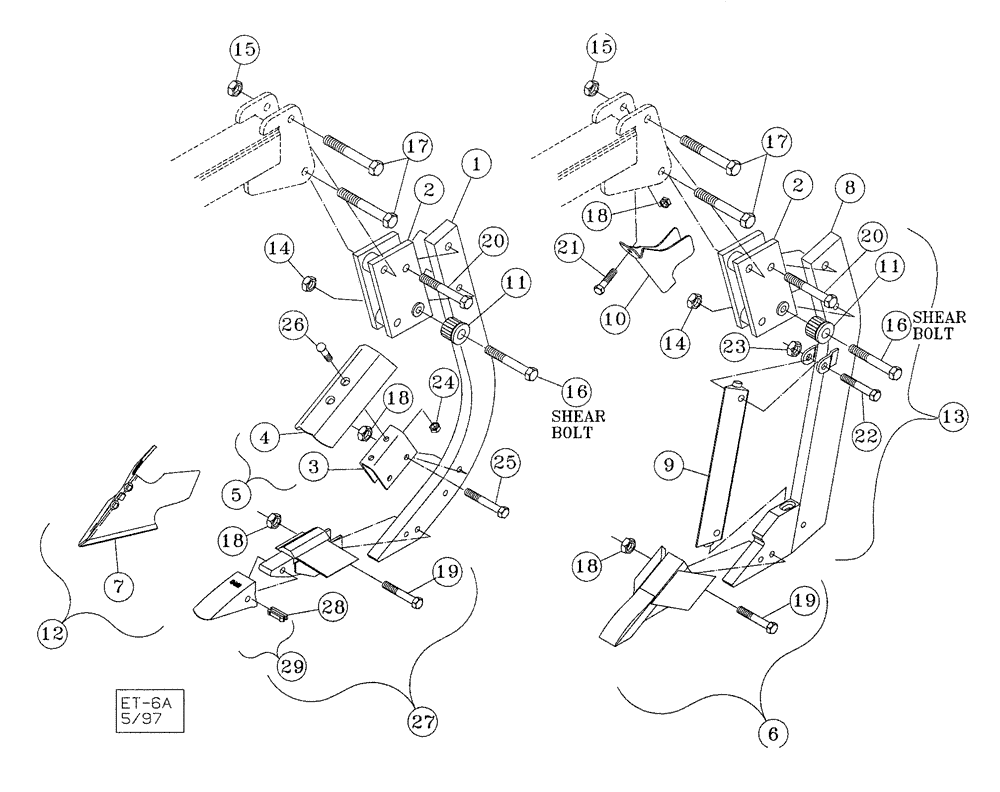

Запчасти Case IH 527B (75.200.02) - SHANKS (75) - SOIL PREPARATION

1

33020040

SHANK

Parabolic

1шт.

2

09651570

HOLDER

Holder, MRD And Parabolic

1шт.

3

09580750

HITCH BRACKET

Covering Attachement

1шт.

4

33310079

SHOVEL

4", Covering

1шт.

5

09580060

BRACKET

Parabolic Covering, Inc. 3 - 4 And Hardware

1шт.

6

87460075

POINT RIPPER SHANK

2", Parabolic With Hardware

1шт.

Does Not Include Hardware

1шт.

6

87460069

POINT RIPPER SHANK

5", Parabolic

1шт.

Does Not Include Hardware

1шт.

6

87460070

POINT RIPPER SHANK

7", Assembly

1шт.

Does Not Include Hardware

1шт.

7

33310080

LANDSIDE

6", Wide Furrower

1шт.

8

09581750

SHANK

MRD

1шт.

9

09581760

WEDGE

MRD, Shin

1шт.

10

09651575

BRACKET

MRD, Stalk

1шт.

11

44006510

BUSHING

5/8", Serrated

1шт.

12

09650060

PLOW

6", Covering, Inc. 6, 10, And Hardware

1шт.

13

09581705

SHANK

MRD Assembly, Inc. 8 - 9, 23, & 25

1шт.

14

425-1010

NUT,5/8"-11, G5

1шт.

15

425-1012

NUT,3/4"-10, G5

3шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

17

16901205

BOLT

3/4" x 4-3/4", UNC A325

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

1шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

20

16901215

BOLT

3/4" x 3-3/4", NC, A325

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

22

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

23

86992215

LOCK NUT,1/2"-13, GC

1шт.

24

425-107

NUT,7/16"-14, G5

2шт.

25

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

26

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

27

87460158

POINT RIPPER SHANK

Replaceable Assembly, 7"

1шт.

Does Not Include Hardware

1шт.

28

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8", Flex

1шт.

29

87412311

TIP

Replaceable, Inc. 28

1шт.

30

33020046

SHANK

No-Til, Not Shown

1шт.

31

09651580

SPRING BOX

Holder, Not Shown

1шт.
