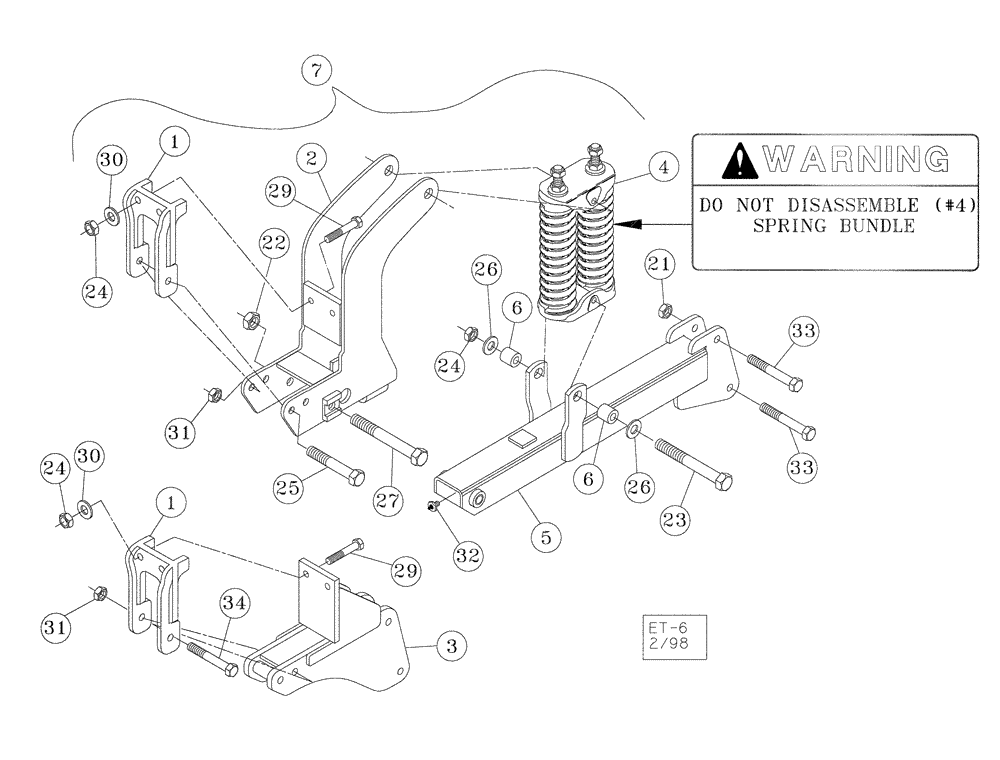

Запчасти Case IH 527B (75.200.01) - AUTORESET SHANK ASSEMBLY (75) - SOIL PREPARATION

1

09651540

MOUNTING CLIP

Quick

1шт.

2

09651518

MOUNTING PARTS

Auto Reset

1шт.

3

09651560

MOUNTING PARTS

Shear Bolt

1шт.

4

09651530

COIL SPRING

Assembly

1шт.

5

09651520

BEAM ASSY.

Auto Reset

1шт.

6

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

7

87443454

BRACKET

Auto Reset Assembly

1шт.

21

425-1012

NUT,3/4"-10, G5

1шт.

22

86992218

LOCK NUT

LOCK 7/8", NC, Stover

1шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2", NC, Hex., Gd. 5

2шт.

24

86992216

NUT

5/8", NC, Stover

5шт.

25

16901226

SPECIAL BOLT

3/4" x 6-7/8", Hex., Gd. 5

1шт.

26

495-21069

WASHER,5/8"

Standard, ZP

4шт.

27

16901435

BOLT

7/8" x 7-3/4", NC, Hex., Gd 5

1шт.

29

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

NC

2шт.

30

17411012

WASHER

SPECIAL

2шт.

31

86992217

NUT

NC

1шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

NPT

1шт.

33

16901215

BOLT

3/4" x 3-3/4", A325, Hex., Gd 5

1шт.

34

16901217

BOLT

3/4" x 6", NC, Special, Hex.

1шт.
