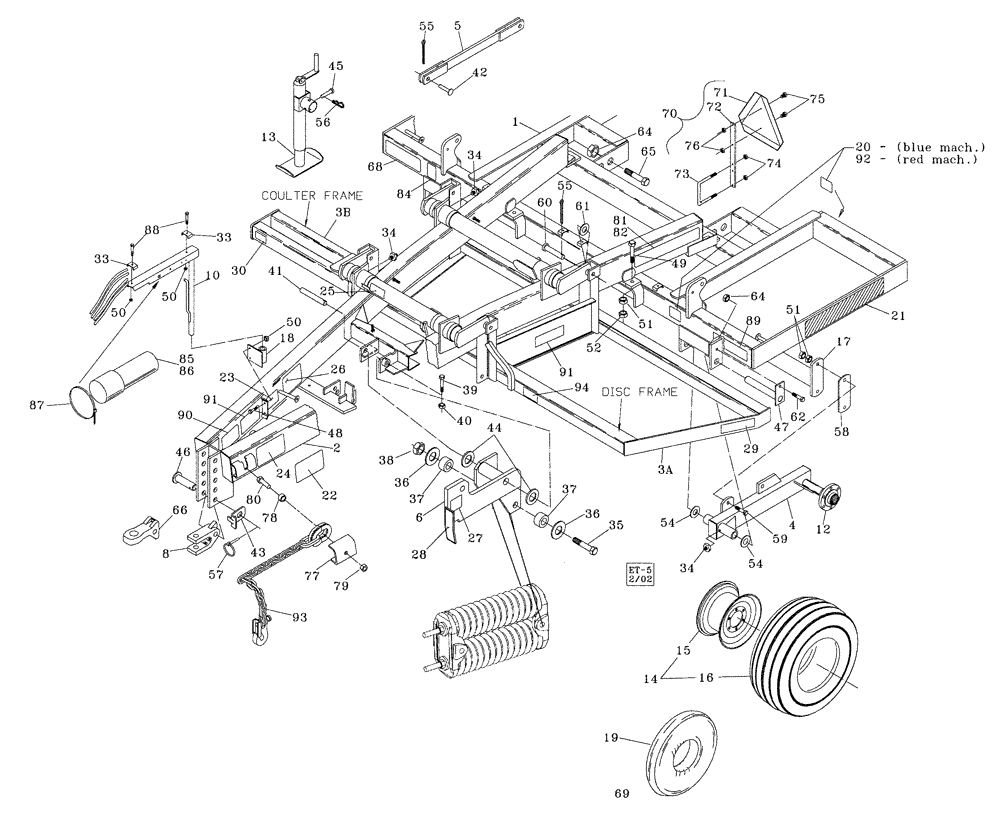

Запчасти Case IH 527B (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

09650800W

FRAME ASSY

Main

1шт.

2

09650900W

FRAME ASSY

Pull

1шт.

3a

09650400W

FRAME

Disc

1шт.

3b

09650510W

SUPPORT

Coulter

1шт.

4

09650350

AXLE

Spindle, RH

1шт.

4

09650360

AXLE

Spindle, LH

1шт.

5

84401370

LINKAGE

Lift

1шт.

6

09651000

LINKAGE

1шт.

8

20092051

CLEVIS

Double

1шт.

10

05302150

STAND

Swinging Hose

1шт.

12

28178300

HUB ASSY.

783, 6-Bolt

2шт.

13

32230000

JACK

5000 lb

1шт.

14

10010254

WHEEL ASSY.

12.5 x 15, 8-Ply, Tubeless, Silver

2шт.

14

10010253

LAND WHEEL

12.5 x 15, 8-Ply, Tube, Silver

2шт.

15

10110254

WHEEL ASSY.

10 x 15, 6-Hole, Silver

2шт.

16

NSS

NOT SOLD SEPARAT

Tire, 12.5 x 15, 8-Ply, Tubeless

2шт.

17

09650330

BRACKET

Torque Tube

1шт.

18

09983458

BAR ASSY.

Hose Boom

1шт.

19

NSS

NOT SOLD SEPARAT

Tube, For 12.5L x 15 Tire

2шт.

22

18534107

DECAL

Patent

1шт.

23

18534134

DECAL

Caution

1шт.

24

18534165

DECAL

Level Frame

1шт.

25

18534189

DECAL

Depth Indicator

1шт.

26

18534228

DECAL

Caution

1шт.

27

18534241

DECAL

Important

1шт.

28

18534240

DECAL

Red/Green

1шт.

29

311864A1

REFLECTOR

Amber

2шт.

30

18534243

REFLECTOR

Amber, Coulter Frame Only

2шт.

33

06200125

HOSE CLAMP

2шт.

34

219-86

LUBE NIPPLE,1/8" NPTF

Self Tapping

11шт.

35

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, Hex., Gd 5, ZP

2шт.

37

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Hardened

4шт.

39

413-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

40

86992214

LOCK NUT

7/16", NC, Stover

1шт.

41

14892066

PIN

1-1/4" x 8-1/2"

1шт.

42

14816201

SMALL PIN

1" x 2-3/32"

2шт.

43

09650950

HITCH PIN

Klik, Protector

1шт.

44

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", Machined

4шт.

45

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

46

14820447

PIN

1-1/4" x 5-1/2", Pin

1шт.

47

09576180

HITCH PIN

2шт.

48

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

49

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

6шт.

50

86992213

NUT

3/8", NC, Stover

1шт.

51

425-1014

NUT,7/8"-9, G5

14шт.

52

425-1414

JAM NUT,Jam, 7/8"-9, G5

6шт.

54

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" x 14 Ga., Machined

4шт.

55

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

56

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

1шт.

57

A30338

PIN

1/4" x 1-3/4", Klik

1шт.

58

09650333

SHIM,.134" Thk

1шт.

59

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

4шт.

60

14816382

SMALL PIN

1" x 3-3/4"

4шт.

61

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

Machinery, 1"

4шт.

62

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

63

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

64

425-1010

NUT,5/8"-11, G5

6шт.

65

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

66

20092071

ADJUSTABLE CLEVIS

Single, Optional

1шт.

67

16510720

ROD

Threaded, 5/8"

2шт.

68

18534307

DECAL

Helping Plants Thrive

1шт.

69

09650960

SPRING BOX

Relief Assembly

1шт.

70

18584000

WARNING SIGN

SMV, Inc. 71 - 76

1шт.

71

311860A1

EMBLEM

SMV

1шт.

72

06000099

BRACE

SMV

1шт.

73

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

1шт.

74

86992213

NUT

3/8", NC, Stover

2шт.

75

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

76

86992211

NUT

1/4", NC, Stover

2шт.

77

04681210

BRACKET

1шт.

78

04681211

BUSHING

1шт.

79

86992219

LOCK NUT

1", NC, Stover

1шт.

80

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

81

87710275

DECAL

527B, Lh, Red

1шт.

82

87710274

DECAL

527B, Rh, Red

1шт.

85

30026030

TUBE

Operator's Manual

1шт.

87

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

88

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

88

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

90

18534277

DECAL

Stored Energy

1шт.

91

18534333

DANGER DECAL

Pinch Points

1шт.

92

87594280

DECAL

Case IH

1шт.

93

87393082

CHAIN

20,000 LB, Safety

1шт.

94

18534223

DECAL

Torque

1шт.
