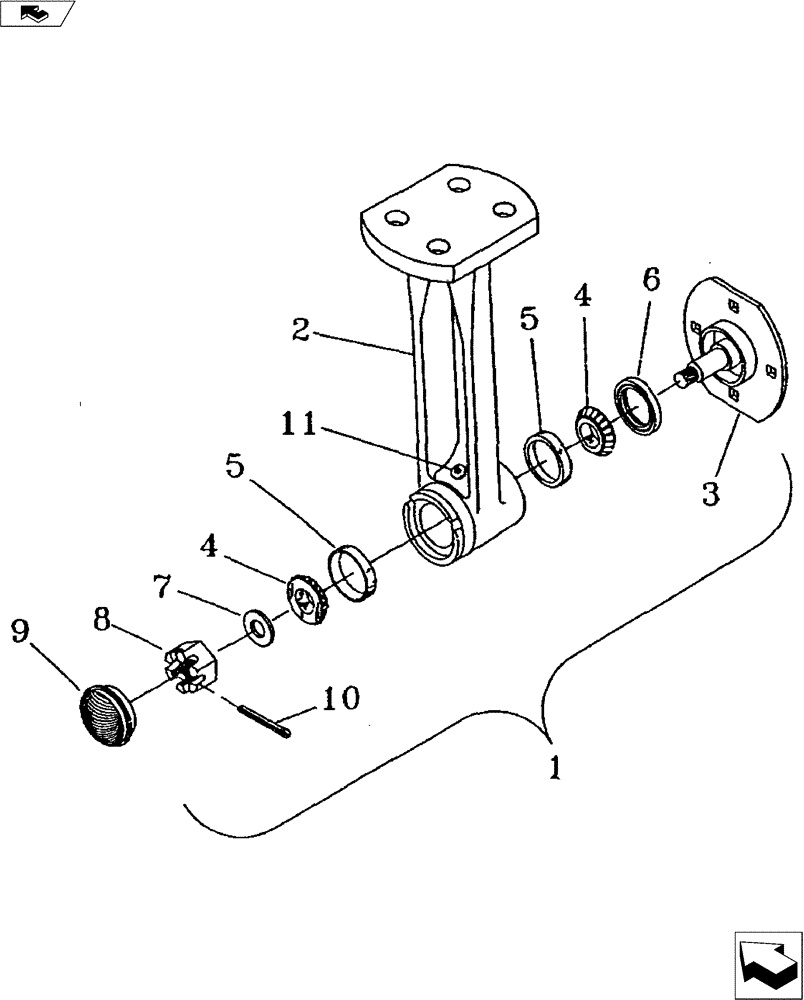

Запчасти Case IH 527 (44.100.02) - HUB & SPINDLES (44) - WHEELS

1

09103101

HUB

Spindle Mount Assy. Complete

1шт.

2

09193150

HUB ASSY.

Disc Spindle Casting W/Brg. Cups

1шт.

3

09103120

DISC

Spindle

1шт.

4

21871000

BEARING CONE

1.00" Bore #L44643

2шт.

5

21881980

BEARING, CUP

1.980" O.D. #L44610

2шт.

6

21931375

SEAL

1.375" Bore CR533468

1шт.

7

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" Flat H.T.

1шт.

8

425-1312

SLOTTED NUT,3/4"-16, G5

NF

1шт.

9

28420021

CAP

Grease

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NPT

1шт.
