Запчасти Case IH 527 (35.100.07) - HYDRAULIC LEVELR BAR (35) - HYDRAULIC SYSTEMS

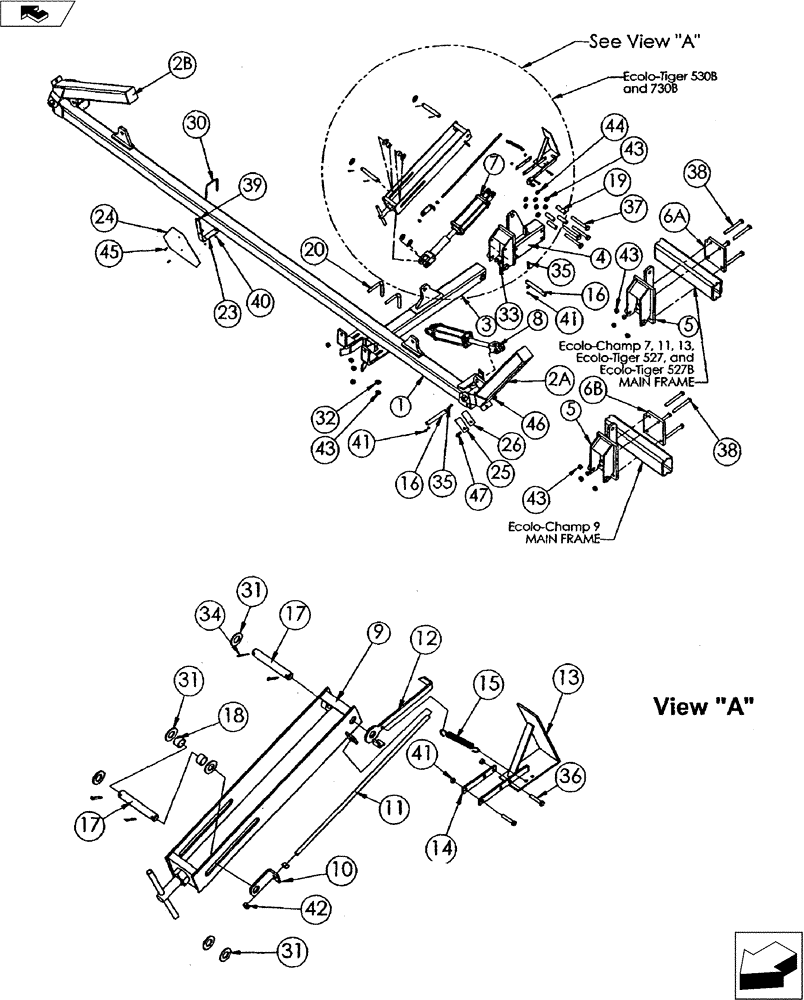

Схема запчастей Case IH 527 - (35.100.07) - HYDRAULIC LEVELR BAR (35) - HYDRAULIC SYSTEMS
7
26
35
19
2b
38
39
18
3
31
16
6b
12
41
30
17
32
43
23
2a
45
6a
36
43
38
35
15
37
41
42
20
16
46
25
10
34
1
11
9
47
14
4
40
17
5
31
5
33
31
43
8
24
44
43
13
41

Артикул

Название

Примечание

Количество

1

09100700

BAR ASSY.

Rear leveler Bar - 189 Long, Ecolo-Champ 11 Shank

1шт.

1

09100500

BAR ASSY.

Rear Leveler Bar - 129-1/2" Long, Ecolo-Champ 7 Shank

1шт.

1

09102400

BAR ASSY.

Rear Leveler Bar -19-1/2" Long, Ecolo-Champ 9 Shank, Ecolo-Tiger 527,527B & 530B

1шт.

1

09102540

BAR ASSY.

Hydraulic Fold Leveler Bar, Ecolo-Champ 13 Shank, Ecolo-Tiger 730B

1шт.

2a

09102620

BAR ASSY.

Hydraulic Leveler Wing RH - Used With, 09102540 Hydraulic Fold Bar Only

2шт.

2b

09102630

BAR ASSY.

Hydraulic Leveler Wing LH - Used With, 09102540 Hydraulic Fold Bar Only

1шт.

3

09102985

ARM ASSY.

Pivot Weld

2шт.

4

09102910

ARM

Support For Ecolo-Tlger 530B/730B

2шт.

5

09102970

SUPPORT ASSY.

Arm For, Ecolo-Champlecolo-Tiger 527 & 527B

2шт.

6a

09102942

WEAR PLATE

Leveler Mount For, Ecolo-Champ 7,11,13 and, Ecolo-Tiger 527 & 527B

2шт.

6b

09102938

WEAR PLATE

Leveler Mounting Bracket For Ecolo-Champ 9

2шт.

7

25330083

CYLINDER ASSY.

3" x 8" Main Lift Hyd., 3,000 P.S.I., (See Figure 75.200.03)

2шт.

8

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" Wing Lift 3,000 P.S.I., (See Figure 75.200.03)

2шт.

8

25330101R

REMAN-HYD CYLINDER

527 DMI ECOLO-TIGER®, Wing Lift, 527 DMI ECOLO-TIGER® - DISC LEVELER, Both SAE Ports (20-1/4" Closed), 3,000 P.S.I.

2шт.

8

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

9

429720A1

STOP

Cylinder

2шт.

10

09102939

BRACKET

Formed Flat

1шт.

11

09102956

ROD

1шт.

12

09102943

ARM

Depth Gauge

1шт.

13

09102941

GAUGE ASSY.

Depth Indicator

1шт.

14

09102958

PLATE

Strap

2шт.

15

24312000

COIL SPRING

Extension

2шт.

16

14891665

HITCH PIN

1" Dia.

4шт.

17

14891663

HITCH PIN

1" Dia. X 6" Long

4шт.

18

09102904

SPACER

4шт.

19

09102914

SPACER

8шт.

20

16512470

SPECIAL BOLT

3/4" x 5.69"

4шт.

23

09102965

BRACKET

SMV

1шт.

24

311860A1

EMBLEM

SMV

1шт.

25

09661455

SHIM

16 Ga.

1шт.

26

09661456

SHIM

11 Ga.

1шт.

30

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" X 4"

1шт.

31

495-11106

WASHER,1", SAE

12шт.

32

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" I.D., H.T.

4шт.

33

17616020

WASHER

1" x 14 Ga. Machinery Bushing

1шт.

34

432-1624

COTTER PIN,1/4" x 1 1/2"

8шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Z.P.

2шт.

36

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

37

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

38

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

8шт.

39

280129

NUT,1/4"-20

2шт.

40

231-4246

LOCK NUT,3/8"-16, GB

2шт.

41

425-106

NUT,3/8"-16, Cl 5

12шт.

42

425-108

NUT,1/2" - 13, Gr 5

4шт.

43

425-1012

NUT,3/4"-10, G5

16шт.

44

425-1412

JAM NUT,Jam, 3/4"-10, G5

8шт.

45

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

46

231-42410

LOCK NUT,5/8"-11, GB

2шт.

47

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

Выбрано товаров: 49
