Запчасти Case IH 527 (35.100.06) - DISC LEVELR HYDRAULICS (35) - HYDRAULIC SYSTEMS

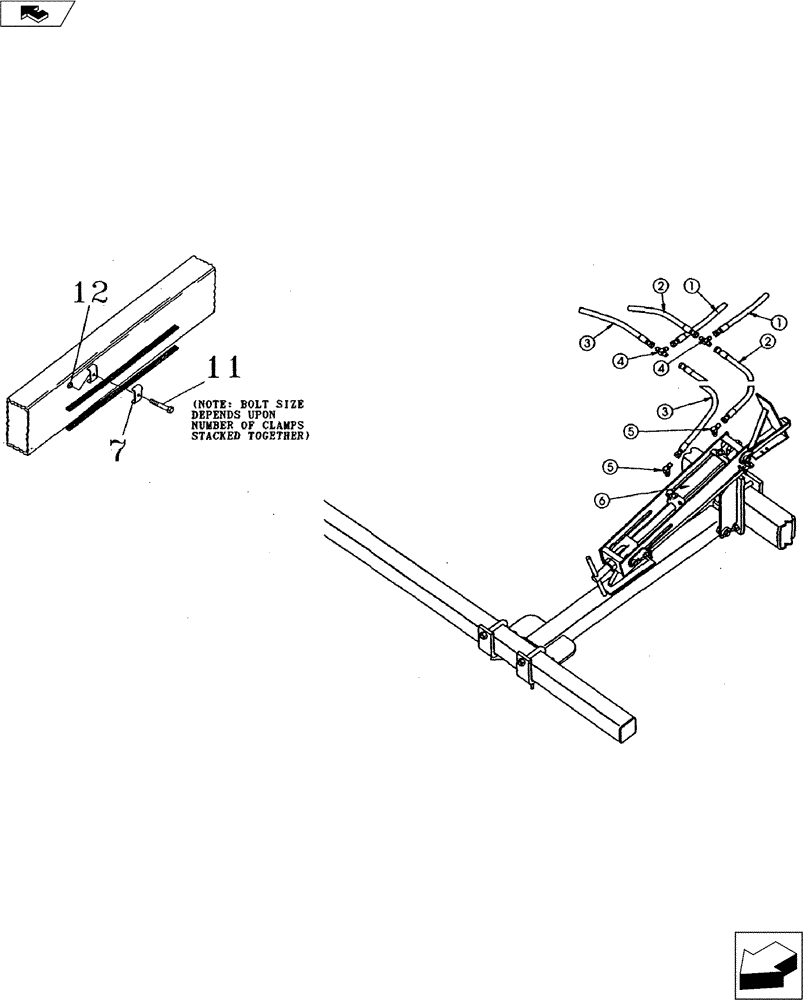

Схема запчастей Case IH 527 - (35.100.06) - DISC LEVELR HYDRAULICS (35) - HYDRAULIC SYSTEMS
11
4
2
1
3
3
7
12
2
1
5
4
5
6

Артикул

Название

Примечание

Количество

1

25610700

HYDRAULIC HOSE

3/8" Hydraulic Hose x 280" Long, (Ecolo-Tiger 530B)

2шт.

1

25610720

HYDRAULIC HOSE

3/8" Hydraulic Hose x 192" Long, ( Ecolo-Tiger 527, 5278 & Ecolo-champ 7.9, & 11 Shank)

2шт.

2

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

(Ecolo-Tiger 527,5278 & Ecoio-Champ 7 & 9 Shank)

2шт.

2

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

(Ecolo-Tiger 5308)

2шт.

2

25600671

HYDRAULIC HOSE,0.38" ID x 138.00", SAE 100R17

(Ecolo-Champ 11 Shank)

2шт.

3

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

(Ecolo-Tiger 527 & 5278)

2шт.

3

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

(Ecolo-Tiger 530B)

2шт.

3

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

(Ecolo-Champ 7 & 9 Shank)

2шт.

3

25600814

HYDRAULIC HOSE

3/8" Hydraulic Hose x 148" Long, (Ecolo-Champ 11 Shank)

2шт.

4

281-594

3/4"-14 JICM

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adapter

4шт.

6

25330083

CYLINDER ASSY.

3" x 8" Hydraulic Cylinder 3,000 P.S.I., (See Figure 35.100.04)

2шт.

7

06200125

HOSE CLAMP

1шт.

8

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 24" Plastic (Not Shown)

1шт.

9

30007006

PLASTIC RING

6" Hose Tie (Not Shown)

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(for 1 Clamp)

1шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(for 2 Clamps)

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(for 3 Clamps)

1шт.

11

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(for 4 Clamps)

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 20
